Quick Details
-
Brand Name:
-
Yunyi
-
Model Number:
-
YD42 Series
-
Max. Current:
-
normal
-
Max. Working Pressure:
-
100MPA
-
Name:
-
Digital Electronic Smart Pump Controller Pressure Switch
-
Control range::
-
-0.1~0~100Mpa
-
Stability:
-
≤ 0.2% / year
-
Display:
-
4-digit LED display
-
Power supply range:
-
24V ± 20%
-
Load capacity:
-
<24V1.2A
-
Protection class:
-
IP65
-
Ambient temperature:
-
-30 ℃ ~ 70 ℃
-
Storage temperature:
-
-40 ℃ ~ 85 ℃
-
Control accuracy:
-
≤ ± 0.5% FS
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
normal
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Yunyi
-
Model Number:
-
YD42 Series
-
Max. Current:
-
normal
-
Max. Working Pressure:
-
100MPA
-
Name:
-
Digital Electronic Smart Pump Controller Pressure Switch
-
Control range::
-
-0.1~0~100Mpa
-
Stability:
-
≤ 0.2% / year
-
Display:
-
4-digit LED display
-
Power supply range:
-
24V ± 20%
-
Load capacity:
-
<24V1.2A
-
Protection class:
-
IP65
-
Ambient temperature:
-
-30 ℃ ~ 70 ℃
-
Storage temperature:
-
-40 ℃ ~ 85 ℃
-
Control accuracy:
-
≤ ± 0.5% FS
Description Digital Electronic Smart Pump Pressure Switch Controller
Digital Electronic Smart Pump Pressure Switch Controller is a pressure measurement, display, intelligent digital pressure measurement and control products output, integrated control. This product is a full electronic structure, use front-end with baffle filled hydraulic resistance type pressure sensor, the output signal is composed of high precision, low drift amplifier processing, into the high precision A/D converter, the digital signals into the microprocessor can processing, through processing the signal control switch, monitoring and control of the pressure control system. Digital Air Pressure Switch is flexible to use, simple operation, easy debugging, safe and reliable. Widely used in hydropower, tap water, petroleum, chemical, mechanical, hydraulic and other industries, the fluid medium pressure measurement display and control.

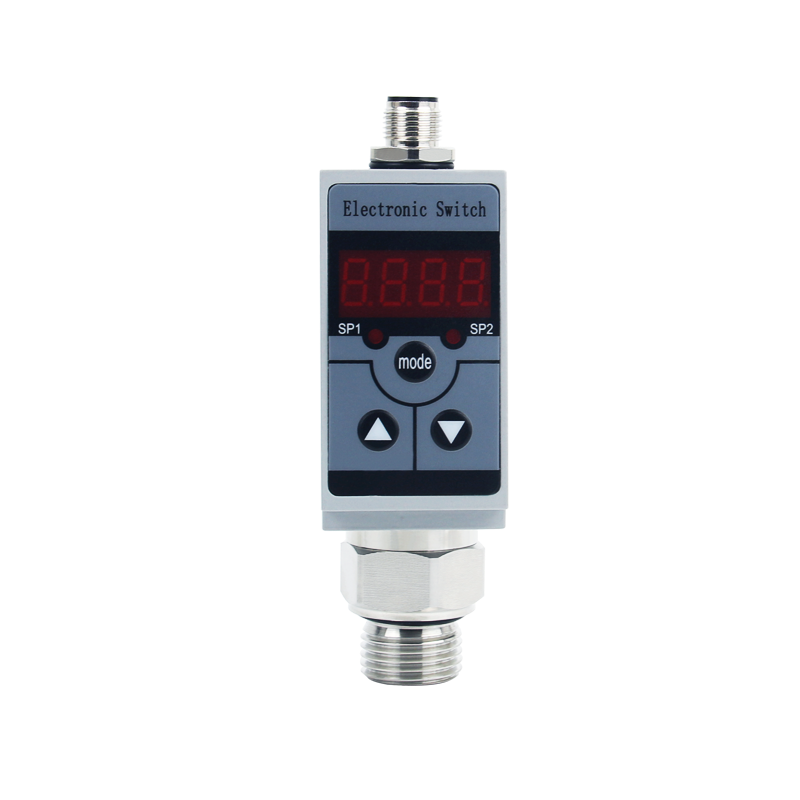

Detailed Images Digital Electronic Smart Pump Pressure Switch Controller
Specification Digital Electronic Smart Pump Pressure Switch Controller
|
Control range: -0.1~0~100Mpa Stability ≤ 0.2% / year Display 4-digit LED display Power supply range 24V ± 20% Load capacity <24V1.2A Protection class IP65 Ambient temperature -30 ℃ ~ 70 ℃ Storage temperature -40 ℃ ~ 85 ℃ Control accuracy ≤ ± 0.5% FS Display accuracy 0 to 80% The display range is -1999 to 9999 Maximum power consumption <3W Relative humidity ± 0.1% FS |
Features Digital Electronic Smart Pump Pressure Switch Controller
4-digit display of the current pressure value.
Pressure preset switch point and delay switching output
The switch quantity can be arbitrarily set from zero to full scale
The shell is equipped with node action light-emitting diode, easy to observe
button adjustment and on-site settings of various parameters, easy to operate.
2-way switch output, with a load capacity of 1.2A
Analog output (4 ~ 20mA)
Dimension Digital Electronic Smart Pump Pressure Switch Controller
