Quick Details
-
Application:
-
Fire Fighting Fire Safety Equipment
-
Type:
-
Fire Fighting Equipment
-
Agent:
-
ABC Dry Chemical Powder
-
Charge of extinguisher (kg):
-
4 ± 2%
-
Fire Rating (minimum):
-
2A, 55B C
-
Propellants:
-
Pure N2 (99.999%)
-
Operating pressure (bar):
-
12 ~ 14
-
Test pressure (bar):
-
25
-
Warranty:
-
2 years
Quick Details
-
Place of Origin:
-
Hai Duong, Vietnam
-
Brand Name:
-
Vinafoam
-
Model Number:
-
VP4
-
Application:
-
Fire Fighting Fire Safety Equipment
-
Type:
-
Fire Fighting Equipment
-
Agent:
-
ABC Dry Chemical Powder
-
Charge of extinguisher (kg):
-
4 ± 2%
-
Fire Rating (minimum):
-
2A, 55B C
-
Propellants:
-
Pure N2 (99.999%)
-
Operating pressure (bar):
-
12 ~ 14
-
Test pressure (bar):
-
25
-
Warranty:
-
2 years
Specification
|
TECHNICAL DATASHEET
|
|
|
|
||
|
FIRE RATING
|
2A 55B C
|
|
|
||
|
CHARGE OF EXTINGUISHER
|
4 kg ± 2%
|
|
|
||
|
BODY CONSTRUCTION
|
Technology Process
|
Full Deep Drawing
|
|
||
|
|
Outer painting
|
Polyester resin, minimum thickness 50mcr
|
|
||
|
|
Corrosion resistance
|
Minimum 480 hours according to ISO 9227:1990
|
|
||
|
|
Vibration resistance
|
40Hz-60Hz Amplitude: 0,25 mm ± 0,03 mm
|
|
||
|
DISCHARGE HOSE
|
Made of rubber plastic
|
Spray nozzle included
|
|
||
|
|
Discharge hose length
|
440 mm
|
|
||
|
EXTINGUISHING AGENT
|
ABC Dry Powder
|
|
|
||
|
PROPELLANTS
|
N2
|
High purity 99.999%
|
|
||
|
DISCHARGE TIME
|
18s
|
|
|
||
|
EFFECTIVE RANGE
|
5-7 m
|
|
|
||
|
TEST PRESSURE
|
25 bar
|
|
|
||
|
WORKING PRESSURE
|
12-14 bar
|
|
|
||
|
OPERATING TEMPERATURE
|
-10oC to 60oC
|
|
|
||
|
DIMENSIONS
|
Total Height
|
515 mm
|
|
||
|
|
Outer Diameter
|
140 mm
|
|
||
|
TOTAL WEIGHT
|
7,0 kg
|
|
|
||
|
PACKING SPECIFICATIONS
|
Standard Packing
|
In a compact, single-layer carton box
|
|
||
|
|
Box dimensions
|
L x W x H : 460 x 242 x 156 mm
|
|
||
|
|
Gross weight with box
|
7,5 kg
|
|
||
|
|
Pallet
|
64 boxes/pallet
|
|
||
|
|
Pallet size
|
CP3 type (1130 x 1130 mm)
|
|
||
|
|
Container 20ft
|
640 boxes/ 20ft
|
|
||
|
|
Container 40ft
|
1280 boxes/ 40ft
|
|
||
Product Description

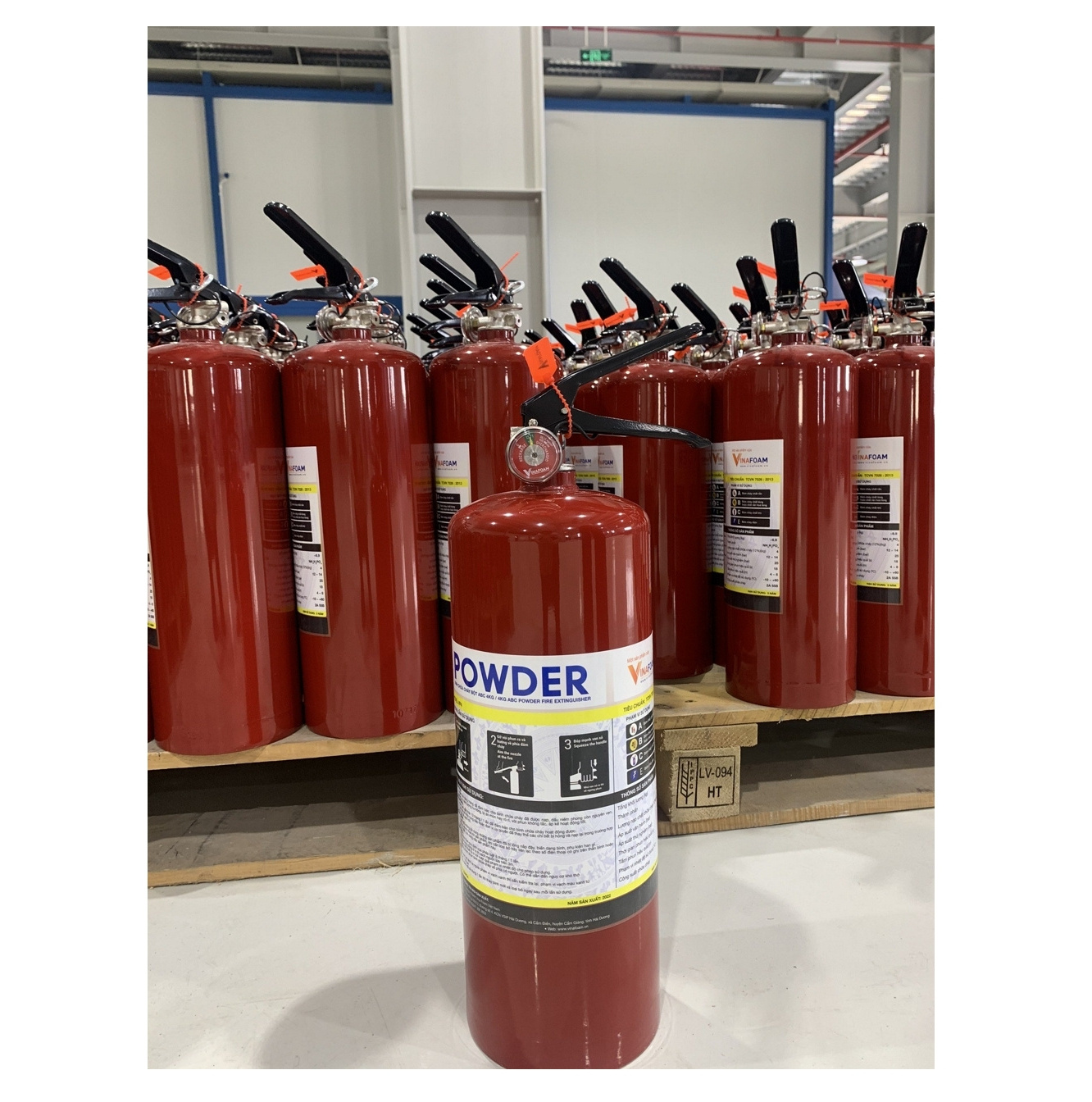

4KG ABC Dry Chemical Extinguisher for multiple purposes of fire distinguish (Class A – B – C –E)
Cylinder
is made of low carbon mild steel, ST14 type with three-point welding technique. The outer layer is electrostatically
painted.
Valve material
is chrome plated cast steel; valve fittings and stamping pressure gauge meet CE/European standards.
The discharge hose
is made of PVC plastic, ensuring excellent durability and flexibility over the operating temperature range. The
discharge hose is fitted with a complete spray nozzle.
The shelf life
is 5 years if the storage and handling follow the manufacturer's instructions.
The product warranty period
is 2 years according to the manufacturer's standards.
** Please scan the QR code on the label to get our best product maintenance service.
Packing & Delivery
We pack 1 piece/ carton box, 64 boxes/ pallet
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
