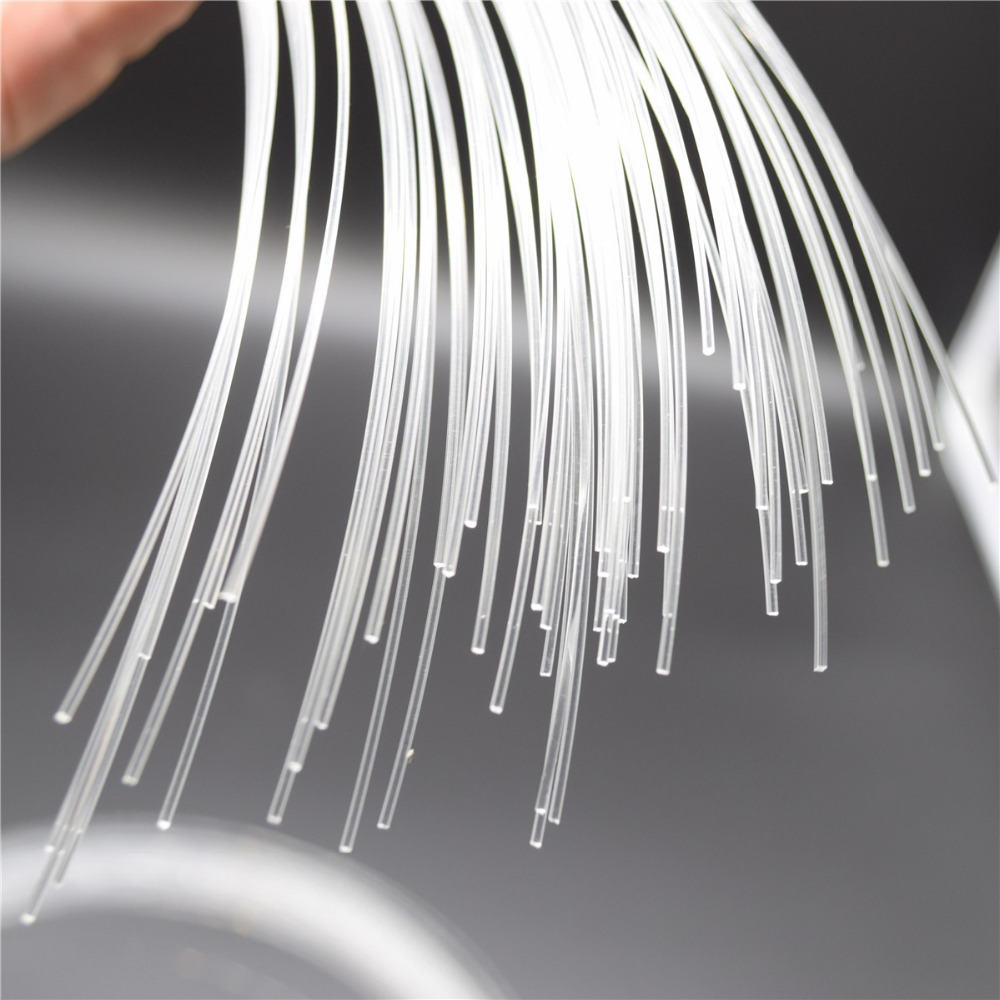

End Glow Optical Fiber consists of PMMA fiber core and fluororesin cladding. Fiber diameter ranges from 0.25mm to 3.0mm. With strong end glow performance, LF end light plastic optical fibers are widely used for decorative lighting such as star ceilings, chandeliers, logos, etc.
- Product Details
- {{item.text}}
Quick Details
-
Fiber type::
-
PMMA end glow fiber
-
Outer diameter:
-
0.75mm
-
Typical Attenuation:
-
<0.25dB/M
-
Fiber length:
-
2700m/spool
-
Weight:
-
2.8kgs/spool
-
Color:
-
clear
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HORICH
-
Model Number:
-
HRC-EG0.75
-
Fiber type::
-
PMMA end glow fiber
-
Outer diameter:
-
0.75mm
-
Typical Attenuation:
-
<0.25dB/M
-
Fiber length:
-
2700m/spool
-
Weight:
-
2.8kgs/spool
-
Color:
-
clear
Specification
|
Setting Information
|
|
|
|
Product name
|
0.75mm plastic optic fiber
|
|
|
Model
|
HRC-EG0.75
|
|
|
Core material
|
PMMA
|
|
|
Cladding material
|
Fluorinated Polymer
|
|
|
Inner diameter
|
735±45μm
|
|
|
Outer diameter
|
750±45μm
|
|
|
Spool length
|
2700m/spool
|
|
|
Color
|
Clear
|
|
|
weight
|
2.8kgs/spool
|
|
|
Part No.
|
Outside Diameter (mm)
|
Core material
|
Spool Length (m)
|
|
HRC-EG0.25
|
0.25
|
PMMA
|
12000
|
|
HRC-EG0.5
|
0.50
|
PMMA
|
6000
|
|
HRC-EG0.75
|
0.75
|
PMMA
|
2700
|
|
HRC-EG1.0
|
1.00
|
PMMA
|
1500
|
|
HRC-EG1.5
|
1.50
|
PMMA
|
700
|
|
HRC-EG2.0
|
2.00
|
PMMA
|
350
|
|
HRC-EG2.5
|
2.50
|
PMMA
|
250
|
|
HRC-EG3.0
|
3.00
|
PMMA
|
150
|
Product Application
