Quick Details
-
Brand Name:
-
TSXL
-
Model Number:
-
XLLS-II
-
Max. Current:
-
AC380V
-
Product name:
-
PULL CORD SWITCH
-
Adjustment range:
-
20°~ 30°
-
Action force:
-
70~ 100N
-
High-quality stainless steel cast:
-
Explosion-proof
-
detecting deflection:
-
safety switch
-
Ambient temperature:
-
-40℃~ 50℃
-
Relative humidity:
-
0 ~ 95%
-
Atmospheric pressure:
-
80 kPa ~110kPa
-
Electrical life:
-
>100,000times
-
Contact rating:
-
AC380V 5A DC24V 5A
-
Certification:
-
CE ISO
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
5A
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
TSXL
-
Model Number:
-
XLLS-II
-
Max. Current:
-
AC380V
-
Product name:
-
PULL CORD SWITCH
-
Adjustment range:
-
20°~ 30°
-
Action force:
-
70~ 100N
-
High-quality stainless steel cast:
-
Explosion-proof
-
detecting deflection:
-
safety switch
-
Ambient temperature:
-
-40℃~ 50℃
-
Relative humidity:
-
0 ~ 95%
-
Atmospheric pressure:
-
80 kPa ~110kPa
-
Electrical life:
-
>100,000times
-
Contact rating:
-
AC380V 5A DC24V 5A
-
Certification:
-
CE ISO
Recommend Products
Products Description

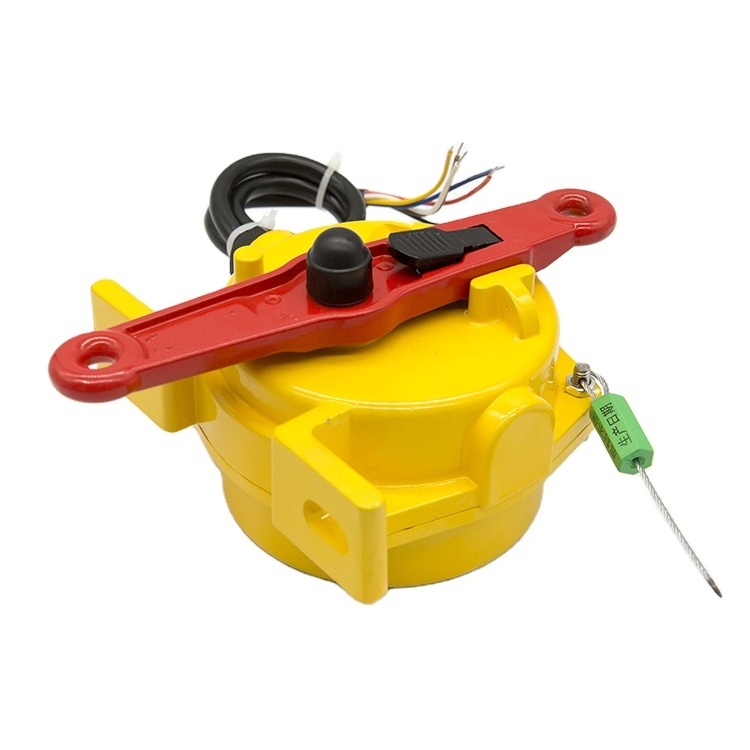

Pull cord switch is a protection switch used for emergency stop of belt conveyor. When an emergency occurs on the belt conveyor, the staff can start the pull cord switch at any position along the conveyor and stop the belt immediately to prevent the expansion of the accident. This product is easy to install, reliable performance, It is widely used in the field of belt conveyor.
Characteristic
Adopt high-strength A-alloy precise die-casting shell, with strong impact resistant capability.
High protective degree of shell, good sealing property.
Double switching output, large contact capacity, sensitive action and reliable performance.
Plastic coated steel wire rope moisture proof, acid and alkali resistant, flame retardant
|
Ambient temperature
|
-40℃~ 50℃
|
|
Relative humidity
|
0 ~ 95%
|
|
Atmospheric pressure
|
80 kPa ~110kPa
|
|
Electrical life
|
>100,000times
|
|
Output mode and quantity
|
2×SPDT
|
|
Contact rating
|
AC380V 5A DC24V 5A
|
|
Action force
|
70~ 100N
|
|
Adjustment range
|
20°~ 30°
|
|
Limit angle
|
75°
|
|
Reset mode
|
Manual
|
|
Protection level
|
IP67
|
