Famous brand co2 glass laser tube with Yongli or Reci brand with high quality,long life length and precision cutting and engraving effect.
- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, NC, JPG, JPEG, GIF, PNG, TIF
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LM
-
Dimension(L*W*H):
-
1.84 x 1.5 x 1.34m
-
Weight (KG):
-
350 KG
-
Warranty of core components:
-
depends on laser power
-
Core Components:
-
laser tube
-
Model:
-
LM-1390
-
Laser tube power:
-
60w / 80w / 100w / 150w
-
Cooling mode:
-
circulating water cooling (water pump, water chiller)
-
Air assist:
-
air pump (option: air compressor)
-
Controller:
-
RD controller
-
Machine table:
-
aluminum blade table
-
other equipment:
-
exhaust fan
-
Options:
-
red dot, up/down lifting table, rotary, honeycomb table, auto focusing
-
Keywords:
-
laser engraving machine
-
Certification:
-
ce
Quick Details
-
Engraving Area:
-
1300mm x 900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
60000mm/min
-
Graphic Format Supported:
-
AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT, NC, JPG, JPEG, GIF, PNG, TIF
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LM
-
Dimension(L*W*H):
-
1.84 x 1.5 x 1.34m
-
Weight (KG):
-
350 KG
-
Warranty of core components:
-
depends on laser power
-
Core Components:
-
laser tube
-
Model:
-
LM-1390
-
Laser tube power:
-
60w / 80w / 100w / 150w
-
Cooling mode:
-
circulating water cooling (water pump, water chiller)
-
Air assist:
-
air pump (option: air compressor)
-
Controller:
-
RD controller
-
Machine table:
-
aluminum blade table
-
other equipment:
-
exhaust fan
-
Options:
-
red dot, up/down lifting table, rotary, honeycomb table, auto focusing
-
Keywords:
-
laser engraving machine
-
Certification:
-
ce

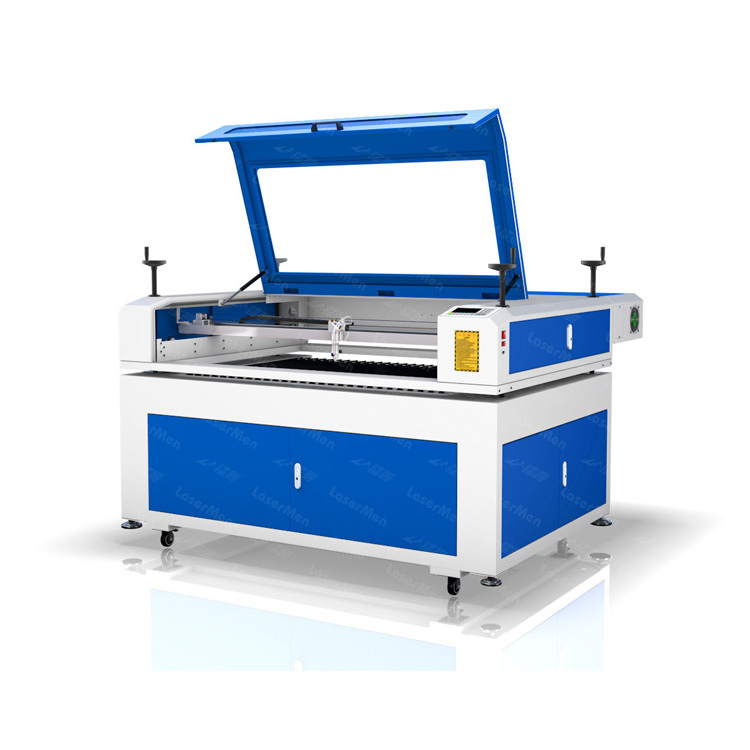

China stone granite marble gravestone tombstone laser engraving machine LM-1390
Machine Parameters
|
Product name
|
LM-1390-1
|
|
Cooling system
|
Water cooling, water pump / S&A industrial water chiller
|
|
Working voltage
|
Single phase 220V±10% 50Hz (Optional: 220V±10% 60Hz, 110V±10% 60Hz)
|
|
Transmission system
|
Linear guide rail and belt transmission
|
|
Driving system
|
Stepper motors and drivers
|
|
Processing materials
|
acrylic wood mdf plywood glass leather fabric stone plastic rubber PVC etc.
|
|
Machine table
|
Blade table (alternative: honeycomb table)
|
|
Control system
|
RuiDa controller RDC6445G
|
|
Air assist
|
Air compressor
|
|
Exhaust system
|
Exhaust fan
|
|
Machine color
|
Blue and white, Accept customization
|
|
Optional function
|
Wifi, Rotaty, Red dot, auto-focus, motorized up-down table, safety interlock
|
|
Software
|
RDworks laser sofware
|
|
Laser power
|
60W /80W /100W/130W/150W/180W
|
|
Working area
|
1300mm*900mm
|
Product Description :
1).
LaserMen Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine is our basic type CO2 laser engraving cutting machine. It is the most cost-effective and multifunctional machine. There are 5 sizes for your choice: 60x40cm, 90x60cm, 130x90cm, 140*90cm, 160x100cm.
2). CO2 laser tube power from 60W to 180W optional. Applicable for engraving and cutting various nonmetallic materials, like acrylic, plexiglass, wood, MDF, rubber, PVC, leather, paper, stone, glass, etc. 60-130W can do both engraving and cutting. Higher laser power like 150W and above mainly do cutting work.
3). Machine driving system is stepper motors. Fast engraving speed is up to 1200mm/sec.
4). LaserMen Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine is a whole set machine including laser tube, water cooling system, air blowing pump, exhaust fan, etc. to ensure machine running.
5). Some optional functions like red dot pointer, motorized up-down table, rotary, auto focus, WIFI provide more convenience and applicable range.
Product Details
Special liner guide rail good stability and long service life, low noise and high precision.
Strong power, reliable performance, safe and fast, ensure the normal operation of the machine.
45° mirror adjustment set. Three-point dimming blot for easier dimming .
5. Laser Head
The high-precision laser head has a long service life, can be equipped with red light.
RDC 6445G control system, parameters can be stored, 13 languages can be selected. Easy to operate.
Blade working table for hard material, such as wood, acrylic, mdf, plywood, stone, etc.
Honeycomb working table for soft materials, such as lather, fabric, paper, cloth, etc.
Take every details seriously to endure that the machine is stable working during service to every customer.
It pushes water from water container into laser tube, and from laser tube back to water container. The water circulation cools the
laser tube, protects the laser tube from high temperature during working.
laser tube, protects the laser tube from high temperature during working.
Optional Functions
Product Application
Applicable Industries:
Model industry (construction models, aviation and navigation models and wooden toys), advertisement, decoration, arts and crafts, electronic and electric appliances, garment industry fabric leather cut, etc.
Working materials:
Nonmetal materials such as acrylic, MDF, wood planks (light planks, paulownia wood), bamboo ware, double-color sheets, paper, leather, shells, coconut shells, ox horns, resin, animal grease, ABS boards, lampshade, etc.
|
CO2 Laser Working Capacity
|
|
|
|
|
|
|||||
|
Material
|
Engrave
|
Cut
|
Material
|
Engrave
|
Cut
|
|||||
|
Wood
|
√
|
√
|
Pressboard
|
√
|
√
|
|||||
|
Acrylic
|
√
|
√
|
Rubber
|
√
|
√
|
|||||
|
Fabric
|
√
|
√
|
Wood Veneer
|
√
|
√
|
|||||
|
MDF
|
√
|
√
|
Plywood
|
√
|
√
|
|||||
|
Delrin
|
√
|
√
|
Plastic
|
√
|
√
|
|||||
|
Cloth
|
√
|
√
|
Cork
|
√
|
√
|
|||||
|
Leather
|
√
|
√
|
Corian
|
√
|
|
|||||
|
Glass
|
√
|
|
Fiberglass
|
√
|
√
|
|||||
|
Ceramic
|
√
|
|
Tile
|
√
|
|
|||||
|
Marble
|
√
|
|
Anodized Aluminum
|
√
|
|
|||||
|
Matte Board
|
√
|
√
|
Stainless Steel
|
|
|
|||||
|
Melamine
|
√
|
√
|
Brass
|
|
|
|||||
|
Paper
|
√
|
√
|
Titanium
|
|
|
|||||
|
Mylar
|
√
|
√
|
Bare Metals
|
|
|
|||||
|
Coated Metals
|
√
|
|
Painted Metals
|
√
|
|
|||||
|
Cutting thickness of different laser power for reference
|
|
|
|
|
|
|
||||||
|
Material
|
Maximum cutting thickness (mm)
|
|
|
|
|
|
||||||
|
|
60W
|
80W
|
100W
|
130W
|
150W
|
180W
|
||||||
|
Acrylic
|
8
|
10
|
15
|
15
|
25
|
25
|
||||||
|
Wood
|
5
|
5
|
9
|
12
|
18
|
18
|
||||||
|
MDF
|
3
|
5
|
9
|
9
|
12
|
12
|
||||||
|
Plywood
|
5
|
5
|
9
|
12
|
18
|
18
|
||||||
|
Other materials like foam, rubber, leather, fabric, paper, cardboard, etc. also can be cut.
|
|
|
|
|
|
|
||||||
