Quick Details
-
Brand Name:
-
SVLEC
-
Model Number:
-
710471
-
Max. Current:
-
100mA
-
Max. Working Pressure:
-
103kPa
-
Product name:
-
Digital pressure switch
-
Rated pressure range:
-
-100~100kPa
-
Setting pressure range:
-
-103~103kPa
-
Switch Output:
-
PNP or NPN
-
Repeatability:
-
±0.3%F.S.±digit
-
Response time:
-
≤2.5ms
-
Display:
-
3 colors
-
Lead Wire:
-
PVC
-
Weight:
-
67g
-
Protection level:
-
IP40
Quick Details
-
Whether the smart:
-
Yes
-
Max. Voltage:
-
24VDC
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SVLEC
-
Model Number:
-
710471
-
Max. Current:
-
100mA
-
Max. Working Pressure:
-
103kPa
-
Product name:
-
Digital pressure switch
-
Rated pressure range:
-
-100~100kPa
-
Setting pressure range:
-
-103~103kPa
-
Switch Output:
-
PNP or NPN
-
Repeatability:
-
±0.3%F.S.±digit
-
Response time:
-
≤2.5ms
-
Display:
-
3 colors
-
Lead Wire:
-
PVC
-
Weight:
-
67g
-
Protection level:
-
IP40
Product Description

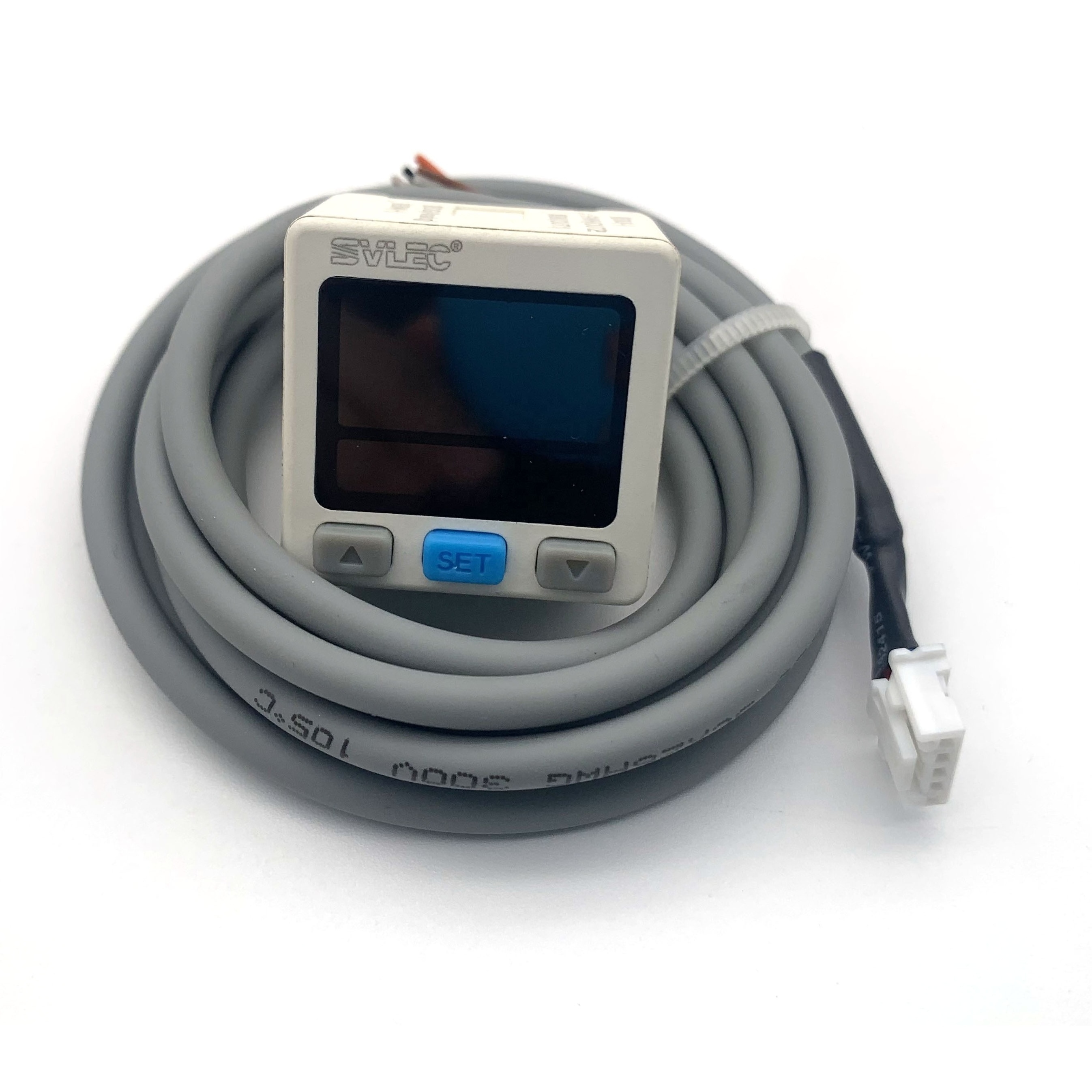

SVLEC pressure switch compound vacuum positive NPN PNP sensor switch
The pressure switch adopts high-precision and stable pressure sensor and transmission circuit, and then realizes the detection, display, alarm and control signal output of the medium pressure signal through the special CPU modular signal processing technology.
Details Images
|
Product Name
|
Digital pressure switch
|
|
Rated pressure range
|
-100.0 ~ 100.0 kPa
|
|
Setting pressure range
|
-103.0 ~ 103.0 kPa
|
|
With stand pressure
|
500 kPa
|
|
Fluid
|
Filtered air, Non-corrosive /Non-flammable gas
|
|
Power supply voltage
|
12 to 24V DC±10% ,Ripple （P-P）10% or less
|
|
Current consumption
|
≤ 25mA（With on load）
|
|
Repeatability
|
±0.3% F.S. ±1digit
|
|
Hysteresis (Adjustable) Hysteresis value is adjustable within 1-8 dinits for one point set mode and window comparator mode.
|
One point set mode
|
|
|
Hysteresis mode
|
|
|
Window comparator mode
|
|
Response time
|
≤ 2.5ms
|
|
Output short circuit protection
|
Yes
|
|
Display
|
3 colors (Red/Green/Orange)
|
|
Indicator accuracy
|
±1% F.S.±1 digit
|
|
Switch ON Indicator
|
Orange OUT1，OUT2
|
|
Analog output ( Voltage Output )
|
1 ~ 5V ±2.5% F.S.
|
|
Temperature characteristic
|
±3% F.S.
|
|
Port size
|
R1/8" , M5
|
|
Lead wire
|
Oil resistant PVC cable（0.15mm²）
|
|
Weight
|
67g (With 1.5 meter cable)
|
|
Protection level
|
IP40
|
