Quick Details
-
Brand Name:
-
Huaweiguochuang
-
Model Number:
-
HW-T6SG-64F
-
Number of feeder:
-
64
-
Number of camera:
-
8
-
Number of head:
-
6
-
Guide:
-
Imported
-
Number of feeding traies:
-
6
-
Software:
-
English
-
MAX circuit board area:
-
600*455mm
-
Drive motor:
-
Imported Servo Motor
-
Applicable Components:
-
0402, 0603, 0805, 1206, diode,triode, BGA SOT, etc
-
After Warranty Service:
-
Video technical support
Quick Details
-
Weight (KG):
-
498
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Huaweiguochuang
-
Model Number:
-
HW-T6SG-64F
-
Number of feeder:
-
64
-
Number of camera:
-
8
-
Number of head:
-
6
-
Guide:
-
Imported
-
Number of feeding traies:
-
6
-
Software:
-
English
-
MAX circuit board area:
-
600*455mm
-
Drive motor:
-
Imported Servo Motor
-
Applicable Components:
-
0402, 0603, 0805, 1206, diode,triode, BGA SOT, etc
-
After Warranty Service:
-
Video technical support
Products Description

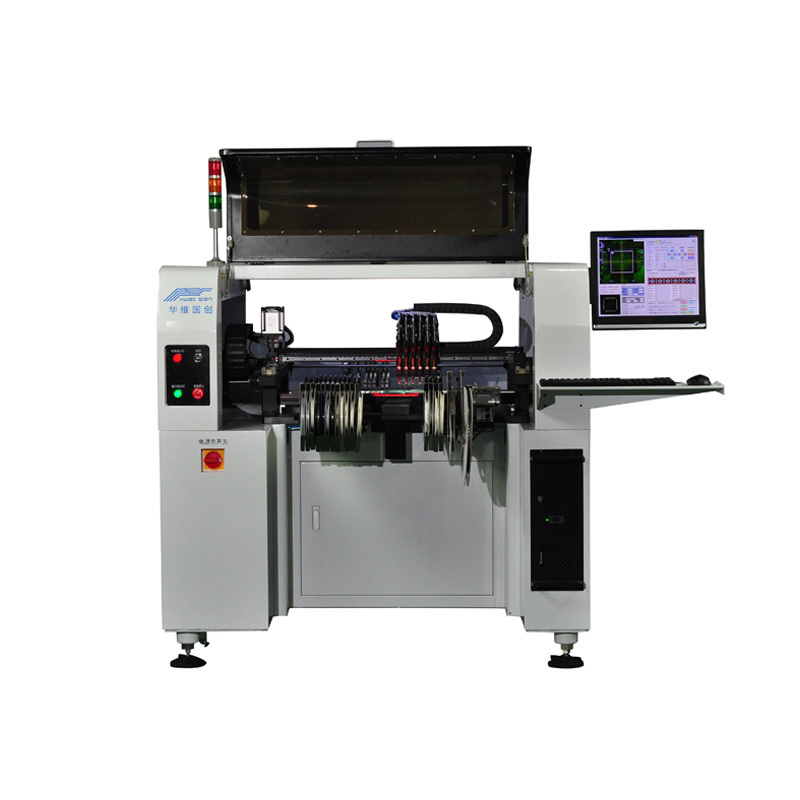

Based on 6 mounting heads +8 cameras+64 feeder positions+ Panasonic
Servo motor+guide screw, the positioning is highly developed （PRECISION:0.01MM）
SMT PNP Machine can pick 020 1, 0402, 0603, 0805, 1206, diode, triode, SOT, and QFP, BGA, etc. With lead pitch ≥0.3mm (pin center distance 0.5mm) within 40 * 40mm .
Servo motor+guide screw, the positioning is highly developed （PRECISION:0.01MM）
SMT PNP Machine can pick 020 1, 0402, 0603, 0805, 1206, diode, triode, SOT, and QFP, BGA, etc. With lead pitch ≥0.3mm (pin center distance 0.5mm) within 40 * 40mm .
Machine is of high quality with
at least one-year warranty
, lifetime maintenance.
|
Specification
|
|
|
|
Number of feeders
|
64
|
|
|
Number of IC tray
|
6
|
|
|
Number of cameras
|
8
|
|
|
Number of heads
|
6
|
|
|
Average power
|
500W
|
|
|
Positioning precision
|
0.01mm
|
|
|
The buffer range of suction nozzle
|
4.5mm
|
|
|
Power supply
|
220V, 50/60Hz
|
|
|
Compressed air
|
0.5-0.6Mpa
|
|
|
Drive motor
|
Panasonic servo motor
|
|
|
Vacuum source of suction nozzle
|
high-speed on-off vacuum generator with vacuum breaker
|
|
|
Maximum circuit board area
|
600×455mm
|
|
|
Maximum travel scope in Z axis
|
20mm
|
|
|
Tape feeder
|
8, 12, 16, 24mm and vibration suction (mounting pipe chip)
|
|
|
Maximum mounting speed
|
12000 Pcs/h
|
|
|
Average mounting speed of actual mounting resistance
|
9600Pcs/h
|
|
|
XYZ drive guide rail
|
TBI high-precision reloading linear guide rail
|
|
|
Motion drive system
|
Panasonic high-speed DSP drive
|
|
|
|
full-automatic chip mounter operating system independently
|
|
|
Recognition mode
|
developed by Huawei Guochuang based on Windows
|
|
|
Vacuum source of suction nozzle
|
operating systemand it supports windows xp
|
|
|
Element angle
|
win7 operating system
|
|
|
Element angle
|
0-360°, synchronous rotation during movement
|
|
|
X/Y operation mode
|
intelligent curve of the linear acceleration and deceleration linkage
|
|
|
MARK point positioning
|
full-automatic (the MARK point can be adjust at will)
|
|
|
Intelligent alarm
|
automatic correction, automatic filling, feeding shortage alarm
|
|
|
Plate entering mode
|
automatic connection from left to right in single sections
|
|
|
|
automatic PCB transfer positioning. /plunger positioning
|
|
|
|
manual plate feeding.
|
|
|
Visual display
|
17-inch industrial control display, 4:3, resolution: 1280 x1024
|
|
|
|
One Mark recognition camera, four quick-recognition cameras
|
|
|
|
and one precise-recognition camera
|
|
|
|
|
|
|
|
Adaptive to 0201, 0402, 0603, 0805, 1206, diode, audion, SOT, QFP
|
|
|
|
within 40*40mm and the pin distance ≥0.3mm
|
|
|
|
(0.5mm center distance) and BGA
|
|
|
Product weight
|
500KG
|
|
|
Dimension
|
1450*1370*1550mm
|
|
PART LIST
REAL SUPPLIER OF SMT660 Series
Software designed and developed
by our self.
It is English. And we will keep updating it.
Customers can get updated software regularly
Customers can get updated software regularly
