Quick Details
-
Model Number:
-
MT316S-G
-
Max. Current:
-
10A
-
Voltage:
-
6-30VDC
-
Internal Battery Voltage:
-
1.2VDC/40MAH rechargeable battery 3years
-
Power Consumpiton:
-
≤1VA
-
Control Output:
-
10A 60VDC (resisitive load)
-
Display:
-
LCD
-
Timing Error:
-
≤0.2s/day
-
Switching Time:
-
max.28 ON OFF per day
-
Temperature:
-
-25℃~60℃
-
Humidity:
-
45~85%RH
-
Mechanical Life:
-
≤3000,000 time
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
60VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Manhua
-
Model Number:
-
MT316S-G
-
Max. Current:
-
10A
-
Voltage:
-
6-30VDC
-
Internal Battery Voltage:
-
1.2VDC/40MAH rechargeable battery 3years
-
Power Consumpiton:
-
≤1VA
-
Control Output:
-
10A 60VDC (resisitive load)
-
Display:
-
LCD
-
Timing Error:
-
≤0.2s/day
-
Switching Time:
-
max.28 ON OFF per day
-
Temperature:
-
-25℃~60℃
-
Humidity:
-
45~85%RH
-
Mechanical Life:
-
≤3000,000 time
-
Certification:
-
CE

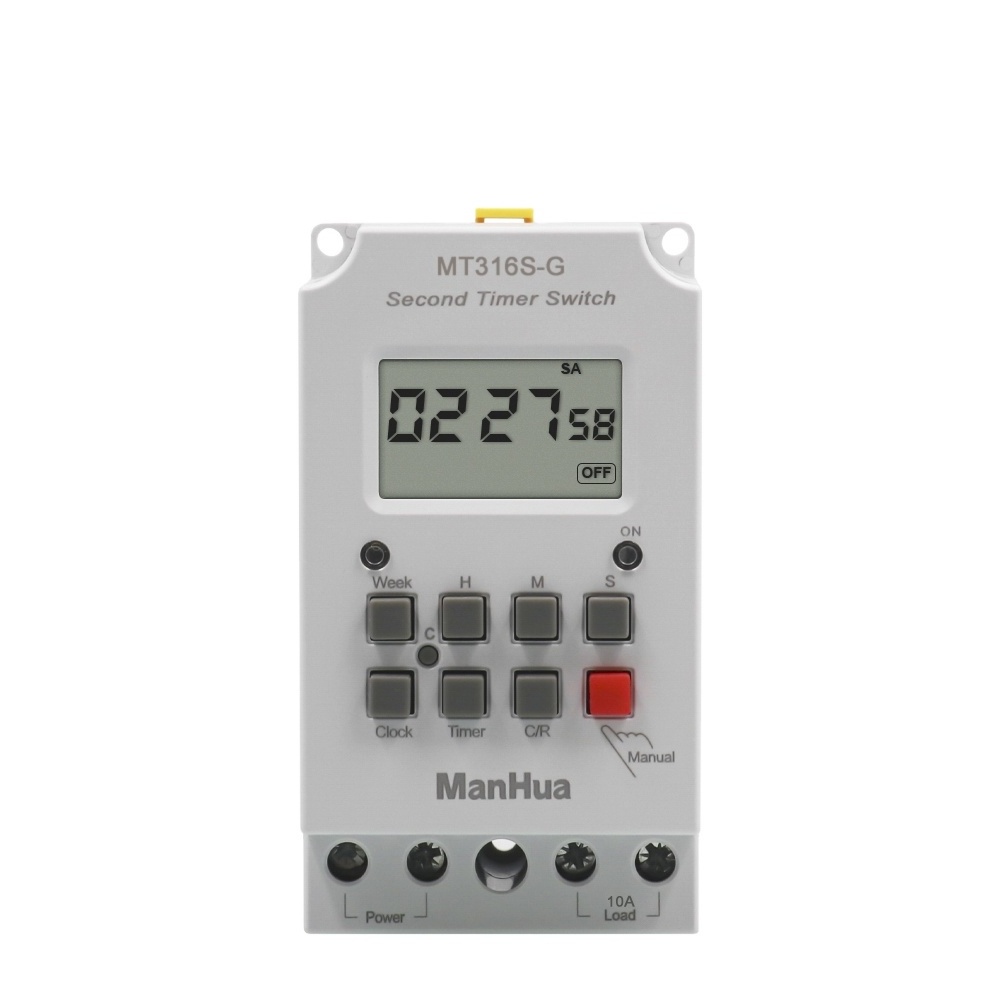

Manhua Hot Product 12 v Volt Electronic Delay Cycle Timer Switch
MT316S -G is the new DC timer , the advantages as follows :
1) 6-30VDC, 10A, very suitable for outdoor working with solar panel.
2) It could adjust from one second
3)It could be batched to set the on/off time in the factory if customers need Battery power reserve for
4) Week-date could be set as the user request, e.g. Sun-Thu
5) Battery power reserve for 4 years once fully charged
6) It has 28 on/off
7)With the lock function
8) It could be switched off
9) The current only is 10A, small power consumption
10) it could work outdoor easily if be with the IP66 plastic enclosure outside , Model is MT316S-G
♦Features
1- It widely applies to the time control of the equipments, streetlight, warehouse,
farming, heating and TV.
2- The battery inside, of the industrial clall chips, is precisely control, highly against disturb. Hongfa relay inside,the maximum current can reach up to 30A.
♦Characteristics
| Power Voltage | 6-30VDC,other voltage could be made |
| Inside Battery | 1.2VDC/40MAH (It could work 90 days without battery, Rechargeable ) |
| Electricity Consumption | Appr.1.5VA |
| Output Control | 15A,60VDC(resistance onload) |
| Time error | less than 0.2 second per day |
| Time on/off | max 28 times recycle per day |
| Environment Temperature | minus 25 degree until 60 degree |
| Environment Humidity | 45-85% RH |
| Mechanical Lifetime | 3,000,000 times |
| Weight | Appr.125g |
| Dimension | 98*55*44mm |
| Installation | with screw M3,3pcs |
♦Opertion ways
1- Press the buttom of clock,meanwhile press"date,hour, min" to adjust the time
2- Set on/off time
| Step | Button | The program set |
| 1 | Press(manuel)button | The screen show"auto-on-auto-off-suto" |
| 2 | Press(set)button | Start to set the on.(show 1 on) |
| 3 | Press(week)button | Set the week |
| 4 | Press(hour)button | Set "hour" |
| 5 | Press(min)button | Set "min" |
| 6 | Press(sec)button | Set "sec" |
| 7 | Press(set)button | Start to set the off |
| 8 | Repeat step2-6 | Set more on/off time |
| 9 | Press(clock)button | After setting,return to the local time |
♦Wiring and Installations
♦Attention
1- It should tighten the screw, to against the contact heating when the big current.
2- Control input wires is 220VAC 50/60HZ,it could not work with the voltage of 380VAC.
3- The voltage 12V,24V,AC110V,380V, could be made.
4- The control is on red light when the electricty is on.Red light and green light is on the same time when the load has the eletricity output.
5- The time set, it could not be mixed to set.It should follow the time sequence.
