Quick Details
-
Model Number:
-
IP KVM-1708C
-
Place of Origin:
-
Guangdong, China
-
Computer connect:
-
Direct : 8 (Max:256)
-
Supported OS:
-
Win XP, 7 /8 / 10 , Linux, Unix,etc
-
Switch Mode:
-
Hotkey , OSD Menu , Panel Button
-
Local console:
-
Keyboard / Mouse/ Display (2*USB +1* HDB-15 female )
-
Mouse:
-
Touchpad
-
Power input:
-
DC12V input , (AC100-240V 47-63Hz, 35W ) optional
-
Keyboard:
-
104 Mechanical mute Keyboard
-
Certification:
-
CE , FCC , RHOS
-
Warranty:
-
3 Years
Quick Details
-
Monitor Connections:
-
2 Ports
-
Resolution:
-
1280 x 1024
-
Brand Name:
-
Pontron
-
Model Number:
-
IP KVM-1708C
-
Place of Origin:
-
Guangdong, China
-
Computer connect:
-
Direct : 8 (Max:256)
-
Supported OS:
-
Win XP, 7 /8 / 10 , Linux, Unix,etc
-
Switch Mode:
-
Hotkey , OSD Menu , Panel Button
-
Local console:
-
Keyboard / Mouse/ Display (2*USB +1* HDB-15 female )
-
Mouse:
-
Touchpad
-
Power input:
-
DC12V input , (AC100-240V 47-63Hz, 35W ) optional
-
Keyboard:
-
104 Mechanical mute Keyboard
-
Certification:
-
CE , FCC , RHOS
-
Warranty:
-
3 Years
Main features

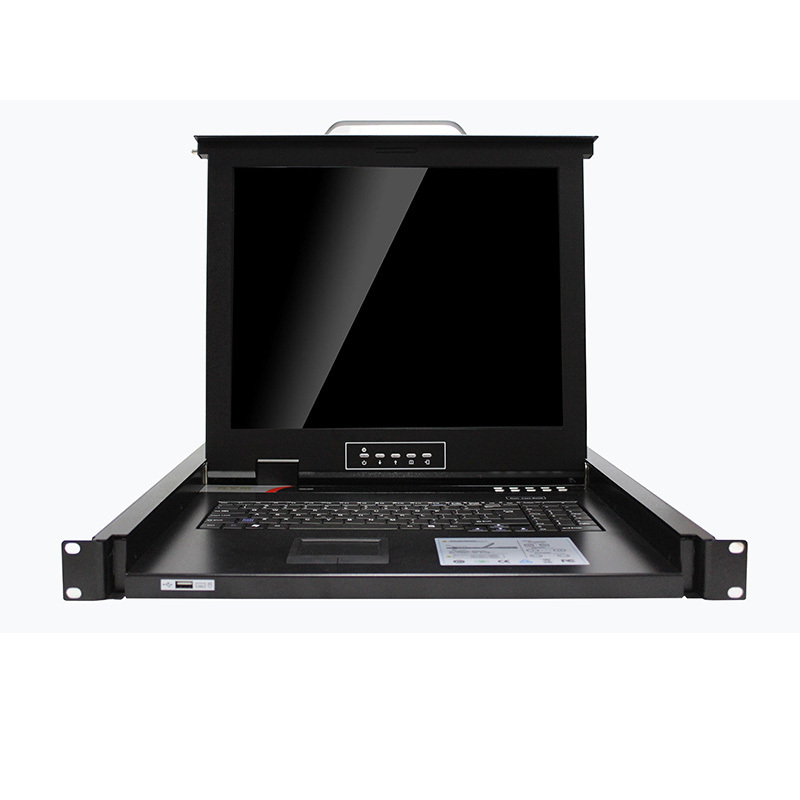

« 1 7 ’’ LED KVM switch with touch pad+Mouse
« 104keys keyboard with integrated Digital&E-switch keys.
«
Excellent video effects, the best resolution is up to 1
280
*10
24
@ 75HZ.
«
Supports front USB for keyboard/mouse
« Support USB+ VGA local console
«
Supports computer indicator when user
switch
to another computer.
«
Support
cascading
connection, max up to
1024
computer.
Introduction
«
Withdrawing installation design, the length can be adjusted to fit the rack space.
«
Humanized design
,
can be installed and removed by only one person , which improves the
efficiency of the administrator.
«
To switch the host computer though the hotkey or OSD menu, which can manage up to
1024
computers.
«
Password security protection, only authorized users can view and manage on-line computer.
«
Support a variety of brand industrial computer and the sever, eg: EVOC / Lenovo / IBM / DELL / HP/ SUN, ect .
«
Support various operating system:
Window XP, 7 /8 / 10 ,
Microsoft, Linux, Unix,etc.
S pecification
|
Model |
IP KVM-1708C |
IP KVM-1716C |
IP KVM-1732C |
|
|
Computer connect |
Direct : 8 (Max:256) |
Direct : 16 (Max:512) |
Direct : 32 (Max :1024) |
|
|
Keyboard |
104 Mechanical mute Keyboard |
|||
|
Mouse |
Touchpad |
|||
|
Switch Mode |
Hotkey , OSD Menu , Panel Button |
|||
|
Auto-scanning interval |
5~99 second |
|||
|
LCD resolution |
1280 *1024 DDC2B |
|||
|
Safety performance |
Provide access control list function |
|||
|
Power input |
DC12V input , ( AC100-240V 47-63Hz, 35W ) optional |
|||
|
Cable Port |
Local console |
Keyboard / Mouse / Display (2*USB + 1* HDB-15 female ) |
||
|
Connector port |
8 /16 /32 * RJ45 ( CAT5 port ) |
|||
|
Power supply |
1 * 3 pin AC power supply socket |
|||
|
Support Daisy-chain series connectors (8 level ) |
||||
|
LED Indicator |
Power indicator |
2 |
||
|
Selection indicator |
16 |
|||
|
Boost on-line indicator |
16 |
|||
|
Num Lock |
1 |
|||
|
Caps Lock |
1 |
|||
|
Scroll Lock |
1 |
|||
|
Work environment |
Operating Temp |
-1 0 ℃ ~ 6 0 ℃ |
||
|
Storage Temp |
- 2 0 ℃ ~ 7 0 ℃ |
|||
|
Humidity |
0%- 95 %RH |
|||
|
Cabinet Material |
high-strength and Anti-corrosive steel plate |
|||
|
Color |
Insulated black (optional) |
|||
|
For Cabinet |
800-1040mm |
|||
|
Net weight |
1 3KG-17 KG |
|||
|
Gross Weight |
1 7K G -22KG |
|||
|
Dimension |
568 *4 8 0*44mm (L x W x H) |
|||
|
Package |
708 *608*195 mm (L x W x H) |
|||
|
Certificate |
CE , FCC , RHOS |
|||
Ordering information
|
IP KVM - 1 7 08 C |
1U Rack mount 1 7 " TFT L E D KVM Drawer with 8 port over IP |
|
IP KVM - 1 7 16 C |
1U Rack mount 1 7 " TFT L E D KVM Drawer with 16 port over IP |
|
IP KVM - 1732C |
1U Rack mount 1 7 " TFT L E D KVM Drawer with 32 port over IP |
