HCBB07 is a Bluetooth BLE tag based on Bluetooth BLE technology . There are standard type (excluding key anti-tamper function) HCBB07, key anti-tamper type HCBB07-K, key anti-tamper + acceleration type HCBB07-KA. HCBB07 can be used with the Bluetooth gateway of HoneyComm IoT Technology(Shenzhen）Co.,Ltd. The product is widely used in asset tracking and management , and can also be used as a Bluetooth badge to manage personnel .
HCBB07 series products adopt low-power Bluetooth technology, low power consumption, long use time, small product size, and can be fixed on the asset surface with 3M glue.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
ByteRFly
-
Supplier Type:
-
Factory
-
Protocol:
-
Bluetooth Low Energy
-
Function:
-
Wireless Broadcasting
-
Battery:
-
CR2032 (225mAh)
-
Chipset Solution:
-
Nordic Chipset nRF52
-
Transmission Range:
-
3-100Meters
-
Battery Lifetime:
-
3-5 yrs
-
Waterproof Grade:
-
IP67
-
Certificate:
-
CE
-
Brand:
-
ByteRFly/HoneyComm
Quick Details
-
Chipset:
-
nRF52810
-
Application:
-
M2M IoT, M2M and IoT application
-
Model Number:
-
HCBB07
-
Place of Origin:
-
GUA
-
Brand Name:
-
ByteRFly
-
Supplier Type:
-
Factory
-
Protocol:
-
Bluetooth Low Energy
-
Function:
-
Wireless Broadcasting
-
Battery:
-
CR2032 (225mAh)
-
Chipset Solution:
-
Nordic Chipset nRF52
-
Transmission Range:
-
3-100Meters
-
Battery Lifetime:
-
3-5 yrs
-
Waterproof Grade:
-
IP67
-
Certificate:
-
CE
-
Brand:
-
ByteRFly/HoneyComm
Bluetooth Low Energy Tamper Beacon Tag Overview
HC
BB07-K has a button anti-tampering function, which can ensure the safety of assets. Once the Bluetooth tag is removed, the
Bluetooth tag will immediately broadcast a removal alarm signal . HCBB07-KA integrates a three-axis acceleration sensor,
which can determine whether assets or personnel are in motion.
Bluetooth tag will immediately broadcast a removal alarm signal . HCBB07-KA integrates a three-axis acceleration sensor,
which can determine whether assets or personnel are in motion.
Features
▶ Replaceable battery
▶ It has different product forms such as key anti-tampering, key anti-tampering + acceleration , etc.
▶ Reading distance up to 70 meters ( 0dBm broadcast )
▶ Beacon parameters can be flexibly configured through the mobile APP ( when the broadcast interval is less than 1s )
▶ Support BLE4.2 protocol
▶ Ultra-low power consumption, standby time up to 3 years ( 0dBm transmit power, 10s broadcast interval )
▶ Small and lightweight
▶ Easy installation: 3M double-sided adhesive
▶ RoHS Compliant
|
Hardware Parameters
|
|
|
||
|
Part Number
|
|
HCBB07 : Without tamper function
|
||
|
|
|
HCBB07-K : key tamper
|
||
|
|
|
HCBB07-KA : key tamper + acceleration
|
||
|
shell material
|
|
ABS
|
||
|
shell color
|
|
Black (default), other colors can be customized (batch order not less than 3K)
|
||
|
Dimensions
|
|
25*44*5. 7 mm ( without 3M glue, the thickness is 5.8mm with 3M glue )
|
||
|
battery model
|
|
CR2032, 225mAh ( replaceable battery )
|
||
|
supply voltage
|
|
DC 3V
|
||
|
installation method
|
|
3M double-sided tape
|
||

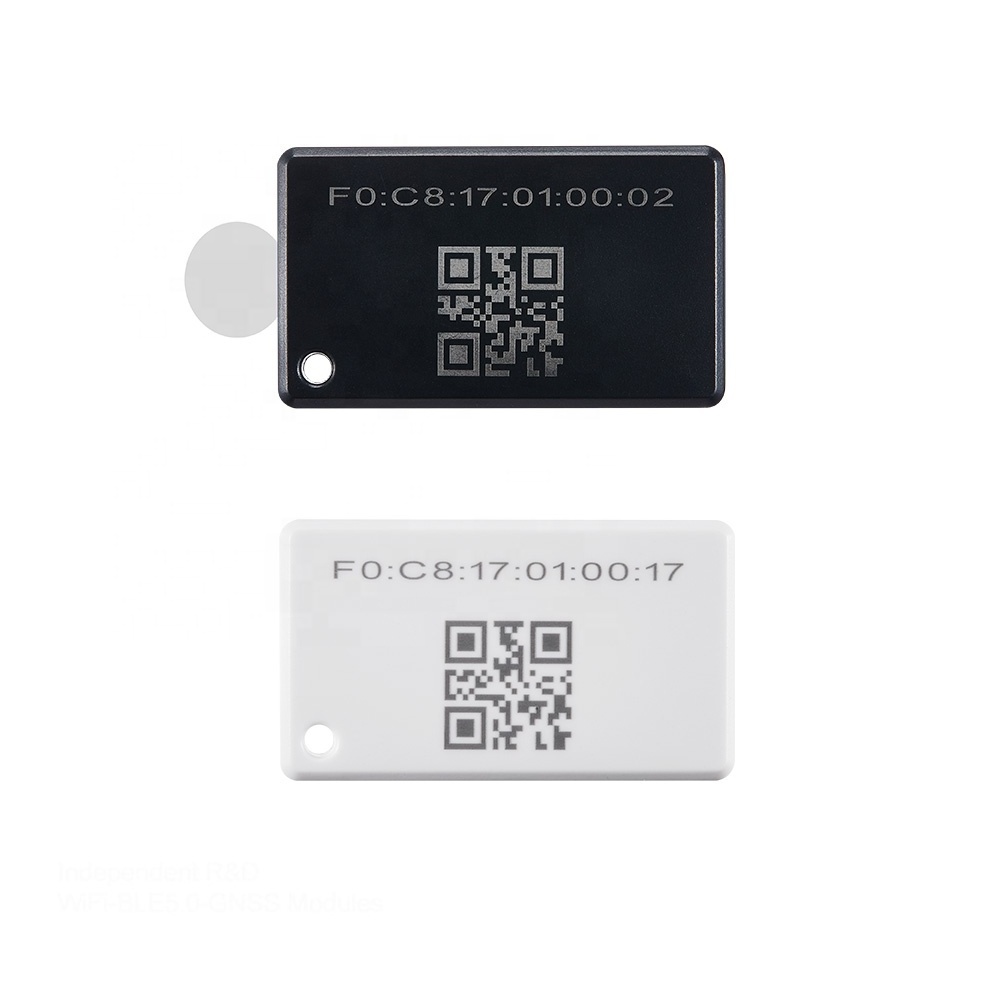

Beacon Tag with Printed Mac address
BLE Beacon Tag with 3M Glue
Ble Tamper Beacon Tag with Button
|
Specifications
|
|
|
||
|
communication method
|
BLE4.2
|
|
||
|
Operating mode
|
Broadcasting data
|
|
||
|
transmit power
|
-30~+4dB, default 0dB
|
|
||
|
broadcast interval
|
100ms~10s, default 3s
|
|
||
|
working frequency
|
2400MHz-2483.5MHz
|
|
||
|
Transmission distance
|
The open limit transmission distance is 70 meters (0dBm)
|
|
||
|
Safety
|
Support password connection ( when the broadcast interval is less than 1s ) and non-connectable mode, anti-malicious connection
function |
|
||
|
System Requirement
|
IOS7.0 and above, Android 4.3 and above
|
|
||
|
Electrical Characteristics
|
|
|
||
|
Quiescent Current
|
|
<=3uA
|
||
|
Peak Current
|
|
7 mA
|
||
|
Average Current
|
|
<7 uA (0dB/3s)
|
||
|
|
|
<3 uA (0dB/10s)
|
||
|
|
|
Remarks: Depending on the software and firmware, whether there is a response packet (with a broadcast Bluetooth name), whether it
can be connected, and the current are slightly different. |
||
|
Battery Type
|
|
CR2032 (replaceable battery)
|
||
|
Battery Capacity
|
|
225mAh
|
||
|
Beacon Lifetime
|
|
3 years (0dB/10s)
|
||
|
other
|
|
|
||
|
Working Environment
|
|
Working temperature: -20℃~+ 70 ℃
|
||
|
|
|
Storage temperature: -20℃~+ 70 ℃
|
||
|
|
|
Working humidity: 10%~90% (non-condensing state)
|
||
|
|
|
Storage humidity: 5%~90% (non-condensing state)
|
||
|
Default Parameters
|
|
|
|
UUID
|
FDA50693-A4E2-4FB1-AFCF-C6EB07647825
|
|
|
Major
|
10818
|
|
|
Minor
|
1 (increment)
|
|
|
RSSI @ 1m
|
-61dBm
|
|
|
transmit power
|
0dBm
|
|
|
connection password
|
not connectable
|
|
|
broadcast interval
|
3s
|
|
|
broadcast name
|
The last 6 digits of KTBB+mac
|
|
|
Is it connectable
|
Non-connectable mode (default), connectable mode ( optional , connectable mode is not recommended if the broadcast interval is
greater than 1s) |
|
|
battery power
|
Broadcast battery voltage, update the voltage value every 12 hours
|
|
