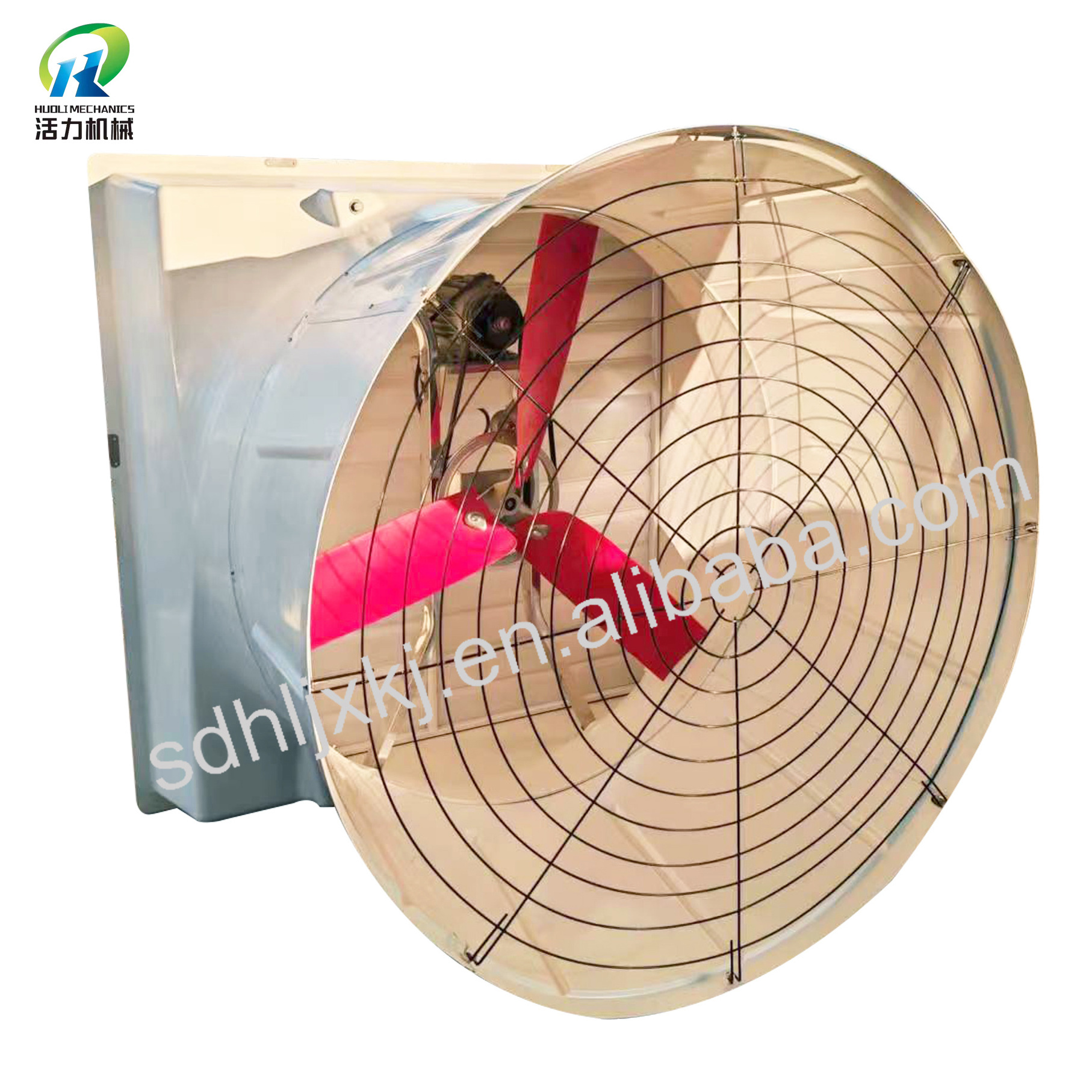

FRP Cone Fan are widely used in Agriculture and industry ventilation and cooling. It is mainly used for animal
husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANDONG HUOLI MACHINERY THECHNOLOGY CO.,LTD
-
Model Number:
-
Fan Size 1460*1460
-
Voltage:
-
110V/ 430V
-
Warranty:
-
Motor warranty 2 years
-
Core Components:
-
Other, Fiberglass enclosure, Electrical machinery, Holoer, Tensinoner pulley, Center wheel, Belt, Red nylon fan leaf, Window blind, STeel mesh, Screw
-
Product name:
-
Exhaust fan
-
Size:
-
1460*1460 model 50inches
-
Color:
-
White
-
Fan type:
-
Wall Air Fan
-
function:
-
Exhaust air, Cool down
-
Air volume:
-
48000
-
Usage:
-
Exhaust Ventilation .Placed
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Farms, Restaurant, Retail, Printing Shops, Construction works , Energy & Mining, Other
-
Electric Current Type:
-
AC
-
Mounting:
-
FREE STANDING
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANDONG HUOLI MACHINERY THECHNOLOGY CO.,LTD
-
Model Number:
-
Fan Size 1460*1460
-
Voltage:
-
110V/ 430V
-
Warranty:
-
Motor warranty 2 years
-
Core Components:
-
Other, Fiberglass enclosure, Electrical machinery, Holoer, Tensinoner pulley, Center wheel, Belt, Red nylon fan leaf, Window blind, STeel mesh, Screw
-
Product name:
-
Exhaust fan
-
Size:
-
1460*1460 model 50inches
-
Color:
-
White
-
Fan type:
-
Wall Air Fan
-
function:
-
Exhaust air, Cool down
-
Air volume:
-
48000
-
Usage:
-
Exhaust Ventilation .Placed
Product Description
Product Application
Details Images
Main Features
1)The glass fiber shell is extremely strong and corrosion-resistant, without deformation and color fading .
2)The horn shaped
exhaust outlet is highly impact resistant, and the performance is improved by 10% . 3) High strength nylon fan blade can
effectively reduce vibration, increase air flow and improve efficiency.
exhaust outlet is highly impact resistant, and the performance is improved by 10% . 3) High strength nylon fan blade can
effectively reduce vibration, increase air flow and improve efficiency.
Shutters
High quality material available
Nylon Belt tensioner
1. The belt tensioner is made of nylon material, runs smoothly and stably.
2. The fan adopts the belt transmission design to greatly improve the overall energy efficiency.
2. The fan adopts the belt transmission design to greatly improve the overall energy efficiency.
Motor
America Legal brand motor
German Siemens brand motor
Chinese Nosch brand motor
German Siemens brand motor
Chinese Nosch brand motor
Nylon Blade
,keep air volume all the way.
Bearing
1.High precision,more stable operation
2.The core of the normal operaion of the fan is one of the important parts of the fan
|
Technical Data:
|
|
|
|
|
|
|
|
|
|
Model
|
Model
|
PropellerDia.(mm)
|
Rated Speed
|
Air Capacity
|
Rated Power
|
VoltageFrequency
|
Drive Mode
|
CompleteSize
|
|
RT-1710
|
55inch
|
1380
|
710
|
58000
|
1.5
|
380V/220V
|
Direct
|
1710*1710*1480
|
|
RT-1530
|
51inch
|
1290
|
710
|
48000
|
1.5
|
380V/220V
|
Direct
|
1530*1530*1250
|
|
RT-1460
|
50inch
|
1250
|
710
|
46000
|
1.1
|
380V/220V
|
Direct
|
1460*1460*1300
|
|
RT-1250
|
36inch
|
920
|
710
|
28000
|
0.75
|
380V/220V
|
Direct
|
1250*1250*1235
|
|
RT-1170
|
36inch
|
910
|
910
|
26000
|
0.75
|
380V/220V
|
Direct
|
1170*1170*1225
|
|
RT-790
|
24inch
|
600
|
910
|
15000
|
0.37
|
380V/220V
|
Direct
|
790*790*1035
|
|
RT-660
|
18inch
|
480
|
910
|
7800
|
0.37
|
380V/220V
|
Direct
|
660*660*905
|
