Quick Details
-
Range of Spindle Speed(r.p.m):
-
75 - 4550
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YIJIN
-
Model Number:
-
XL5036B
-
Table Travel (mm):
-
3/18/80
-
Year:
-
2023
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1800*1950*2400mm
-
Weight (KG):
-
2000
-
Spindle Motor Power(kW):
-
4
-
Max. Table Load(kg):
-
260 kg
-
Marketing Type:
-
New Product 2023
-
spindle bore taper:
-
NT40
-
Spindle speed range:
-
75-4550
Quick Details
-
Table Travel (X) (mm):
-
1000
-
Table Travel (Y) (mm):
-
320
-
Table Travel (Z) (mm):
-
380
-
Range of Spindle Speed(r.p.m):
-
75 - 4550
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YIJIN
-
Model Number:
-
XL5036B
-
Table Travel (mm):
-
3/18/80
-
Year:
-
2023
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1800*1950*2400mm
-
Weight (KG):
-
2000
-
Spindle Motor Power(kW):
-
4
-
Max. Table Load(kg):
-
260 kg
-
Marketing Type:
-
New Product 2023
-
spindle bore taper:
-
NT40
-
Spindle speed range:
-
75-4550

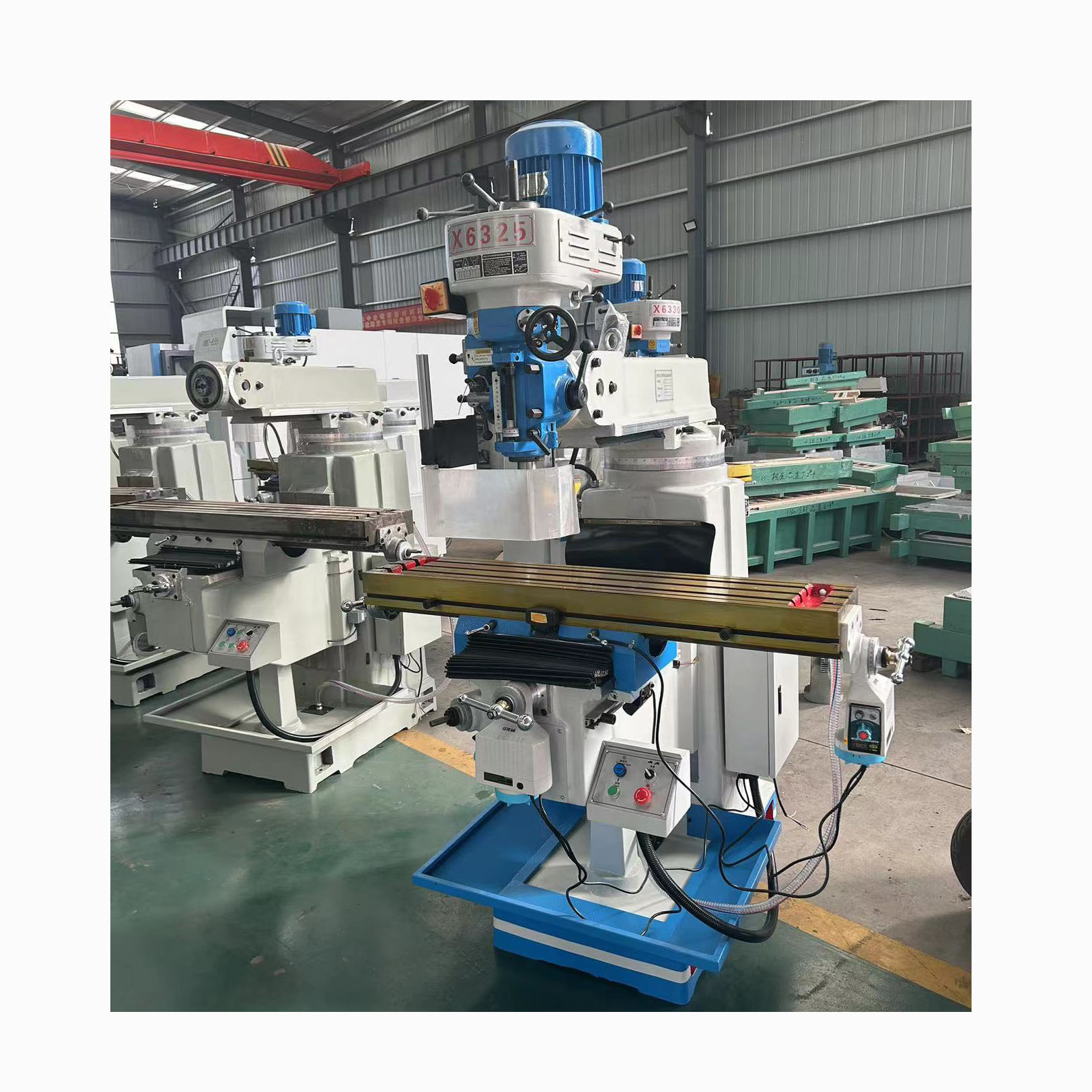

Product Image
Product Details
|
Parameters.
|
Unit
|
6H Vertical turret milling machine
|
|
Workbench area
|
mm
|
1250×360（1220*360）
|
|
Longitudinal stroke of worktable (X)
|
mm
|
600（1000）
|
|
Lateral stroke of worktable (Y)
|
mm
|
320（250）
|
|
Vertical stroke (Z)
|
mm
|
380（360）
|
|
Spindle hole taper
|
|
ISO50
|
|
Distance from end face of spindle to worktable
|
mm
|
60～440(80-440)(80-480)
|
|
Distance from the center of the spindle to the column guide
|
mm
|
360(320)
|
|
Spindle speed range
|
r/min
|
60-1700
|
|
The number of T-shaped slots in the worktable
|
|
3
|
|
T-shaped slot width
|
mm
|
16
|
|
T-shaped slot spacing
|
mm
|
80
|
|
Main motor power
|
Kw
|
4KW
|
|
Shape and size
|
mm
|
2220*1790(1700*1680)(1800*1850)
|
|
Gross weight
|
Kg
|
2600
|
Product Introduction
Main structure and performance of X5032 Vertical lifting Table Milling Machine：
1, XL5036 vertical lifting table milling machine base, bed, table, lifting table, bed saddle and other main components are cast of high-strength materials, and artificial aging treatment, to ensure the high stiffness of the machine and long-term stability.
2, the vertical milling head of XL5036 vertical lifting table milling machine can be adjusted ±45º in the vertical plane, expand the processing range of the machine; The main shaft bearing is tapered roller bearing with strong bearing capacity, and the main shaft adopts energy consumption braking, large braking torque, quick and reliable stopping.
3, XL5036 vertical lifting table milling machine table X/Y/Z direction there are manual feed, motor feed and motor fast feed three modes, feed speed can meet different processing requirements; The fast feed method can make the workpiece reach the processing position quickly, the processing is convenient and fast, shorten the non-processing time and improve the work efficiency.
4, XL5036 vertical lifting table milling machine X, Y, Z three direction guide rail pair by ultra-audio quenching, precision grinding and scraping treatment, with forced lubrication, improve the accuracy, extend the service life of the machine.
5, XL5036 vertical lifting milling machine lubrication device can be X, Y, Z direction of the lead screw and guide rail for forced lubrication, reduce the wear of the machine tool, to ensure the efficient operation of the machine tool; At the same time, the cooling system changes the size of the coolant flow by adjusting the nozzle to meet different processing needs.
6. The overall design of XL5036 vertical lifting milling machine is ergonomic and easy to operate; The operation panel is designed with figurative symbols, which is simple and intuitive.
