Automatic transfer switch mainly used for distribution or electromotor network, which under voltage 380V, rated voltage DC220V,Rated current 16A-3200A.
Main power and standby power or mutual standby power change over system or city power and generator group overload switch-over.Atthe same time, it can operated under un-frequency on and off circuit act as disconnector.
Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection,hospital,bank,building,etc, where doesn't allow power off.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ATS 100A
-
Rated Current:
-
100A
-
Frame current:
-
9999
-
Item Name:
-
Automatic Transfer Switch Changeover ATS Controller 400V 100A
-
weight::
-
4kg
-
Max. Voltage:
-
690v
-
Pole:
-
4P
-
Max current:
-
16A~100A
-
Operation type:
-
Auto&Manual, or Manual
-
Type:
-
ATS
-
Application:
-
Transfer Switch
-
In Stock:
-
YES
-
Max. Current:
-
100A
Quick Details
-
Number of Pole:
-
4
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Mebay
-
Model Number:
-
ATS 100A
-
Rated Current:
-
100A
-
Frame current:
-
9999
-
Item Name:
-
Automatic Transfer Switch Changeover ATS Controller 400V 100A
-
weight::
-
4kg
-
Max. Voltage:
-
690v
-
Pole:
-
4P
-
Max current:
-
16A~100A
-
Operation type:
-
Auto&Manual, or Manual
-
Type:
-
ATS
-
Application:
-
Transfer Switch
-
In Stock:
-
YES
-
Max. Current:
-
100A
Products Description

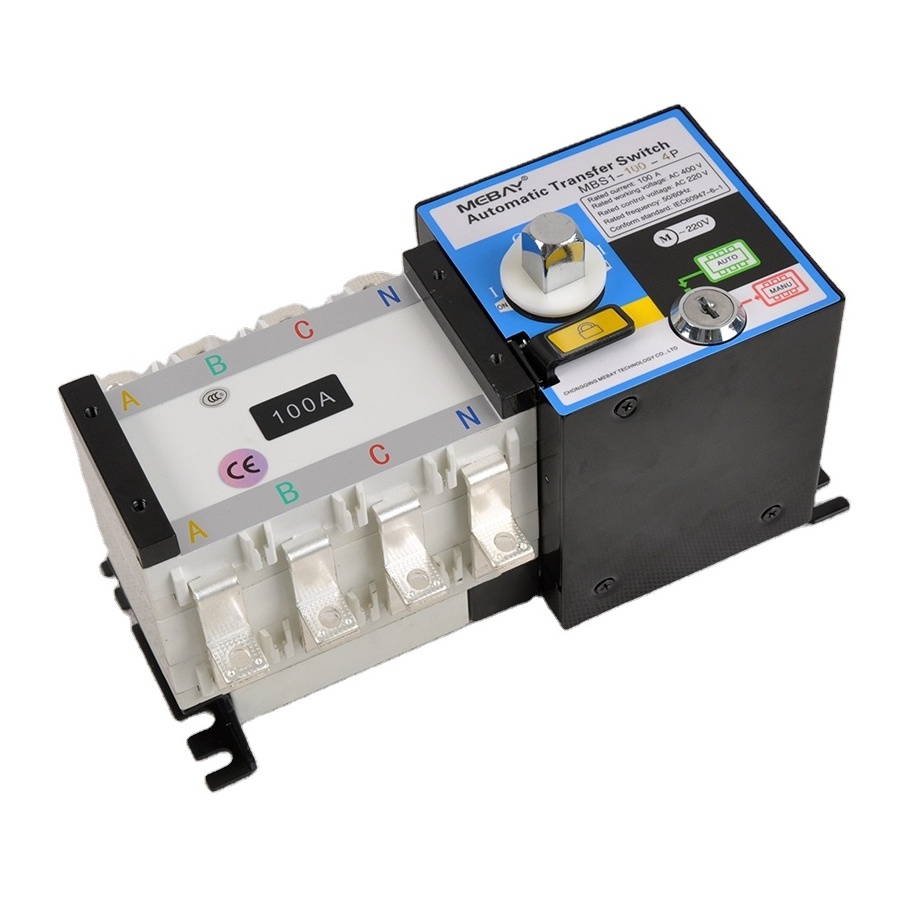

Automatic Transfer Switch Changeover Dual Power ATS Controller 400V 100A
|
Frame Class
|
|
100
|
|
250
|
630
|
1600
|
|
3200
|
|||||||
|
Agreed heating current Ith(A)
|
|
63
|
100
|
160-3200
|
|
|
|
|
|||||||
|
Rated current In(A)
|
|
16/20/25/32/40/50/63
|
80/ 100
|
125/160/250
|
400/630
|
800/1000/1250/1600
|
|
2000/2500/3200
|
|||||||
|
Rated insulation voltage(Ui)
|
|
690V
|
|
|
|
800V
|
|
|
|||||||
|
Rated short-circuit connection capacity
|
|
8KA
|
|
17KA
|
26KA
|
67KA
|
|
|
|||||||
|
Rated short-time withstand current(Icw)
|
|
5kA/30ms
|
|
10kA/60ms
|
12.6kA/60ms
|
32kA/60ms
|
|
|
|||||||
|
Transfer time I-II or II-I
|
|
2.5s
|
|
0.6s
|
|
1.2s
(Rated current In 800-1250)
|
1.8s
(Rated current In 1600-2500)
|
2.4s
(Rated current In 3200)
|
|||||||
|
Control voltage
|
|
DC24V、48V、110V，AC220V
|
|
|
|
|
|
|
|||||||
|
Rated frequency
|
Start
|
20W
|
|
325W
|
355W
|
400W
(Rated current In 800)
|
440W
(Rated current In1000-1600)
|
600W
(Rated current In 2000-3200)
|
|||||||
|
|
Normal
|
|
|
62W
|
74W
|
90W
(Rated current In 800)
|
98W
(Rated current In1000-1600)
|
120W
(Rated current In 2000-3200)
|
|||||||
|
Weight(kg) 4Pole
|
|
3.4
|
|
6.0/7.6
|
15.8/16.8
|
36
|
36/37/38.6
|
55/61/67
|
|||||||
