Quick Details
-
Application:
-
Office Building
-
Design Style:
-
morden
-
Place of Origin:
-
linyi
-
Brand Name:
-
jintailong
-
Model Number:
-
jintailong-001
-
Material:
-
iron
-
Product name:
-
mineral fiber board paint keel
-
Usage:
-
Interior Ceiling Decoration
-
Surface:
-
painting
-
Color:
-
white/silver
-
Key word:
-
T-bar mineral fiber board
-
Name:
-
Product Decorative mineral fiber Ceiling
-
Size:
-
595*595mm 603*603mm
-
Type:
-
Modern Wall Panel
-
Raw Materials:
-
mineral fiber
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Office Building
-
Design Style:
-
morden
-
Place of Origin:
-
linyi
-
Brand Name:
-
jintailong
-
Model Number:
-
jintailong-001
-
Material:
-
iron
-
Product name:
-
mineral fiber board paint keel
-
Usage:
-
Interior Ceiling Decoration
-
Surface:
-
painting
-
Color:
-
white/silver
-
Key word:
-
T-bar mineral fiber board
-
Name:
-
Product Decorative mineral fiber Ceiling
-
Size:
-
595*595mm 603*603mm
-
Type:
-
Modern Wall Panel
-
Raw Materials:
-
mineral fiber
Product Description

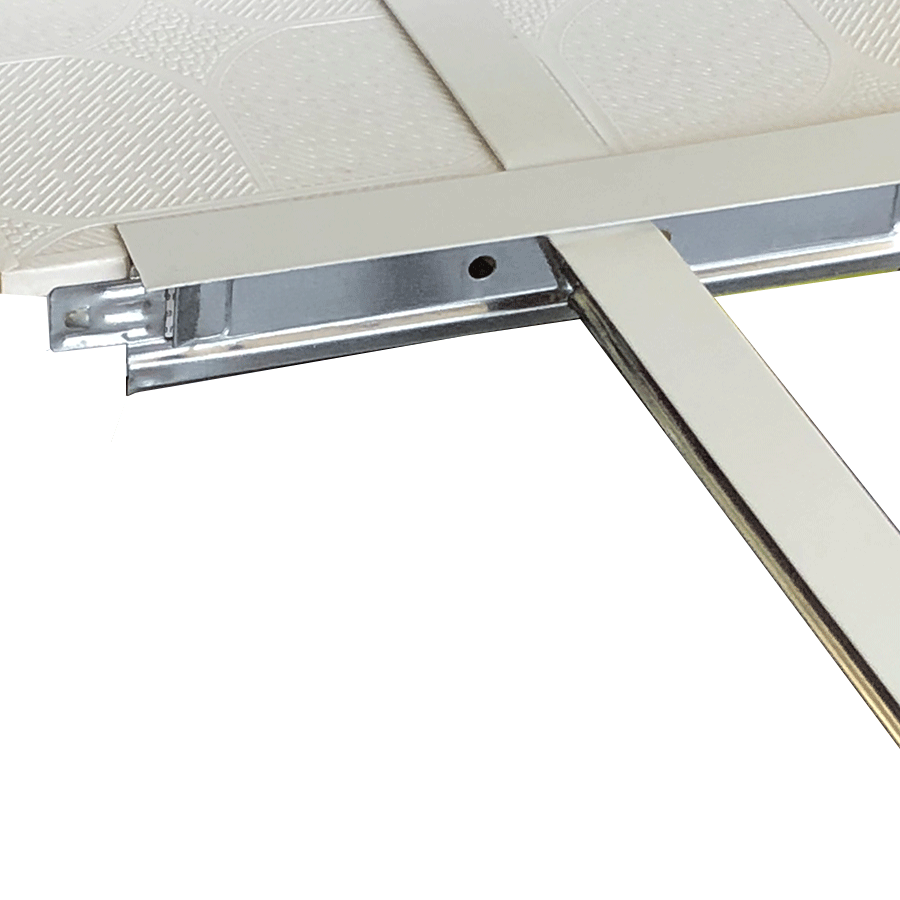

Products Details:Suspended ceiling t grid is made from hot dipped galvanized steel, pressed to T shape after cooling, baked paint on surface finish, it is suspension false ceiling consisting of the main tee, cross tee, and wall angle to make the grid system to support the lay-in ceiling tiles. Mostly applied in the public buildings such as office, hospital, classroom, airport and so on.
SUSPENDED CEILING T GRID TYPES:
TRUSUS can produce three kinds of ceiling grid, including plane ceiling grid, groove ceiling grid and solid groove ceiling grid.
TRUSUS can produce three kinds of ceiling grid, including plane ceiling grid, groove ceiling grid and solid groove ceiling grid.
FEATURE:
1. High grade galvanized steel as main material, non-deforming, fadeless, moisture proof and anti-corrosive.
2. Strong close fitting, high symmetry
3. High load capacity
4. Easy and fast installation, save installing time and labor cost
5. Large production line and strict product inspection, larger quantity and better quality are available
1. High grade galvanized steel as main material, non-deforming, fadeless, moisture proof and anti-corrosive.
2. Strong close fitting, high symmetry
3. High load capacity
4. Easy and fast installation, save installing time and labor cost
5. Large production line and strict product inspection, larger quantity and better quality are available
Specification
1. PLANE SUSPENDED CEILING T GRID
2.NOTCH SUSPENDED CEILING T GRID:
3. SOLID NOTCH SUSPENDED CEILING T GRID:
4. WALL ANGLE:
NOTES:
1. Available thickness: 0.23mm/0.26mm/0.3mm/0.35mm/0.4mm/0.5mm
2. Wall angle: 20*15mm/20*20mm/22*22mm/24*24mm
3. Other specification is available
1. Available thickness: 0.23mm/0.26mm/0.3mm/0.35mm/0.4mm/0.5mm
2. Wall angle: 20*15mm/20*20mm/22*22mm/24*24mm
3. Other specification is available
Technical Paramenters
|
inspection item
|
Unit
|
National Standard
|
Test Result
|
|
Appearance
|
-
|
no damage
|
no
|
|
Hole Distance Difference
|
mm
|
±0.3
|
±0.1
|
|
Difference of baking paint thickness
|
um
|
≥20
|
24
|
|
Width Difference
|
mm
|
±0.5
|
0.1-0.3
|
|
Length Difference
|
mm
|
±1.0
|
0.3-0.6
|
|
Underside straight Limitation
|
mm/1000mm
|
≤1.3 |
0.6
|
|
Load bending Limitation
|
mm
|
≤2.8
|
2.1
|
|
Galvanized thickness
|
um
|
≥14
|
17
|
