- Product Details
- {{item.text}}
Quick Details
-
Size:
-
4.5*5.5CM
-
Type:
-
Paste Material
-
Color:
-
white
-
Viral filtration efficiency:
-
99.99%
-
Shelf life:
-
2 years
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MEDEASE
-
Model Number:
-
ME3425
-
Size:
-
4.5*5.5CM
-
Type:
-
Paste Material
-
Color:
-
white
-
Viral filtration efficiency:
-
99.99%
-
Shelf life:
-
2 years

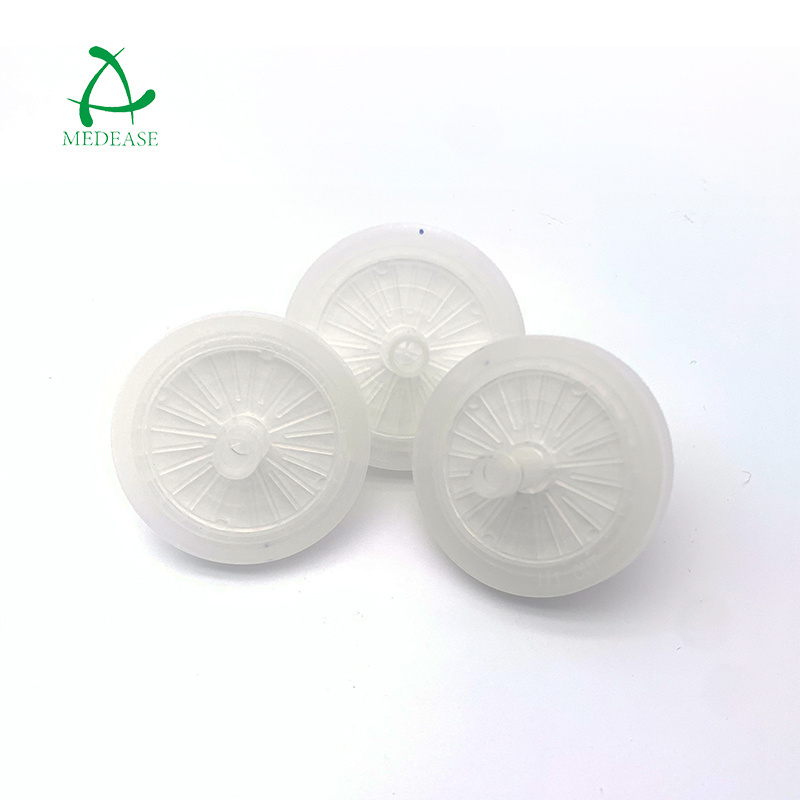

Product Display
|
ITEM NAME:
|
Bacteria Filter
|
|
MATERIAL:
|
PTFE/Hydrophobic
|
|
GAS TYPE:
|
OXYGEN
|
|
Shelf Life:
|
1Year
|
|
Packing
:
|
100pcs/bag
|
Materials of Construction
Filter Media:NYL/Hydrophilic PTFE/Hydrophobic PTFE/Hydrophobic PVDF/PES
(PP or GF is optional for pre-filtration layer)
Support & Drainage:PP
Sealing Technology:Thermal Welding(No Adhesives)
Dimensions
Outer Diameter
PTFE:65mm
NYL/PES/PVDF/PP/GF:60mm
Inlet/Outlet connections
7-13mm stepped hose barb connection with inner 6:100 luer slip
Filtration Area≥19.6cm2
Ratings, μm
0.1, 0.22, 0.45, 0.65
Bubble Point(PTFE 0.22 m) ≥900mbar, 60%IPA
Maximum Operating Temperature :60 ℃/140 ℉
Forward Maximum Operation Pressure :≥3.5bar@23℃; ≥3bar@60℃
Sterilization： By autoclave at 123℃, 30min or EO
Filter Media:NYL/Hydrophilic PTFE/Hydrophobic PTFE/Hydrophobic PVDF/PES
(PP or GF is optional for pre-filtration layer)
Support & Drainage:PP
Sealing Technology:Thermal Welding(No Adhesives)
Dimensions
Outer Diameter
PTFE:65mm
NYL/PES/PVDF/PP/GF:60mm
Inlet/Outlet connections
7-13mm stepped hose barb connection with inner 6:100 luer slip
Filtration Area≥19.6cm2
Ratings, μm
0.1, 0.22, 0.45, 0.65
Bubble Point(PTFE 0.22 m) ≥900mbar, 60%IPA
Maximum Operating Temperature :60 ℃/140 ℉
Forward Maximum Operation Pressure :≥3.5bar@23℃; ≥3bar@60℃
Sterilization： By autoclave at 123℃, 30min or EO
