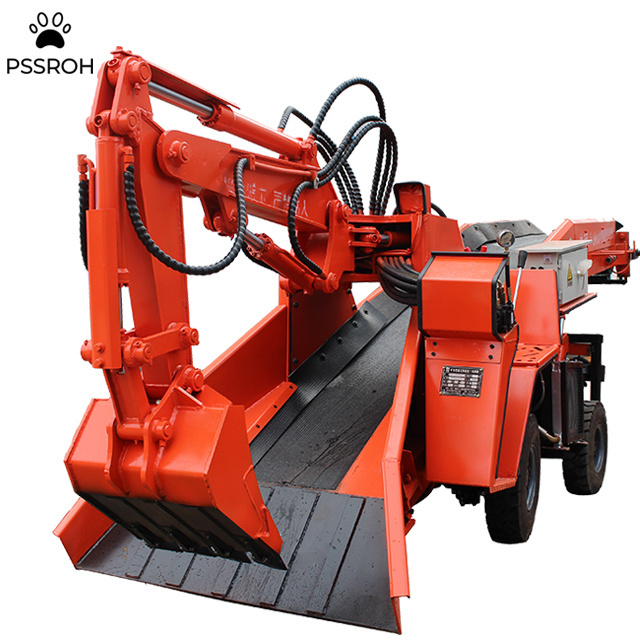

Hot model ZWY-50/11T mining loader in golden mine/small haggloader machine/Construction site mucking loader

Hot model ZWY-50/11T mining loader in golden mine/small haggloader machine/Construction site mucking loader

FOB Reference Price: Get Latest Price

≥1 Sets

US $8400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: mucking loader

Loading ability:: 50m3/h

Total Motor Power:: 11kw

Ground Clearance:: 180mm

Wheel Base:: 1340mm

Machine Weight:: 3350kg

Digging width:: 2850mm

Digging height:: 1650mm

Digging distance:: 1400mm

Dumping height:: 1300mm

Quick Details

Weight (KG):: 3000

Place of Origin:: Henan, China

Brand Name:: PSSROH

Product name:: mucking loader

Loading ability:: 50m3/h

Total Motor Power:: 11kw

Ground Clearance:: 180mm

Wheel Base:: 1340mm

Machine Weight:: 3350kg

Digging width:: 2850mm

Digging height:: 1650mm

Digging distance:: 1400mm

Dumping height:: 1300mm

Specification

When your mine slope is less than 8 degrees, you can use wheel type
If your mine slope is more than 8 degrees, please click " Available item " to check crawler type.

When your mine width is more than 1.4M, height is more than 1.75M,
Our ZWY-50/11T model mucking loader can go inside your mine to work.

If your mine size is larger, please skip to " Available item " , to click other model picture and check details.

ZWY-50/11T model Mucking loader technical parameters

ZWY-50/11T model Mucking loader technical parameters
Techinal Data			Functional Parameters
Overall Dimension	450014001650 mm	Loading Ability	50 m3/h
Ground Clearance	180mm	General power	11 kw
Wheel Base	1340 mm	Weight	3350 kg
Digging Width	2850 mm	Climbing ability	≤ 10°
Digging Height	1650 mm	Belt Speed	0.63 m/s
Digging Depth	400 mm	Travelling Speed	2.5 km/h
Digging Distance	1400 mm	Rated Work Pressure	16 Mpa
Dumping Height	1300 mm ( variable )	Transporting Way	Belt
Dumping Distance	700 mm ( variable )	Moving Way	Tire
Operating Mode			Multiway value
Adaptive tunnel dimension ( Width * Height )			≥1.4*1.75 m

Normally, before we quoted you our model machine, we would like to ask you some questions,
To provide the most suitable model machine according to your mine or tunnel information.
Please check the specific size of our model ZWY-50/11T

When your mine width is more than 1.4M, height is more than 1.75M, Our ZWY-50/11T model machine can go inside your mine From the left picture, you could see that, Normally, for the mine, we need to leave space for emergency matters, cable lines and ventilating device. With considering that, our Model ZWY-50/11T can be apply to the mine or tunnel which section is more than 1.55M*1.75M

When you send inquiry, please provide the most detailed information of your mine or tunnel information,
We can save time to provide you the most suitable model machine according to your information.

Questions is as follows:
Q1: What kind of mine or tunnel you are going to use machine ? Such as gold mine or diversion tunnel?
Q2: What is your mine width and height ? Has curve inside your mine ?
Q3: What is your mine or tunnel slope ? More than 8 degrees ?
Q4: Do you have transporting vehicle behind our machine ? what is the size ?

Specific Details

For the wheel type mucking loader, we have 2 types, Type A, rotate at original place. Type B, wheel bridge structure.

Type A , rotate at original place Type B , wheel bridge structure.
This type machine is suitable to use in narrow mine, This type of machine uses front axle and rear axle, which
have a curve inside tunnel, which has smaller radius makes the chassis structure. This type has reliable quality,
of turning circle. and easy to maintenance.

In this product page, we would like to introduce wheel bridge structure mucking loader . Model ZWY-50/11T
ZWY-50/11T, number 50 refers to capacity, 50m3/hour, number 11 means the motor power, T refers to wheel type.
If you are interested in rotate at original place type, please contact me, I will send video and details to explain.
The following is all the information of model ZWY-50/11T.

Wheel bridge chassis structure of mucking loader

The chassis part consists of frame, front axle, rear axle, motor ( explosion- proof motor ), hydraulic gear pump, hydraulic motor, oil tank and etc. When the machine is connected with electricity, the motor works to drive the oil pump through the hydraulic transmission control system, then, make the hydraulic motor to work. The hydraulic motor will let the gearbox to drive the front, rear axle and the steering cylinder. In this way, the machine can be walking forward, walking backward and turn of the machine.

Portal frame has firm structure, which uses 30mm thickness plate, and with 10mm thickness wear plate.

At the connection part between big arm and small arm ,

there is one extra wear plate, which is around 10mm thickness.

The structure of our conveyor is very intensive, and we have strengthened in the core part.
In the besides of conveyor, we add the wear resisting plates on both sides, and you can see several hollow holes,
The function of that hollow holes is, to strengthen the weld between the wear resisting plates and the conveyor.
By adding that wear resisting plates, can enhance the load bearing ability.

Sliding chassis structure of mucking loader ( We can customize machine width )

We can customize the narrowest width, which machine can work in narrow place.
Sliding chassis structure has 2 pieces hydraulic motor to drive the machine, one hydraulic motor in A side, to drive 2 wheels, the other hydraulic motor in B side, to drive another 2 wheels. The chassis is made by our factory, so we can customize the C length, to achive machine width customize. While the wheel bridge structure is mainly of bridge, which has limitation of width. You can click the above picture to check details.

Packing & Delivery

All the mucking loader will be deliveried in container, without packing.
But machine will be fixed well from top to container and also bottom to container.
The delivery time is 15 working days after your payment.

Our Company

Henan Pssroh company is a specialized manufacturer and trade of mucking loader Machine and electric dumper truck, integrating development and production. We are holding this line for more than 29 years, with well-equipped testing facilities and strong technical force. Our products are exported to many countries all over the world. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in construction, woodworking and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

Warranty

(1)The mucking loader all parts quality assurance period for 12 months. In normal use circumstances, there is any quality problem during warranty period, we will use DHL, UPS, or other express delivery to send the accessories freely for customers after determine the damaged parts.
(2)We will try our best effort to solve, whenever customers have a problem.
