- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZING EAR
-
Model Number:
-
G303R-130E01B1-100
-
Max. Current:
-
3A
-
Operating Temperature:
-
-40~85℃
-
Protection Level:
-
IP67
-
Application:
-
Automatic Equipment
-
Mechanical Life:
-
50000-10000000/cycles
-
Product Series:
-
G3 Series Micro Switch
-
Insulation Resistance:
-
≥100M (500VDC) Max
-
Contact Resistance:
-
≤100MΩ (Initial value)
-
Operating Speed:
-
0.1mm-1m/s
-
Operating Frequency:
-
Mechanical 60 cycles/min; Electrical 15 cycles/min.
-
Color:
-
black
-
Product Name:
-

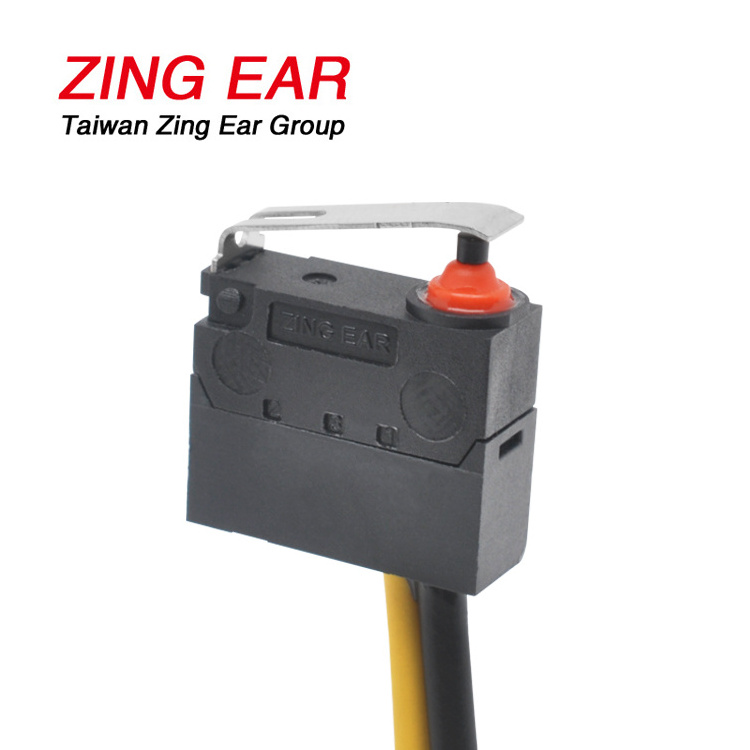

IP67 Waterproof Micro Switch
-
Certification:
-
ENEC,CQC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZING EAR
-
Model Number:
-
G303R-130E01B1-100
-
Max. Current:
-
3A
-
Operating Temperature:
-
-40~85℃
-
Protection Level:
-
IP67
-
Application:
-
Automatic Equipment
-
Mechanical Life:
-
50000-10000000/cycles
-
Product Series:
-
G3 Series Micro Switch
-
Insulation Resistance:
-
≥100M (500VDC) Max
-
Contact Resistance:
-
≤100MΩ (Initial value)
-
Operating Speed:
-
0.1mm-1m/s
-
Operating Frequency:
-
Mechanical 60 cycles/min; Electrical 15 cycles/min.
-
Color:
-
black
-
Product Name:
-
IP67 Waterproof Micro Switch
-
Certification:
-
ENEC,CQC
Products Description
|
Rating
|
0. 1A, 125/250VAC; 3A/12VDC;0. 1A/48VDC ;U1E5
|
|
|
|
|||
|
Electrical
|
0. 1A-120 cycles/minute; 3A-10~30 cycles/minute
|
|
|
|
|||
|
Mechanical
|
120 Cycles/minute
|
|
|
|
|||
|
Contact Resistance(Initiative)
|
100m Ω Max (without wire type)
|
|
|
|
|||
|
Insulation Resistance (at500VDC)
|
100m Ω Min
|
|
|
|
|||
|
Vibration Durability
|
10~55Hz,move 0. 75mm (p-p)
|
|
|
|
|||
|
Dielectric Strength
|
500VAC (50~60Hz)
|
|
|
|
|||
|
Storage Temperature
|
-40°C ~ + 85°C
|
|
|
|
|||
|
Storage Humidity
|
85% RHMax
|
|
|
|
|||
|
Electrical
|
Min. 100, 000 cycles(Depend on part NO.)
|
|
|
|
|||
|
Mechanical
|
Min. 500, 000 cycles
|
|
|
|
|||
|
Application
|
|
|
|
|
||||
|
Small automobile
|
Appliance
|
Industrial Control Designs
|
Side door lock
|
|
||||
|
An electric toothbrush
|
Toys
|
Charging adapter plug
|
Air-Conditioner
|
|
||||
