Quick Details
-
Brand Name:
-
ZGSM
-
Model Number:
-
ZGSM-LD40Kmini
-
Color Temperature(CCT):
-
3000-5700K
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
AC/DC
-
Lamp Luminous Efficiency(lm/w):
-
140, 140-160
-
Lamp Luminous Flux(lm):
-
5600
-
Working Temperature(℃):
-
-40 - 50
-
Power Supply:
-
Solar / AC / DC
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Product name:
-
Modular street light
-
Keyword:
-
Solar Led Street Light Lamp
-
Lamp Body Material:
-
Aluminum Alloy
-
LED Light Source:
-
Lumileds 3030 / 5050
-
Lamp Power(W):
-
40
-
LED Driver:
-
Meanwell /Inventronics
-
Power Factor (PF):
-
> 0.95
-
Lens Type:
-
TYPE II / TYPE II BLS
Quick Details
-
Warranty(Year):
-
5-Year
-
Lighting solutions service:
-
DIALux evo layout
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZGSM
-
Model Number:
-
ZGSM-LD40Kmini
-
Color Temperature(CCT):
-
3000-5700K
-
CRI (Ra>):
-
70
-
Input Voltage(V):
-
AC/DC
-
Lamp Luminous Efficiency(lm/w):
-
140, 140-160
-
Lamp Luminous Flux(lm):
-
5600
-
Working Temperature(℃):
-
-40 - 50
-
Power Supply:
-
Solar / AC / DC
-
Lifespan (hours):
-
100000
-
Working Time (hours):
-
100000
-
Product name:
-
Modular street light
-
Keyword:
-
Solar Led Street Light Lamp
-
Lamp Body Material:
-
Aluminum Alloy
-
LED Light Source:
-
Lumileds 3030 / 5050
-
Lamp Power(W):
-
40
-
LED Driver:
-
Meanwell /Inventronics
-
Power Factor (PF):
-
> 0.95
-
Lens Type:
-
TYPE II / TYPE II BLS
|
Product Name
|

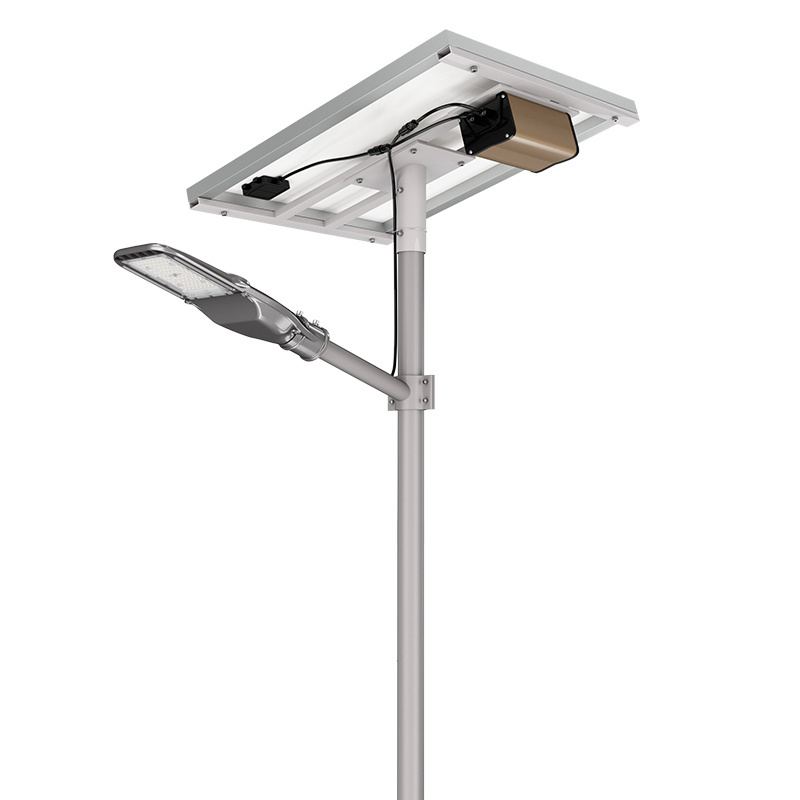

Solar street light system lamp head
|
|
|
Series No
|
Series Kmini
|
|
|
Power
|
20W, 28W, 30W,38W, 40W, 50W, 57W, 60W
|
|
|
Efficacy
|
140-160lm/W
|
|
|
Input Voltage
|
100-240/277 VAC, 50 / 60 Hz
|
|
|
Power Factor
|
>0.95
|
|
|
Surge Protection
|
10KV (Default) / 20KV (available on request)
|
|
|
IP Rating
|
IP66
|
|
|
IK Rating
|
IK10
|
|
|
CCT
|
3000K, 4000K, 5000K, 5700K
|
|
|
CRI
|
Ra>70 (Default) / Ra>80
|
|
|
Operating Temperature
|
-40°C to + 50°C
|
|
|
Beam Angle
|
Type II, Medium;
|
|
|
Mounting Option
|
Side entry or Vertical pole mounted ( with extra adapter)
|
|
|
Warranty
|
5 Years
|
|
|
Certification
|
ENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
|
|
|
Control
|
Photocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, Timing Dimming, 1-10V Dimmable, Zigbee or LORA control
|
|
|
|
||
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements . Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-7 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.
