Established in 2008, dedicated to the manufacturing of electronic components, sales of electronic products, wholesale and retail
of electronic components, production and research and development. Our products are widely used in the industrial sector for
safety distance measurements, providing customers with standardized and customized industrial automation safety equipment.
- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
manual installation
-
Description:
-

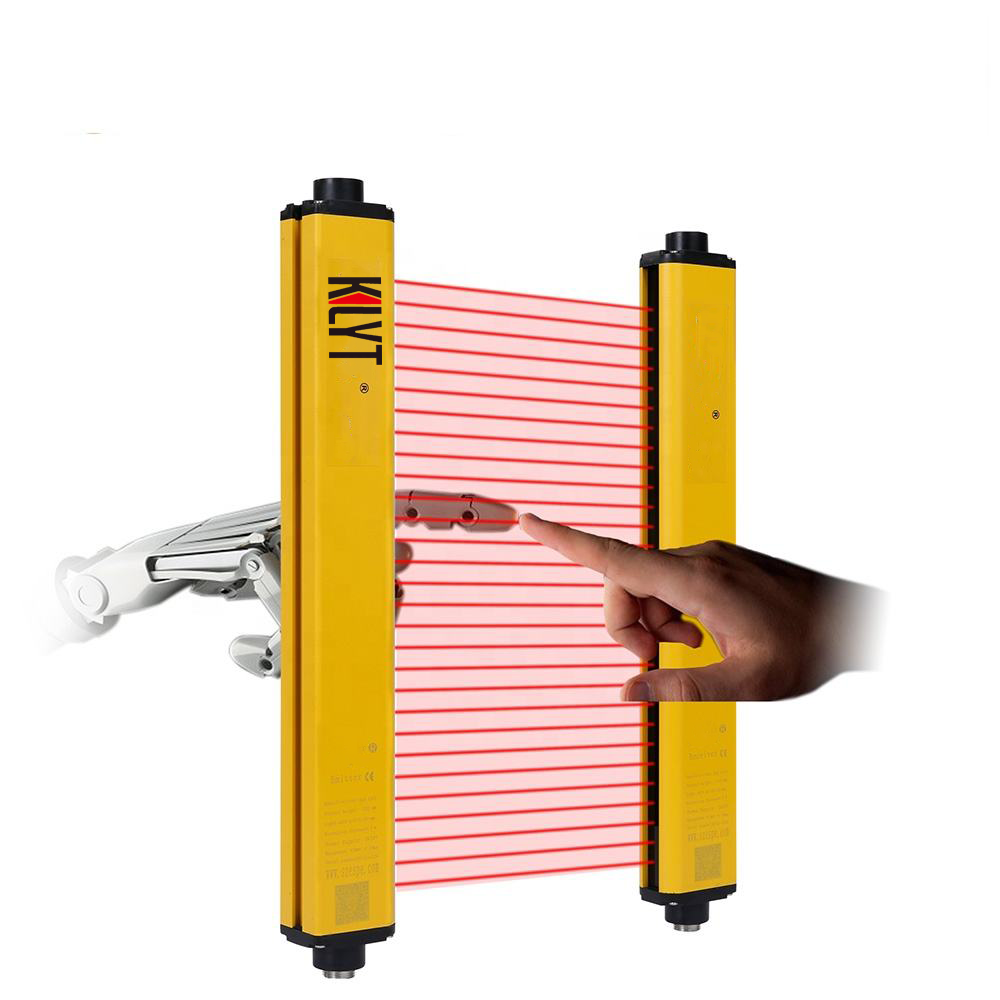

Light curtain Sensor, GSN series universal security grating, Light curtain Sen
-
Model Number:
-
GSN-007010
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KLYT
-
Theory:
-
light curtain
-
Output:
-
NPN, PNP, Relay NO, Relay NC
-
Power voltage:
-
DC 24 V±20%
-
Response time:
-
< 10 ms
-
Safety level:
-
Type 4
-
Power supply:
-
<5w
-
Emission light source:
-
940nm
-
Optical axis spacing:
-
10mm 20mm 40mm
-
Light curtain form:
-
contractibility
-
Light source:
-
Special infrared LED
Quick Details
-
Use:
-
safety light curtain
-
Series:
-
GSN series universal security grating
-
Features:
-
transmissibility, Cost-effective safety light curtai
-
Mounting Type:
-
manual installation
-
Description:
-
Light curtain Sensor, GSN series universal security grating, Light curtain Sen
-
Model Number:
-
GSN-007010
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KLYT
-
Theory:
-
light curtain
-
Output:
-
NPN, PNP, Relay NO, Relay NC
-
Power voltage:
-
DC 24 V±20%
-
Response time:
-
< 10 ms
-
Safety level:
-
Type 4
-
Power supply:
-
<5w
-
Emission light source:
-
940nm
-
Optical axis spacing:
-
10mm 20mm 40mm
-
Light curtain form:
-
contractibility
-
Light source:
-
Special infrared LED
Welcome to KLYT
Here we just show an example, please contact us for more models.
You're special for us and deserve our best service.
1
.
Cost effective, saves you money
2
.
Fast delivery time to ensure your delivery
3
.
ODM and OEM services to ensure the right model
4
.
Professional technical service support
5
.
15 years of experience and top 2 factories in China ensure your quality
Certifications
Product Parameter
|
Protective Height
|
440mm (customized)
|
NO. of beam
|
6,8,10,12.... (can be customized)
|
||
|
Sensing distance
|
0.1-5m (standard), can be customzed in 0.1-20m
|
|
|
||
|
Protective circuit
|
Overvoltage protection, power supply reverse polariy protection, overcurrent protection
|
|
|
||
|
Beam Gap
|
10/20/40mm
|
Resolution
|
20/30/50mm
|
||
|
Power Volatge
|
DC24V ±20%
|
Output Current
|
≤200mA
|
||
|
Watts
|
<5W
|
Response Time
|
<10ms
|
||
|
Insulation Resistance
|
≥100MΩ
|
Detection Mode
|
Thru-beam
|
||
|
Sectional area
|
35*53mm
|
Working temperature
|
-10 °C - 55°C
|
||
|
Anti-interference
|
yes 10000lux
|
Output type
|
NPN/ PNP
|
||
Our Services
Company Introduction
Guangzhou Yanbei Technology Co., Ltd
FAQ
Q1 : What is the MOQ?
A1: 1pcs for our own available designs.
Q2 : Can I customize a special switch?
A2: Sure.
Q3 : Can I get a lower price if I order large quantities?
A3 : Yes, Cheaper prices with bigger size orders.
Q4 : Can I get a sample?
A4 : Of course, but you need to pay the minimum sample fee.
Q5 : When will you ship my order?
A5 : 1 day shipping guarantee for stock item and 2 weeks for non-stock items.
Q6 : How about the quality guarantee period ?
A6 : Our warranty period is 3 years since from shipping date.
Q7 : Can I add or delete items from my order if I change mind?
A7 : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
Q8 : How can you guarantee the production quality?
A8 : The quality of our products has passed CCC&CE certification. We have 5+ years professional sensor manufacturing history.
A1: 1pcs for our own available designs.
Q2 : Can I customize a special switch?
A2: Sure.
Q3 : Can I get a lower price if I order large quantities?
A3 : Yes, Cheaper prices with bigger size orders.
Q4 : Can I get a sample?
A4 : Of course, but you need to pay the minimum sample fee.
Q5 : When will you ship my order?
A5 : 1 day shipping guarantee for stock item and 2 weeks for non-stock items.
Q6 : How about the quality guarantee period ?
A6 : Our warranty period is 3 years since from shipping date.
Q7 : Can I add or delete items from my order if I change mind?
A7 : Yes, but you need to tell us asap, if your order has been done in our production line, we cannot change it.
Q8 : How can you guarantee the production quality?
A8 : The quality of our products has passed CCC&CE certification. We have 5+ years professional sensor manufacturing history.
