Quick Details
-
Brand Name:
-
SIMITIE
-
Model Number:
-
SA400
-
Operation System:
-
Android 12
-
CPU:
-
4 x ARM-A73
-
NPU:
-
6.7T
-
RAM/ROM:
-
4GB/16GB
-
Multimedia Framework Agreement:
-
ITU-T H.323/SIP
-
Camera:
-
4K lens, 116 degree wide-angle
-
Audio Input:
-
8mems array pickup-8meters
-
Additional Function:
-
Voice Tracking, Frame Selection of Participants, Panoramic Display
-
APK Support:
-
ZOOM, Webex, MS Teams, etc.
-
Power:
-
20W
Quick Details
-
Type:
-
Network Conference System, Video Conference System
-
Function:
-
Voice Tracking
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIMITIE
-
Model Number:
-
SA400
-
Operation System:
-
Android 12
-
CPU:
-
4 x ARM-A73
-
NPU:
-
6.7T
-
RAM/ROM:
-
4GB/16GB
-
Multimedia Framework Agreement:
-
ITU-T H.323/SIP
-
Camera:
-
4K lens, 116 degree wide-angle
-
Audio Input:
-
8mems array pickup-8meters
-
Additional Function:
-
Voice Tracking, Frame Selection of Participants, Panoramic Display
-
APK Support:
-
ZOOM, Webex, MS Teams, etc.
-
Power:
-
20W
Products Description

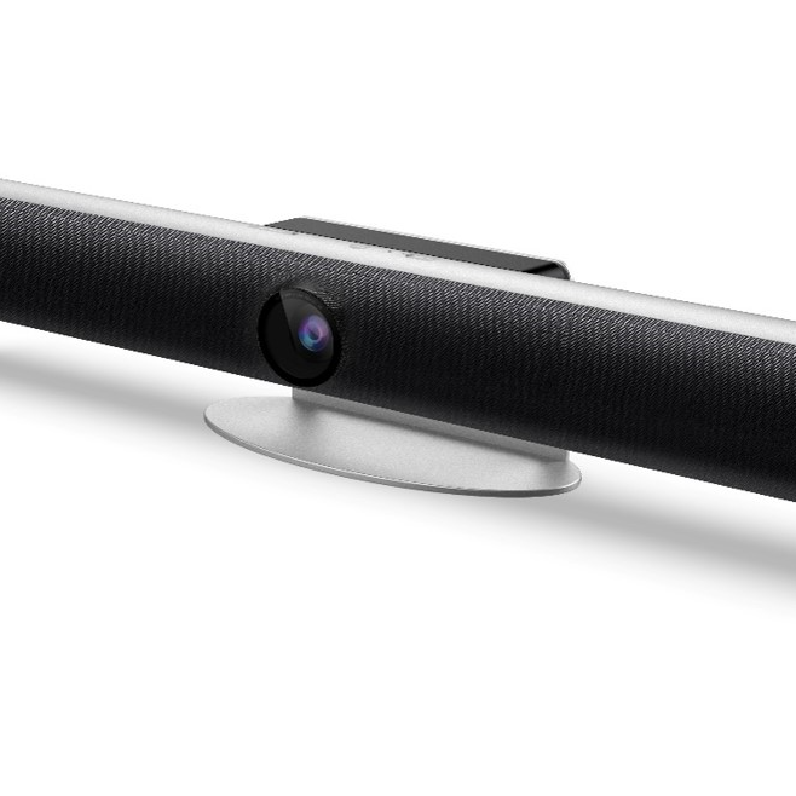

SIMITIE Android12 4K Camera HDMI Webcam 4k Plug And Play Video Conferencing Camera
ODM/OEM WELCOME!
Main Features
- Open system, supports conference software with built-in traditional H.323/SIP protocol, can be connected to standard H.323/SIP conference terminals and MCU; supports various Android cloud video clients to run, cloud video conference brands such as: ZOOM,Tencent Conference, DingTalk, Webex, etc.
- Integrated 4K lens,116-degree wide-angle; supports dual-channel 1080P60 encoding and 4K60 decodin.
- Video supports two-way input and dual-screen output, with simultaneous display and different display.
- Integrated 8mems. combined with BF DOA.3ADER and other algorithm technologies, the maximum pickup distance can reach 8 meters, and lip synchronization is supported.
- Integrated dual 10W speakers, medium and high frequency speakers with low frequency diaphragm, satisfying full audio coverage of small and medium conference rooms.
- Support intelligent broadcasting function, which is mainly manifested in the application of modes such as frame selection of participants, gathering of speakers, and panoramic display.
- Support 4 times digital zoom, support electronic PTZ.
- Convenient control, equipped with a Bluetooth remote control, supports air mouse operation, and meets the needs of cloud video conferencing software interface operations.
· Support privacy protection function, manual mechanical switchof the lens cover, privacy protection is more assured.
· Support UVC/UAC technology to provide high-quality audioand video conferencing effects.
· Support 323/SIP system startup item customization.
Specification
|
System
|
|
|
|
|
||||
|
Operating System
|
Android 12
|
|
|
|
||||
|
CPU
|
4 X ARM-A73
|
|
|
|
||||
|
NPU
|
6.7T
|
|
|
|
||||
|
RAM
|
4GB
|
|
|
|
||||
|
ROM
|
16GB
|
|
|
|
||||
|
Communication Protocols
|
|
|
|
|
||||
|
Multimedia Framework Agreement
|
ITU-T H.323; IETF SIP
|
|
|
|
||||
|
Video Codec Protocol
|
VP8, VP9, H.264, H.265
|
|
|
|
||||
|
Audio Coding Protocol
|
G.711, G.722, G.722.1, G.722.1C, AAC-LC, AAC-LD, G.279, Silk, Opus
|
|
|
|
||||
|
Dual-stream Protocol
|
ITU-T H.239, BFCP
|
|
|
|
||||
|
Other Communication Protocols
|
H.225, H.235, H.245, H.281, FECC, RFC2833, DTMF, SRTP, SNTP, TLS
|
|
|
|
||||
|
Network Transport Protocols
|
IPv6/IPv4, TCP/IP, RTP, RTCP, HTTP/HTTPS, TELNET, SSH, DNS, DHCP, TR069
|
|
|
|
||||
|
Audio / Video Features
|
|
|
|
|
||||
|
Built-in Camera
|
8 million pixels, 116-degree wide-angle, apperture F/1.8, 4x digital zoom
|
|
|
|
||||
|
Image Resolution
|
HDMI input; maximum support 4KP60
|
|
|
|
||||
|
|
Encoding resolution; maximum support 1080P60
|
|
|
|
||||
|
|
HDMI output 1: maximum support 4K60
|
|
|
|
||||
|
|
HDMI output 2: maximum support 1080P60
|
|
|
|
||||
|
Other Image Properties
|
Active dual stram
|
|
|
|
||||
|
|
H.264 1080p60 encoding, support 4KP60 H.264 H.265 decoding
|
|
|
|
||||
|
|
Support PIP, POP, single display, dual-screen same display/different display and other multi-screen modes.
|
|
|
|
||||
|
Audio Features
|
Support BF, DOA, audio 3A(AEC, AGC, ANS), DER and other algorithms; Support lip synchronization
|
|
|
|
||||
|
|
Support extended USB SpeakerPhone
|
|
|
|
||||
|
Meeting Experience Features
|
|
|
|
|
||||
|
Language
|
Chinese, English
|
|
|
|
||||
|
|
Support H.323/SIP video conferencing and cloud video conferencing modes can be switched.
|
|
|
|
||||
|
|
Support AI algorithms such as face detection, human body detection, intelligent broadcasting(frame selection of participants, gathering speakers, panoramic display,etc) video face AE, etc
|
|
|
|
||||
|
|
Support to be configured as a peripheral device, used as a USB camera for PC, and transimit high-quality audio and video to PC or other devices through UVC/UAC
|
|
|
|
||||
|
|
The remote control supports air mouse operation, which solves the UI operation problem in cloud video conferencing.
|
|
|
|
||||
|
Bandwidth
|
256Kbps-8Mbps
|
|
|
|
||||
|
Security And Stability
|
|
|
|
|
||||
|
|
IPv4/IPv6; number call; Super error correction(SEC), lost packet retransmission (ARQ), video forward error correction (FEC0), intelligent speed control (IRC), audio backward error correction (PLC).
|
|
|
|
||||
|
Cyber Security
|
Support H.235, SRTP, TLS, HTTPS and other encryption modes to ensure the safety and reliability of the conference system.
|
|
|
|
||||
|
|
Use with the management platform
|
|
|
|
||||
|
|
The platform supports public cloud and privatization deployment, and can manage devices in bethes.
|
|
|
|
||||
|
|
Management operations such as configuration distribution and upgrade can be performed on individual/batch operation terminals.
|
|
|
|
||||
|
|
The platform supports user hierarchical management and authority management.
|
|
|
|
||||
|
|
Ambient temperature: -10°C ~ 45°C
|
|
|
|
||||
|
|
Relative humidity: 5% ~ 90% (non-condensing)
|
|
|
|
||||
|
|
Altitude: less than 5000 meters above sea level
|
|
|
|
||||
|
Hardware Interface Specifications
|
|
|
|
|
||||
|
Video Input Interface
|
1*HDMI; 1*Built-in 4K lens
|
|
|
|
||||
|
Video Output Interface
|
1*HDMI OUT1: Support CEC, maximum resolution 4KP60
1*HDMI OUT2: Support CEC, maximum resolution 4KP30
|
|
|
|
||||
|
Audio Input Interface
|
1*HDMI; 1*V3.5mm Line IN, 8mems array pickup
|
|
|
|
||||
|
Audio Output Interface
|
1*HDMI; 1*V3.5mm Line OUT, Left and right dual 10W speakers
|
|
|
|
||||
|
Network Interface
|
1*10/100/1000M network port; 1*POE network port(can be connected to the conference control tablet)
|
|
|
|
||||
|
Other Interface
|
1*USB2.0 OTG TypeC; 2*USB3.0 Host USBA; 1*USB MIC interface, support external USB mic.
|
|
|
|
||||
|
Size
|
|
|
|
|
||||
|
Terminal Size
|
720.4mm*130.3mm*139.6(L*W*H)
|
|
|
|
||||
|
Package Size
|
790mm*243mm*180mm(L*W*H)
|
|
|
|
||||
|
Nw. / Gw.
|
3.5KG / 5.1KG
|
|
|
|
||||
|
Electrical Characteristics
|
|
|
|
|
||||
|
Operating Voltage
|
DC 12V 2A
|
|
|
|
||||
|
Working Frequency
|
50Hz ~ 60Hz
|
|
|
|
||||
|
Maximum Power Consumption
|
20W
|
|
|
|
||||
Application Scenarios
Certifications
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
About Us
SIMITIE CORPORATION
SIMITIE CORPORATION
is an innovative enterprise specializing in video conferencing all-in-one machines and PTZ cameras. Here is our product introduction and advantages:
Video Conferencing All-in-one Machine:
Our video conferencing all-in-one machine uses high-definition cameras and high-quality speakers to achieve high-definition video and clear sound in video conferencing. At the same time, our product supports multiple platforms and software, such as Zoom, Teams, Skype, etc., making it easy to conduct remote video conferences with others.
PTZ Camera:
Our PTZ camera has excellent image quality and a wide viewing angle, capturing every corner of the meeting room. At the same time, our camera also has autofocus, light compensation and other functions, providing clear images under different lighting conditions.
Advantages:
Our company has rich experience and professional knowledge in video conferencing and camera technology. Our products not only have a beautiful appearance and excellent performance, but also a reasonable price, making them your best choice for video conferencing and filming. In addition, we provide comprehensive after-sales service to provide you with all-round support for your use.
One-stop Service
Complete R&D team, SMT workshop, assembly factory, full control from product concept to finished product to delivery.
IS09001 Factory
ISO9001 international quality management system, standardized production process and product quality inspection.
R&D and innovation
Complete R&D system with over 20 years of experience in the industry, releasing over 10 new products every year.
Why Choose Us
1. Professional R&D center:
SIMITIE
has 10+ years of experience designing and manufacturing video cameras. With professional R&D staff representing 40% of our workforce, we have used this wealth of technical and design expertise to obtain over 39 patents for a comprehensive range of technologies.
SIMITIE
has become a successful creator of smart solutions by satisfying clients through technological innovation and excellent quality
2. High quality: Using high quality material and establishing a strict quality control system, assigning specific persons in charge of each part of production, from raw material purchase to assembly.
3. Small order accepted: Low MOQ accepted. 1pc is available.
1. Professional R&D center:
SIMITIE
has 10+ years of experience designing and manufacturing video cameras. With professional R&D staff representing 40% of our workforce, we have used this wealth of technical and design expertise to obtain over 39 patents for a comprehensive range of technologies.
SIMITIE
has become a successful creator of smart solutions by satisfying clients through technological innovation and excellent quality
2. High quality: Using high quality material and establishing a strict quality control system, assigning specific persons in charge of each part of production, from raw material purchase to assembly.
3. Small order accepted: Low MOQ accepted. 1pc is available.
2. High quality: Using high quality material and establishing a strict quality control system, assigning specific persons in charge of each part of production, from raw material purchase to assembly.
3. Small order accepted: Low MOQ accepted. 1pc is available.
FAQ
1. What's your payment term and payment method?
FOB / EXW. 30% TT in advance and balance before shipment. We Accept T/T, Cash asthe payment method.
2. What's your warranty period?
The warranty period is 3 years.
3. Could I put my own Logo on products?
Yes, we support OEM(Original Equipment Manufacturer), ODM(Original Design Manufacturer) and JDM(Joint design and manufacturing). Please share your idea and we will satisfy your need. First-class quality and Best Price for you.
Contact us can get more discount.
4.How do you guarantee the quality?
After finishing the machine aging test, Our QC Team will inspect all goods before packing, andensure that all machines leaving the factory are qualified products.
5. Do you have any Certification?
Sure, we haveCE/FCC/RoHS/UKCA/WEEE Certifications.
6. Where is your company?
We located in Shenzhen,Guangdong Province.
7. What is your MOQ?
One Set
8. What is delivery time?
Sample orders can be delivered successfully within 2-7 days. Bulk orders are shipped from our factory by sea, by air or by express. (Depends on order quantity and requirements.), usually within 30 days to complete the preparation and delivery. Contact us today.
