Quick Details
-
Product Name:
-

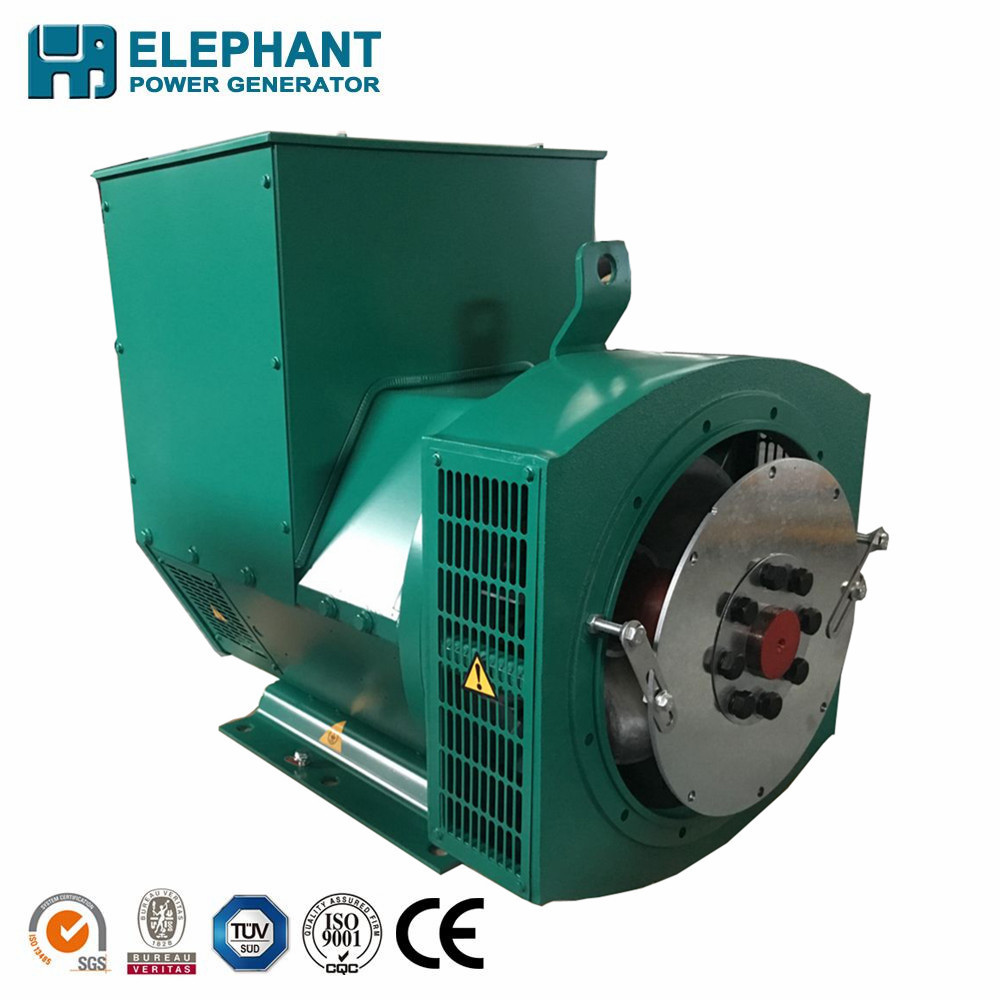

15kw 20kw 30kw Brushless Synchronous Generator Head
-
Insulation system:
-
Class H
-
Color:
-
Option
-
AVR:
-
Yes
-
Phase:
-
1 Phase
-
Bearing:
-
Single
-
Exciting method:
-
Brushless Self-exciting
-
Warranty time:
-
18months
Quick Details
-
Rated Power:
-
15KW
-
Rated Voltage:
-
110-220V
-
Frequency:
-
50HZ
-
Product Name:
-
15kw 20kw 30kw Brushless Synchronous Generator Head
-
Insulation system:
-
Class H
-
Color:
-
Option
-
AVR:
-
Yes
-
Phase:
-
1 Phase
-
Bearing:
-
Single
-
Exciting method:
-
Brushless Self-exciting
-
Warranty time:
-
18months
|
||||||||
|
2. Full-damping whole salient construction guarantee generator to operate stably in any condition, and enable it to overspeed running under 150% rated r/p/m.
3. Adjusting rate of stable voltage<±1%, adjusting rate of instant voltage: -15% ~+20% 4. wave aberration rate of voltage, harmony wave factor of telephone THF<2.5%, effective factor of telephone TIF<50 Applications This series generator has been extensively utilized as a standby power supply on post and telecommunication institutes, banks, stock exchange centers, airports, hospitals, hotels, commercial building and factories. It can also be applied as a prime power supply for ships, mines, and armies as well as highway construction and other rugged environments. Operating Condiyions: Under the following environment, The generator could be continuous and rated running: Above sea level: Not exceed 1000m Cooling air temperature: 258~313K(-15 o C ~ 40 o C) Relative air damping: not exceed 90% |
||||||||
|
Technical Date |
||||||||
|
Model
|
Frame No
|
Rated Power
|
Rated Volt.
(V) |
Rated Current
(A) |
Power Factor
cos |
Freq.
(Hz) |
Rated Speed
(r/min) |
|
|
kW
|
kVA
|
|||||||
|
TWG-5
|
160
|
5
|
6.25
|
400
|
9
|
0.8
|
50
|
1500
|
|
TWG-7.5
|
160
|
7.5
|
9.38
|
400
|
13.6
|
0.8
|
50
|
1500
|
|
TWG-10
|
180
|
10
|
12.5
|
400
|
18.1
|
0.8
|
50
|
1500
|
|
TWG-12
|
180
|
12
|
15
|
400
|
21.7
|
0.8
|
50
|
1500
|
|
TWG-15
|
180
|
15
|
18.8
|
400
|
27.1
|
0.8
|
50
|
1500
|
|
TWG-20
|
180
|
20
|
25
|
400
|
36.1
|
0.8
|
50
|
1500
|
|
TWG-24
|
180
|
24
|
30
|
400
|
43.3
|
0.8
|
50
|
1500
|
|
TWG-30
|
225
|
30
|
37.5
|
400
|
54.1
|
0.8
|
50
|
1500
|
|
TWG-40
|
225
|
40
|
50
|
400
|
72.2
|
0.8
|
50
|
1500
|
|
TWG-50
|
225
|
50
|
62.5
|
400
|
90.2
|
0.8
|
50
|
1500
|
|
TWG-64
|
225
|
64
|
80
|
400
|
115.5
|
0.8
|
50
|
1500
|
|
TWG-75
|
225
|
75
|
93.8
|
400
|
135.3
|
0.8
|
50
|
1500
|
|
TWG-90
|
250
|
90
|
112.5
|
400
|
162.4
|
0.8
|
50
|
1500
|
|
TWG-100
|
250
|
100
|
125
|
400
|
180.4
|
0.8
|
50
|
1500
|
|
TWG-120
|
250
|
120
|
150
|
400
|
216.5
|
0.8
|
50
|
1500
|
|
TWG-150
|
250
|
150
|
187.5
|
400
|
270.6
|
0.8
|
50
|
1500
|
|
TWG-200
|
315
|
200
|
250
|
400
|
360.8
|
0.8
|
50
|
1500
|
|
TWG-250
|
315
|
250
|
312.5
|
400
|
451.1
|
0.8
|
||
