Quick Details
-
Brand Name:
-
ZICAR
-
Voltage:
-
220V,50HZ
-
Dimension(L*W*H):
-
1240x515x275mm
-
Weight (KG):
-
102 KG
-
Power (kW):
-
0.75
-
Machine:
-
surface planer & jointer , 150mm wood planer machine for sale
-
Table Size:
-
1215X185mm
-
Cutterhead Number of knives:
-
3
-
Cutterhead Diameter:
-
61mm
-
Fence Size:
-
740x98mm
-
Fence Tilt:
-
45°in and out
-
Cutting capacity Width:
-
152mm Depth: 3.175mm
-
Cutting capacity Rabbeting:
-
12.7mm
-
Weight:
-
102/106Kg
-
Power:
-
750W
Quick Details
-
Max.Planing Depth(mm):
-
3.17 mm
-
Max.Planing Width(mm):
-
152
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZICAR
-
Voltage:
-
220V,50HZ
-
Dimension(L*W*H):
-
1240x515x275mm
-
Weight (KG):
-
102 KG
-
Power (kW):
-
0.75
-
Machine:
-
surface planer & jointer , 150mm wood planer machine for sale
-
Table Size:
-
1215X185mm
-
Cutterhead Number of knives:
-
3
-
Cutterhead Diameter:
-
61mm
-
Fence Size:
-
740x98mm
-
Fence Tilt:
-
45°in and out
-
Cutting capacity Width:
-
152mm Depth: 3.175mm
-
Cutting capacity Rabbeting:
-
12.7mm
-
Weight:
-
102/106Kg
-
Power:
-
750W
Product Paramenters

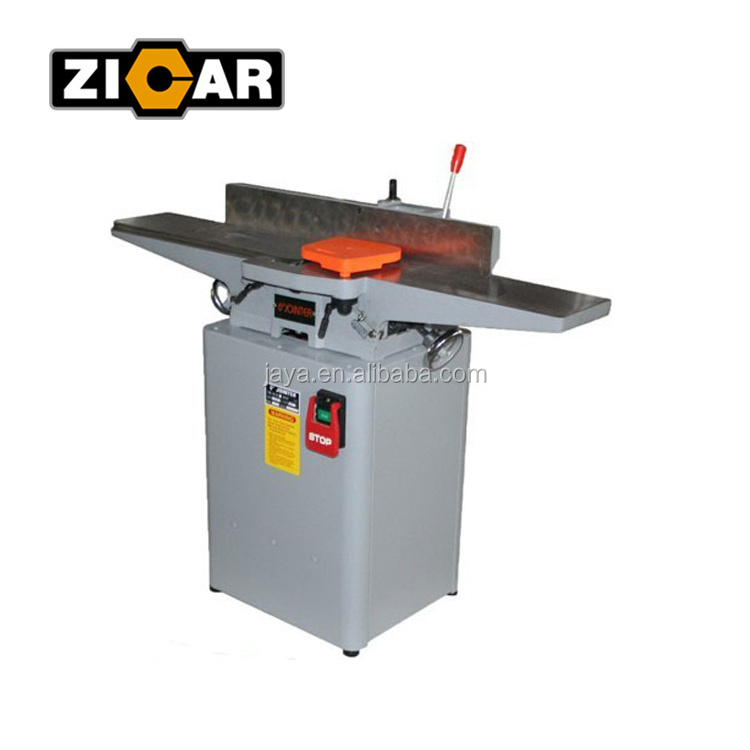

surface planer & jointer , 150mm wood planer machine for sale
Surface Planer
Feature：
2. Side fence tilting locker for easy access and quick action
3. Close-up Ladder-shaped with rubber feet for easy assembly and great stability
4. Central mounted two-way tilting fence wiht positive stops at 45 and 90
Surface Planer
Advantages
Reliability: The worktables can be adjusted by means of parallelogram shaped connecting rods which allow perfect parallel adjustment of the tables and guarantees a constant distance between these and the cutter block, at any cutting depth.
This solution eliminates machining defects caused by vibrations, even with heavy stock removal.
Flexibility: The very long, ribbed, cast iron worktables allow perfect straightening of very long parts. Tiltable planing fence
for any type of machining.
Ergonomics: Ergonomically positioned control panel at the front of the machine, easily accessible by the operator.
Reliability: The worktables can be adjusted by means of parallelogram shaped connecting rods which allow perfect parallel adjustment of the tables and guarantees a constant distance between these and the cutter block, at any cutting depth.
This solution eliminates machining defects caused by vibrations, even with heavy stock removal.
Flexibility: The very long, ribbed, cast iron worktables allow perfect straightening of very long parts. Tiltable planing fence
for any type of machining.
Ergonomics: Ergonomically positioned control panel at the front of the machine, easily accessible by the operator.
|
Model
|
SP-150A
|
|
Motor Input
|
1Hp
|
|
Table Size
|
1215X185mm
|
|
Cutterhead Speed
|
4400r.p.m/50Hz
|
|
Cutterhead Speed
|
5200r.p.m/60Hz
|
|
Cutterhead Number of knives
|
3
|
|
Cutterhead Diameter
|
61mm
|
|
Fence Size
|
740x98mm
|
|
Fence Tilt
|
45°in and out
|
|
Cutting capacity Width
|
152mm Depth:3.175mm
|
|
Cutting capacity Rabbeting
|
12.7mm
|
|
N.W./G.W
|
102/106Kg
|
|
Packing size
|
1240x515x275mm
|
|
Units/20'Container
|
150
|
