Quick Details
-
Brand Name:
-
REHE
-
Model Number:
-
RH-3UIF33
-
Accuracy Class:
-
0.5 class
-
Output Voltage:
-
0-9999
-
Operating Temperature:
-
-10℃~+55 ℃
-
Dimensions:
-
96*96mm
-
Color of avhz combined meter:
-
white/black
-
Accuracy of avhz combined meter:
-
0.5 class
-
Display:
-
Digital Display
-
Model number:
-
RH-3UIF33
-
Warranty:
-
3 years
-
Measurement Range:
-
0-9999
-
Phase of avhz combined meter:
-
Three Phase
-
Rated current:
-
AC 5A
-
Material of avhz combined meter:
-
abs plastic
-
Rated voltage:
-
AC 0-450V
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
0-9999
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
REHE
-
Model Number:
-
RH-3UIF33
-
Accuracy Class:
-
0.5 class
-
Output Voltage:
-
0-9999
-
Operating Temperature:
-
-10℃~+55 ℃
-
Dimensions:
-
96*96mm
-
Color of avhz combined meter:
-
white/black
-
Accuracy of avhz combined meter:
-
0.5 class
-
Display:
-
Digital Display
-
Model number:
-
RH-3UIF33
-
Warranty:
-
3 years
-
Measurement Range:
-
0-9999
-
Phase of avhz combined meter:
-
Three Phase
-
Rated current:
-
AC 5A
-
Material of avhz combined meter:
-
abs plastic
-
Rated voltage:
-
AC 0-450V
|

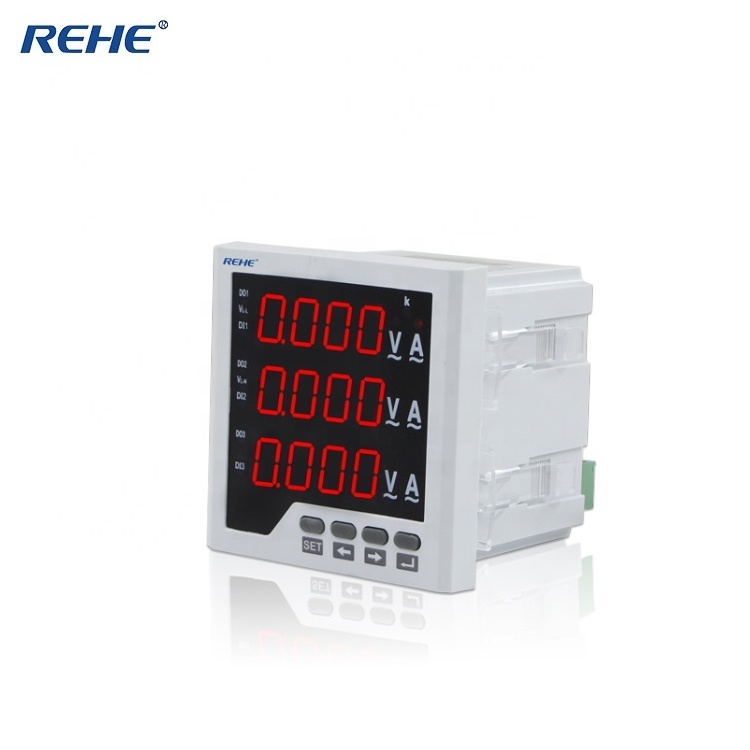

RH-3UIF33 |
||
|
Parameter |
Current,voltage,frequency |
|
|
Measure voltage |
AC 0-500 V |
|
|
Measure current |
Max AC 0~5 A(can add CT ) |
|
|
Measure Frequency |
45~65 Hz |
|
|
Frame size |
96*96mm |
|
|
Hole size |
91*91mm |
|
|
Connection mode |
Three Phase four wires,three phase three wires |
|
|
Power supply |
AC 220V , AC85~265V&DC100-300V,AC380V, AC100V (optional) |
|
|
Ext ra function |
4 way alarms , analog output , RS485 (optional) |
|
