Quick Details
-
Brand Name:
-
SAFER
-
Fork Length:
-
1820MM
-
Fork Width:
-
200MM
-
Overall Dimensions:
-
5430*2610*3020
-
Weight (KG):
-
17000 kg
-
Type:
-
25 tons diesel forklift
-
Weight:
-
30600KG
-
Lift height:
-
3000-5000mm
-
Mast:
-
2stage
-

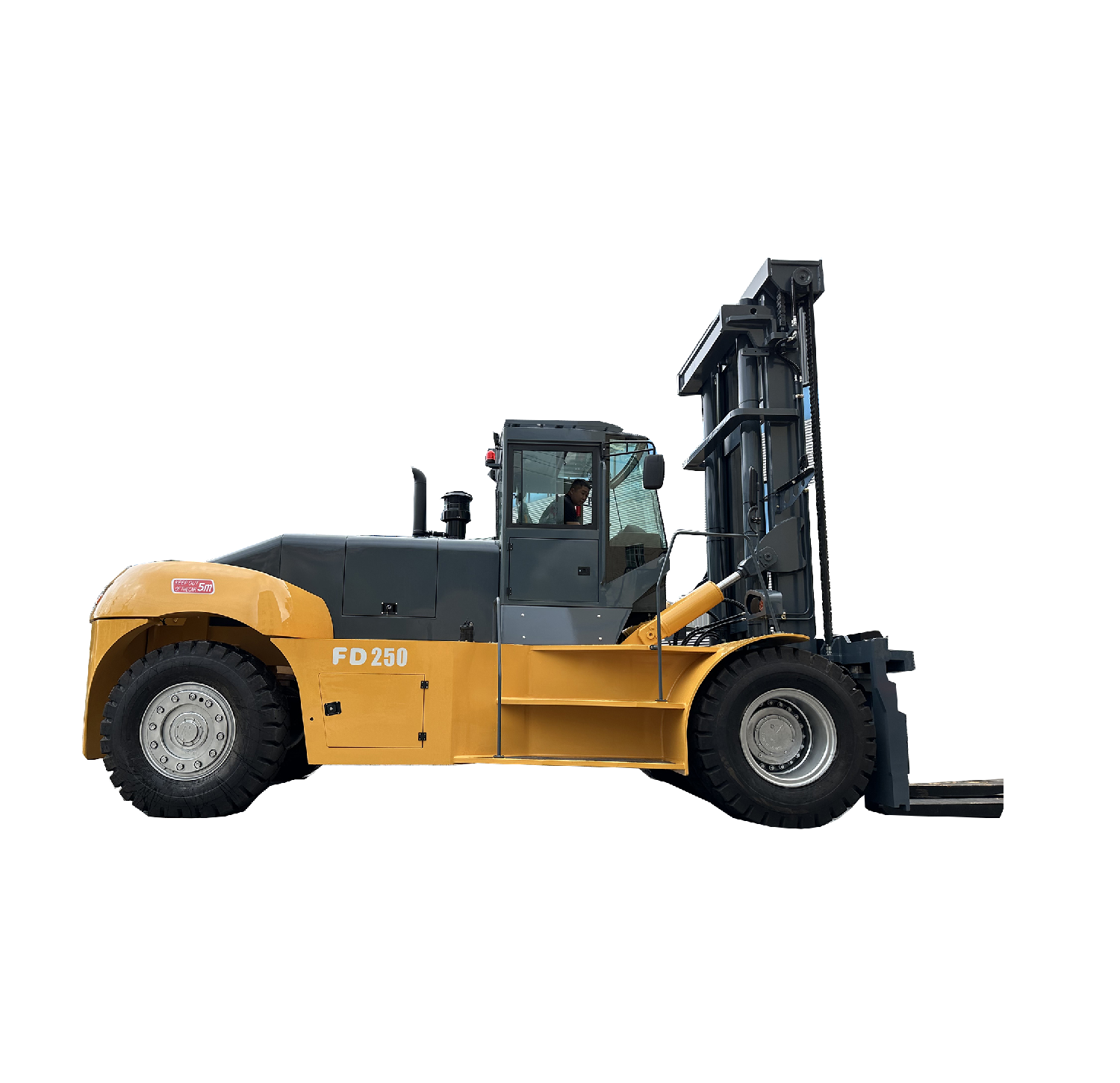

Product Name:
-
20 ton25ton 30 tons diesel forklift
-
Engine:
-
WEICHAI/CUMMINS Engine
-
Load Center:
-
900 Mm
-
Transmission:
-
autotransmisson
-
Brand:
-
SAFER
-
Turning radius:
-
5300mm
Quick Details
-
Min. Lifting Height:
-
200MM
-
Warranty:
-
2 years
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
SAFER
-
Fork Length:
-
1820MM
-
Fork Width:
-
200MM
-
Overall Dimensions:
-
5430*2610*3020
-
Weight (KG):
-
17000 kg
-
Type:
-
25 tons diesel forklift
-
Weight:
-
30600KG
-
Lift height:
-
3000-5000mm
-
Mast:
-
2stage
-
Product Name:
-
20 ton25ton 30 tons diesel forklift
-
Engine:
-
WEICHAI/CUMMINS Engine
-
Load Center:
-
900 Mm
-
Transmission:
-
autotransmisson
-
Brand:
-
SAFER
-
Turning radius:
-
5300mm
|
1
|
Model
|
|
FD20
|
FD250
|
|
2
|
Power Type
|
|
Diesel
|
Diesel
|
|
3
|
Rated Capacity
|
kg
|
20000
|
25000
|
|
4
|
Load Centre
|
mm
|
600
|
900
|
|
5
|
Lift Height
|
mm
|
3500
|
3500
|
|
6
|
Fork Size LxW*T
|
mm
|
1550x150x65
|
1550x150x65
|
|
7
|
Mast Tilt Angle F/R
|
Deg
|
6°/12°
|
6°/12°
|
|
8
|
Front Overhang (Wheel center to fork face)
|
mm
|
480
|
485
|
|
9
|
Ground Clearance (Bottom of mast)
|
mm
|
140
|
140
|
|
10
|
Length to face offork(Without fork)
|
mm
|
2730
|
2775
|
|
11
|
Overall Width
|
mm
|
1225
|
1225
|
|
12
|
Overall Dimension Mast Lowered Height
|
mm
|
2115
|
2115
|
|
13
|
Mast Extended Height(With backrest)
|
mm
|
4150
|
4150
|
|
14
|
Overhead Guard Height
|
mm
|
2090
|
2090
|
|
15
|
Turning Radius (outside)
|
mm
|
2440
|
2480
|
|
16
|
Min insecting aisle
|
mm
|
2490
|
2530
|
|
17
|
Speed
Travel (Empty load)
|
km/h
|
20
|
20
|
|
18
|
Speed
Lifting(Full load)
|
mm/s
|
510
|
510
|
|
19
|
Max.Gradeability
|
%
|
20
|
20
|
|
20
|
Tire
Front
|
mm
|
28 x9-15-12 PR
|
28 x9-15-12 PR
|
|
21
|
Tire
Rear
|
mm
|
6.50-10-10 PR
|
6.50-10-10 PR
|
|
22
|
Wheelbase
|
mm
|
1700
|
1700
|
|
23
|
Service weight
|
kg
|
18000
|
27000
|
|
24
|
Battery Voltage/Capacity
|
V/Ah
|
12/80
|
12/80
|
|
25
|
Model
|
|
6BG
|
6BG
|
|
26
|
Manufacture
|
|
ISUZU
|
ISUZU
|
|
27
|
Engine
Rated output/r.p.m.
|
kw
|
87/2500
|
95/2450
|
|
28
|
Engine
Rated torque/r.p.m.
|
N-m
|
137.7/1800
|
184.7/1600-1800
|
|
29
|
Engine
No.of Cylinder
|
|
4
|
4
|
|
30
|
Engine
BorexStroke
|
mm
|
86 x 102
|
95.4 X 107
|
|
31
|
Engine
Displacement
|
cc
|
2369
|
3059
|
|
32
|
Engine
Fuel Tank Capacity
|
L
|
60
|
60
|
|
33
|
Transmission
Type
|
|
Hydraulic
|
Hydraulic
|
|
34
|
Transmission
Stage FWD/RVS
|
|
1/1
|
1/1
|
|
35
|
Transmission
Operating Pressure for Attachment
|
Mpa
|
18
|
18
|
