12V 140Amp Voltage Sensitive Relay VSR Double Battery Automatic Dual Smart Battery Isolator

SMART BATTERY ISOLATOR(SBI)

ISOLATES SECONDARY BATTERY

WHILE KEEPING MAIN BATTERY

AT SUFFICIENT CHARGE

HEAVY DUTY POSITIVE &

NEGATIVE CABLES

REDUCED VOLTAGE DROP &

BETTER CHARGING

JAVA Dual Battery Kit automatically isolates your cranking battery - Eliminating flat batteries in the bush and enabling you to run your camp lighting and 12v accessories for longer!

If you are running a second battery or thinking about installing one, the JAVA Dual Battery Kit is the smart way to do it.

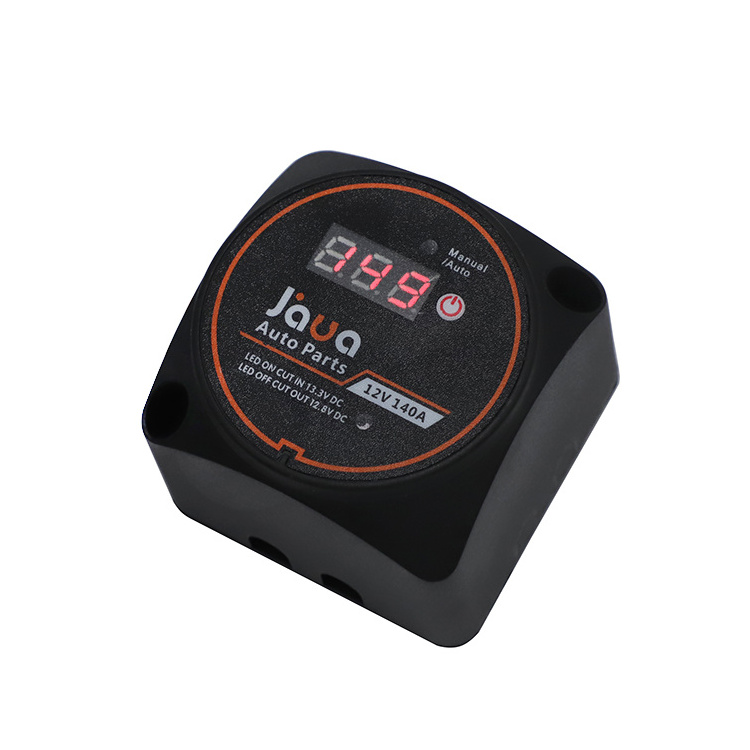

Located within the kit, the Smart Battery Isolator prevents your cranking battery from dipping below 12.8 volts, ensuring you always have enough charge to start your engine. Along with this, it enables your second battery to be charged reliably by your alternator.

Additionally, the kit also includes heavy-duty cables, copper crimp lugs and marine battery terminals.

With the JAVA Dual Battery Kit, your batteries will be fully charged for that next big trip away. Additionally, when you take care of your batteries, they last longer and perform better.

Voltage cut-in

13.3V

Voltage cut-off

12.8V

Smart Battery Isolator max amperage

140Amp

1. 1 x Smart Battery Isolator with mounting screws

1 x 600cm length of 10mm sq red cable

1 x 60cm Black earth cable

2 x Positive Marine battery terminals

1 x Negative Marine battery terminal

1 x SC25-10 Copper crimp lug

2 x 16-8 Copper crimp lugs

2 x Red heat shrink

1 x Insulated blue ring terminal

6 x 200mm cable ties
