Quick Details
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
ARM Cortex-A5
-
Memory:
-
ROM:8MB,RAM:16MB, Flash: 6MB/8MB/4MB (Optional)
-
Communication:
-
GPRS/4G, Wi-Fi (Optional)
-
Size of Amount Display Screen:
-
60mm*42mm
-
Card Slots:
-
1*SIM
-
Peripheral Ports:
-
1 * Powered Type-C
-
Speaker:
-
4Ω3W, 110±3dB
-
Protocol:
-
MQTT
-
Encryption Method:
-
TLS
-
Indicator Lights:
-
3 color LED indicator light (blue,green and red)
Quick Details
-
Model Number:
-
Z10-B
-
Country of Origin:
-
China
-
Brand Name:
-
HCCTG
-
Place of Origin:
-
Guangdong, China
-
CPU:
-
ARM Cortex-A5
-
Memory:
-
ROM:8MB,RAM:16MB, Flash: 6MB/8MB/4MB (Optional)
-
Communication:
-
GPRS/4G, Wi-Fi (Optional)
-
Size of Amount Display Screen:
-
60mm*42mm
-
Card Slots:
-
1*SIM
-
Peripheral Ports:
-
1 * Powered Type-C
-
Speaker:
-
4Ω3W, 110±3dB
-
Protocol:
-
MQTT
-
Encryption Method:
-
TLS
-
Indicator Lights:
-
3 color LED indicator light (blue,green and red)
Products Description

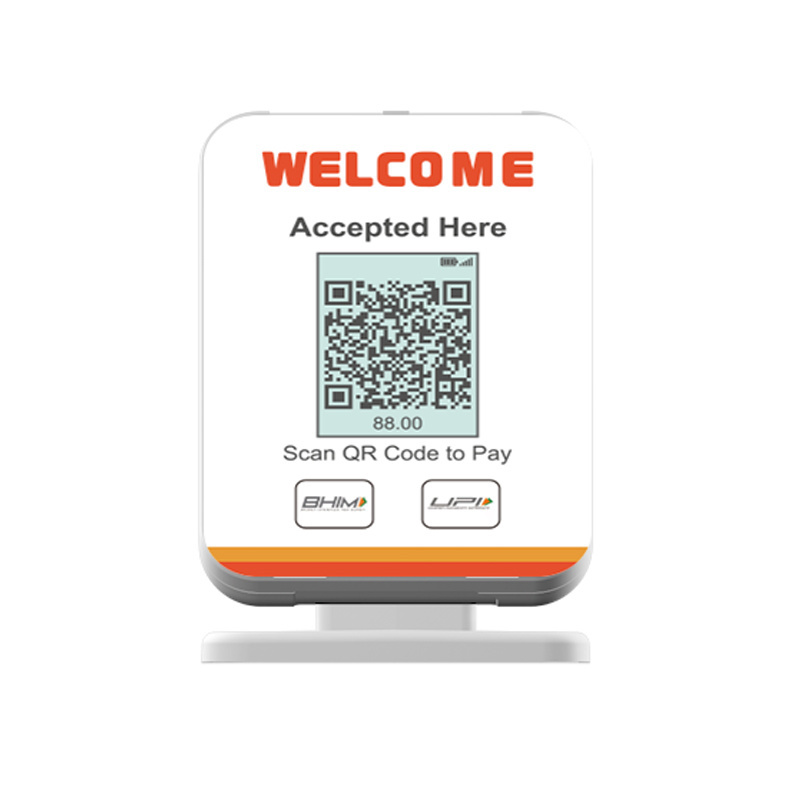

Z10 QR code payment SoundBox is a terminal based on online-offline payment modules, to build an intelligent city in the era of mobile Internet, and make much easier business for traders, and avoid payment fraud.
Specifications
|
CPU
|
ARM Cortex-A5
|
|
Memory
|
ROM:8MB,RAM:16MB, Flash: 6MB/8MB/4MB (Optional)
|
|
Communication
|
GPRS/4G, Wi-Fi (Optional)
|
|
Frequency Range
|
FDD-LTE ：B1/B3/B5/B8
TDD-LTE ：B34/B38/B39/B40/B41 GSM ：900MHz/1800MHz |
|
WI-FI
|
2.4Ghz 802.11B/G/N(optional)
|
|
Charging Voltage
|
DC 5V/1A
|
|
Operating Voltage
|
3.7V-4.2V
|
|
Operating Current
|
90~320mA@3.7V
|
|
Stand-by Current
|
≤10mA
|
|
Size of Amount Display Screen
|
60mm×42mm
|
|
Size of Dynamic QR Code Display
|
Z10-A: Without LCD to display;
Z10-B: Support, 2.4 inches(black and white screen) |
|
Card Slots
|
1*SIM
|
|
Keys
|
1 * Power Key,1 * Function Key,2 * Volume Up/Down Keys
|
|
Peripheral Ports
|
1 * Powered Type-C
|
|
Speaker
|
4Ω3W, 110±3dB
|
|
Voice Type
|
TTS Supported (Optional)/ Customized Voice
|
|
Protocol
|
MQTT
|
|
Encryption Method
|
TLS
|
|
Dimensions
|
L135mm*W27.5*H137mm
|
|
Weight
|
260g
|
|
Indicator Lights
|
3 color LED indicator light (blue,green and red)
|
|
Battery
|
2000mAh Li-ion Battery/2500mAh ( Optional)
|
|
Standby Time Full Power
|
≥150H
|
|
Accessory
|
Charging Cable
|
|
Environmental
|
Operating Temperature: -10℃～60℃
Storage Temperature: -20℃～70℃ Relative Humidity: 5℅～95℅, Non-condensing |
Product Function Table
|
Broadcast of Payment Information
|
Network Connection -> Configuration Parameters -> Get Online Parameters -> Connect to Server -> Receive Receipt Push Messages ->
Analyze and Make Voice Broadcast |
|
Volume +
|
Short press in volume mode: increase the volume
Short press: View the last transaction information (the device stores 10 transaction information by default) |
|
Volume -
|
Short press in volume mode: volume down
Short press: View the next transaction information (the device stores 10 transaction information by default) |
|
Off Button
|
Long press: power on/off
|
|
Function Button
|
Long press: access volume adjustment mode
Short press: broadcast current power & network connection status & server connection status |
|
Screen Display
|
Receipt amount
|
