Quick Details
-
Brand Name:
-
HOWELL
-
Model Number:
-
X ray Machine
-
Material:
-
X ray Machine, Acrylic
-
Model:
-
HE-DRsc4
-
Output power:
-
50 kW
-
Max kV:
-
150 kV
-
Max mA:
-
630 mA
-
Focal Spot:
-
0.6mmx1.2mm
-
Anode Heat Content:
-
300kHU
-
Pixel Pitch:
-
140μm
-
Flat panel detector:
-
14x17
-
Scintillator:
-
Csl & a-Si
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
China
-
Brand Name:
-
HOWELL
-
Model Number:
-
X ray Machine
-
Material:
-
X ray Machine, Acrylic
-
Model:
-
HE-DRsc4
-
Output power:
-
50 kW
-
Max kV:
-
150 kV
-
Max mA:
-
630 mA
-
Focal Spot:
-
0.6mmx1.2mm
-
Anode Heat Content:
-
300kHU
-
Pixel Pitch:
-
140μm
-
Flat panel detector:
-
14x17
-
Scintillator:
-
Csl & a-Si
Product Description

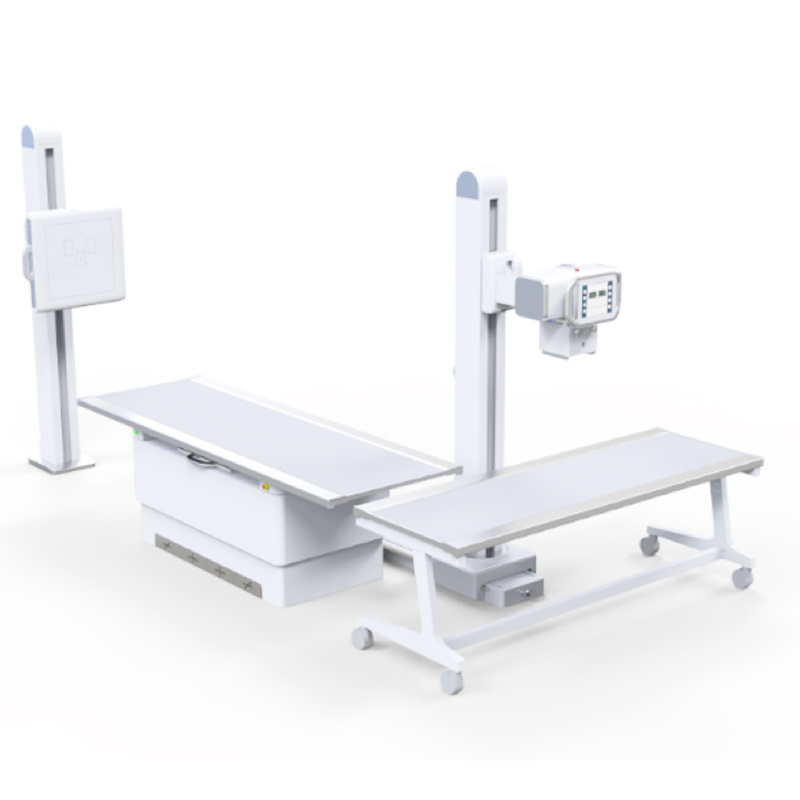

X-Ray Radiography System Digital X ray Machine
ALL-New SUPER Series SMART DRs with 7 Smart Features, providing unmatched 7S user experiences and higher efficiency!
SMART Software
ee-PACS is a very powerful PACS system using B/S architectual design and based on international DICOM and HL7 standards. It is designed and optimized for high workflow efficiency and productivity, as well as friendly and intuitive user interfaces. It provides a rich set of modules to meet your daily hospital needs
SMART Monitor
Wireless Mobile Flat Panel Detector
It can easily cover all your clinical needs
For more flexibility and higher efficiency, you can add a second FPD
High Frequency High Voltage Generators developed in-house
Providing more accurate exposure control, longer life span, and more efficient services
Smart monitor monitors input power voltage in real time to protect your system
With a very high frequency, exposures will be more accurate and stable
Worldwide leading PFM Technologies with a very high inverter frequency, provide more stable voltage outputs
Flat Panel Detector of independent development
*Portable and mobile amorphous silicon board design.
* Fast image in 3 seconds
* 17 by 17 inch flat panel detector, not just big rugged and can withstand 160kg of pressure
* High Quantum capture efficiency (DQE)
* Natural cooling without auxiliary equipment
* Supports simultaneous connection of more than two tablets to the same workstation
360 degree no dead angle projection
The support pillar of the ball tube can rotate (+180 degrees) wholly and the ball tube rotates (+180 degrees) around the arm.
It can be used with portable flat panel detector and movable bed to satisfy all kinds of body position projection, especially for the examination of patients who can not move independently (wheelchair and stretcher).
It can effectively avoid the secondary injury that may occur to patients when they are transported in the hospital.
Five in One Workstation
The system includes five modules:
patient management, image acquisition and high-voltage control,image processing, film printing and diagnostic report.
It enables one workstation to realize the functions of multiple workstations and saves a lot of purchasing costs for users.
High quality X-ray tube and X ray generator
* Independently developed X-ray tube, maximum speed
of anode up to 8400rpm/min
* High thermal capacity design of 300KHU ensures
continuous working time of the tube
* Independently developed high frequency high voltage
generator operating frequency up to 220kHz
* The DR system is equipped with high frequency high voltage generator, ray generation more stable, smaller size, longer life. With high voltage cable, X-ray tube, key components of main loop, high voltage transformer fault real-time monitoring function and good
compatibility design of software and hardware, effectively ensure the safety of X-ray tube, plate and other key parts, greatly reduce the failure rate of the system. You can set high pressure parameters on the software interface.
|
High voltage generator
|
Output power
|
50 kW
|
|
|
Max kV
|
150 kV
|
|
|
Max mA
|
630 mA
|
|
X-ray tube
|
Focal Spot
|
0.6mm×1.2mm
|
|
|
Anode Heat Content
|
300kHU
|
|
Flat panel detector
|
Scintillator
|
Csl & a-Si
|
|
|
Pixel Pitch
|
140μm
|
|
|
Number of Pixels
|
2500x 3052
|
|
|
Active Area
|
14×17
|
|
Workstation
|
parameters
|
The CPU is dual-core at 3.8GHz Memory 4G Hard disk 1T Display size 23.8 inches
|
|
Table
|
Size
|
2200×740mm
|
|
Trade Items
|
|
|
|
|
||||
|
MOQ
|
|
1 Set
|
|
|
||||
|
Packaging
|
|
Plywood case with foam
|
|
|
||||
|
Payment
|
|
T/T ; Western Union /Cash
|
|
|
||||
|
Port
|
|
Guangzhou,Huangpu or others
|
|
|
||||
|
Delievery time
|
|
3-5 days after receive deposit
|
|
|
||||
