- Product Details
- {{item.text}}
Quick Details
-
Applicable Models:
-
Universal Car
-
Place of Origin:
-
Guangdong, China (Mainland)
-
Brand Name:
-
Jfind
-
Model Number:
-
A0236
-
Warranty:
-
12 Months
-
Product Name:
-
OBD2 Code Reader Elm327
-
Size:
-
10*6.5*3cm
-
Weight:
-
0.05kg
-
System:
-
For Windows XP, For Windows 7/8, For Android, For Symbian.
-
Support Protocols:
-
Full 9 OBD2 Protocols
-
Communication:
-
wireless 4.0
-
Color:
-
as pic show
-
Hardware Version:
-
V1.5
-
Logo:
-
Available
-
Support System:
-
Windows,IOS,Android
Quick Details
-
Car Fitment:
-
Universal
-
Voltage:
-
9v ~ 16v
-
Power:
-
2-5W
-
Applicable Models:
-
Universal Car
-
Place of Origin:
-
Guangdong, China (Mainland)
-
Brand Name:
-
Jfind
-
Model Number:
-
A0236
-
Warranty:
-
12 Months
-
Product Name:
-
OBD2 Code Reader Elm327
-
Size:
-
10*6.5*3cm
-
Weight:
-
0.05kg
-
System:
-
For Windows XP, For Windows 7/8, For Android, For Symbian.
-
Support Protocols:
-
Full 9 OBD2 Protocols
-
Communication:
-
wireless 4.0
-
Color:
-
as pic show
-
Hardware Version:
-
V1.5
-
Logo:
-
Available
-
Support System:
-
Windows,IOS,Android

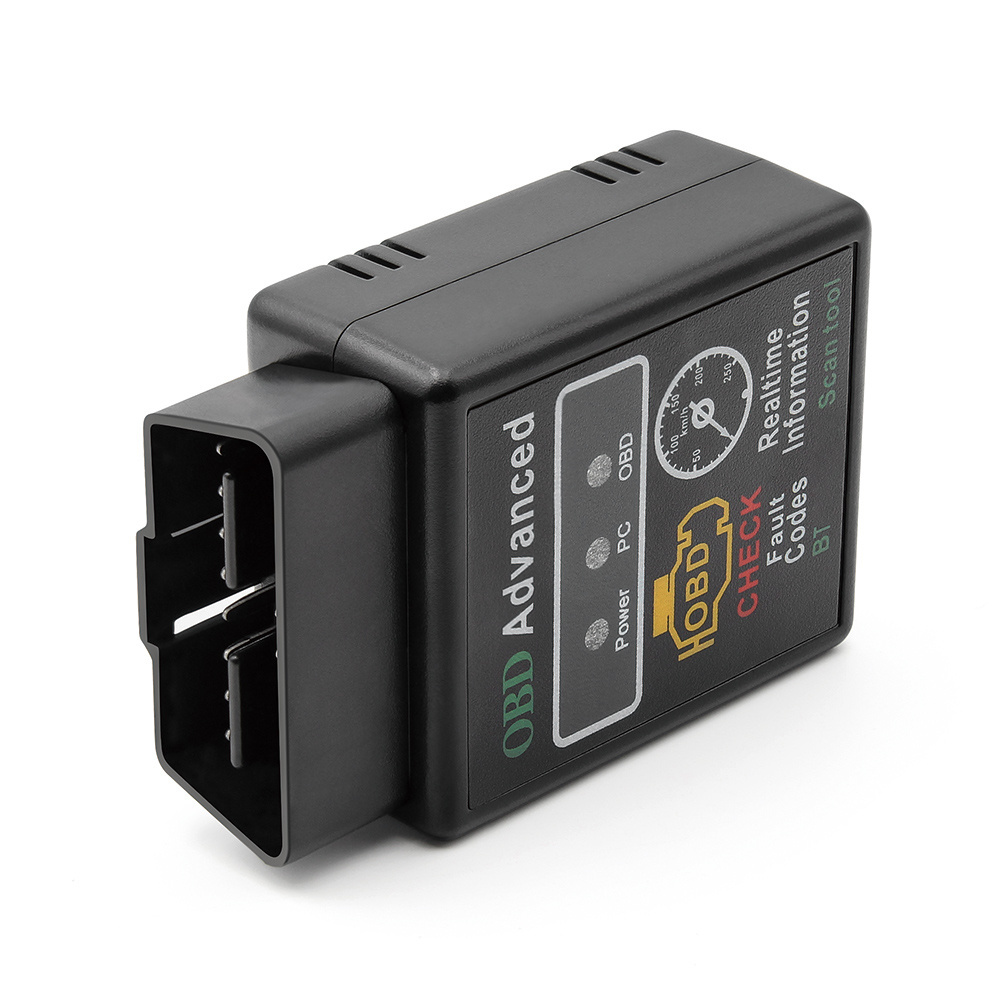

Wholesale V1.5 BT 4.0 Automobile Vehicle Car Diagnostic Tool Scanner Elm327
|
With Full 9 OBD2 Protocols available for Android for Windows and for Symbian system,
used to read diagnostic trouble codes,manufacturer-specific,
and over 3000 generic definitions in the database, and display code meaning. |
|
Key pramameters
| Communication | wireless 4.0 |
| Color | Picture color |
| Support System | For android ,For windows,For IOS |
| Working Voltage | 9v ~ 16v |
| Working Current | 35mA |
| Standby Current | 25mA |
| Operating temperature | -40 ℃ ~ 85 ℃ |
| Working Humidity | less than 60% |
| Size | 45mm * 25mm * 65mm |
| Hardware Version | V1.5 |
| Software Version | V2.1 (depending on software) |
Top 4 Reasons To Get Mini OBD2 wireless Scanner:
1. Software Version: V2.1
2.
Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
Mini OBD2 BT 4.0 Scanner Functions
| Read diagnostic trouble codes |
| Clear trouble codes and turn off the MIL ("Check Engine" light) |
| Display current sensor data, including |
| Engine RPM |
| Calculated Load Value |
| Coolant Temperature |
| Fuel System Status |
| Vehicle Speed |
| Short Term Fuel Trim |
| Long Term Fuel Trim |
| Intake Manifold Pressure |
| Timing Advance |
| Intake Air Temperature |
| Air Flow Rate |
| Absolute Throttle Position |
| Oxygen sensor voltages / associated short term fuel trims |
| Fuel System status |
| Fuel Pressure |
| Many others |
Supported protocols:
1.SAE J1850 PWM (41.6Kbaud)
2.SAE J1850 VPW (10.4Kbaud)
3.ISO9141-2 (5 baud init, 10.4 Kbaud)
4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5.ISO14230-4 KWP (fast init, 10.4 Kbaud)
6.ISO15765-4 CAN (11bit ID, 500 Kbaud)
7.ISO15765-4 CAN (29bit ID, 500 Kbaud)
8.ISO15765-4 CAN (11bit ID, 250 Kbaud)
9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
Compatible Software:
Window System: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
Android
System
: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian
System
: OBDScope
Package List:
1pc x Mini OBD2 wireless 2.0 Scanner
1pc x Box
Package: Paper box package + Standard export box package, or As Per your customized box package
Delivery Time: 3-7 working days for samples; 7-30 working days for bulk goods.
Alibaba Trade Assurance can assure all your benefits during the whole deal, please feel free to contact sales to know more!
