Quick Details
-
Rated Voltage:
-
5v
-
Frequency:
-
4000khz
-
Material:
-
paper box
-
Voltage Range:
-
1-30v
-
Operating Mode:
-
piezoelectric
-
Voltage - Rated:
-
5v
-
Series:
-
piezoelectric
-
Features:
-
Small size and low power consumption
-
Mounting Type:
-
Pin type
-
Size / Dimension:
-
13
-
Description:
-

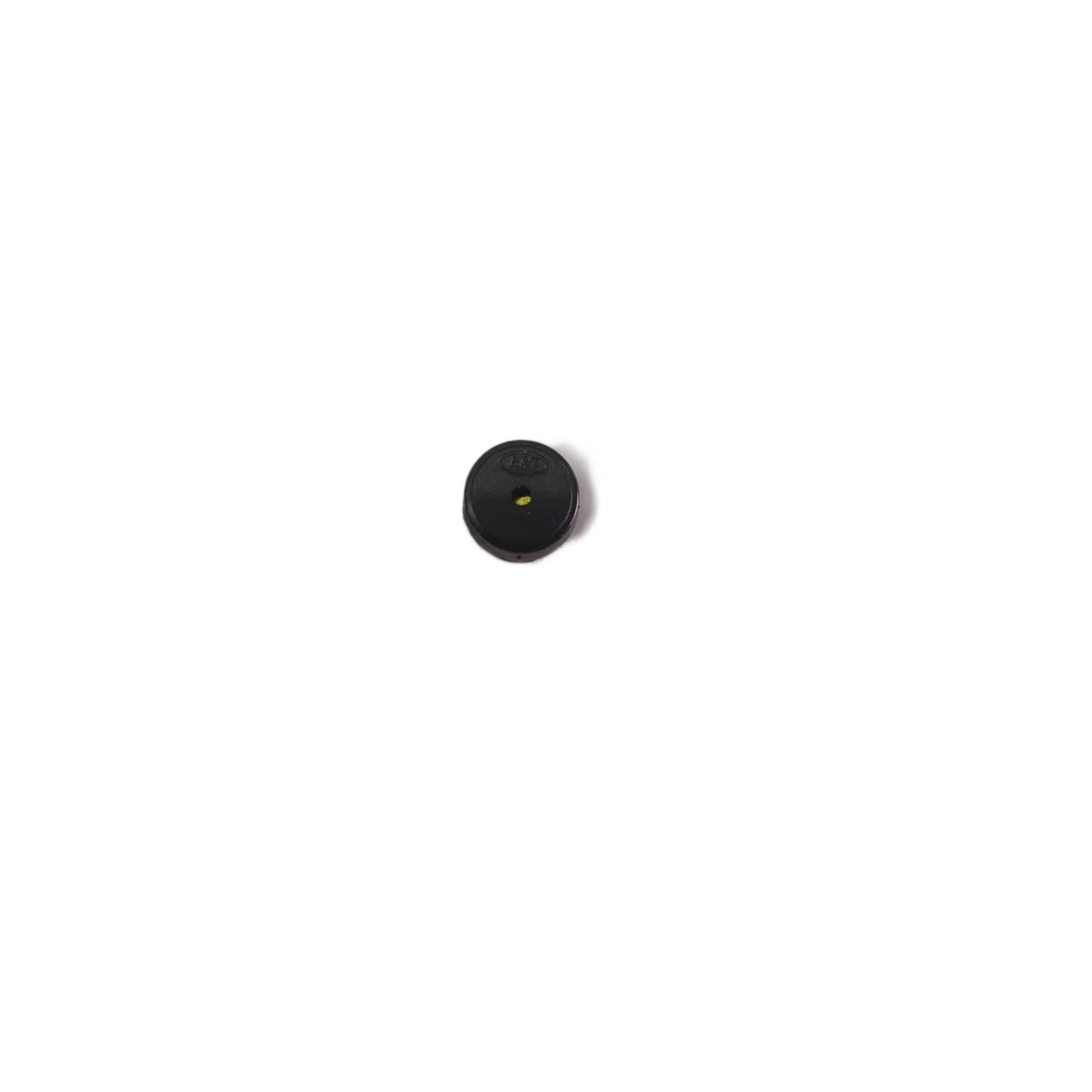

passive piezoelectric mini buzzer
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AT
-
Model Number:
-
AT1360
-
Rated Voltage:
-
5v
-
Frequency:
-
4000khz
-
Material:
-
paper box
-
Voltage Range:
-
1-30v
-
Operating Mode:
-
piezoelectric
-
Voltage - Rated:
-
5v
-
Series:
-
piezoelectric
-
Features:
-
Small size and low power consumption
-
Mounting Type:
-
Pin type
-
Size / Dimension:
-
13
-
Description:
-
passive piezoelectric mini buzzer
Product Description
Specification
|
Resonant Frequency (KHZ)
|
|
|
|
4.0±0.5
|
|
|
|||||
|
Rated Voltage (VP-P)
|
|
|
|
5.0
|
|
|
|||||
|
Operating Voltage (VP-P)
|
|
|
|
1~30
|
|
|
|||||
|
Max. Current Consumption at Rated Voltage (mA)
|
|
|
|
2.0
|
|
|
|||||
|
Capacitance at 1000Hz (Pf)
|
|
|
|
12000±30%
|
|
|
|||||
|
Min. Sound Output at 10cm at Rated Voltage (dB)
|
|
|
|
80
|
|
|
|||||
|
Operating Temperature (0C)
|
|
|
|
-20~+85
|
|
|
|||||
|
Storage Temperature (0C)
|
|
|
|
-30~+85
|
|
|
|||||
|
Housing Material
|
|
|
|
PBT(Black)
|
|
|
|||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
