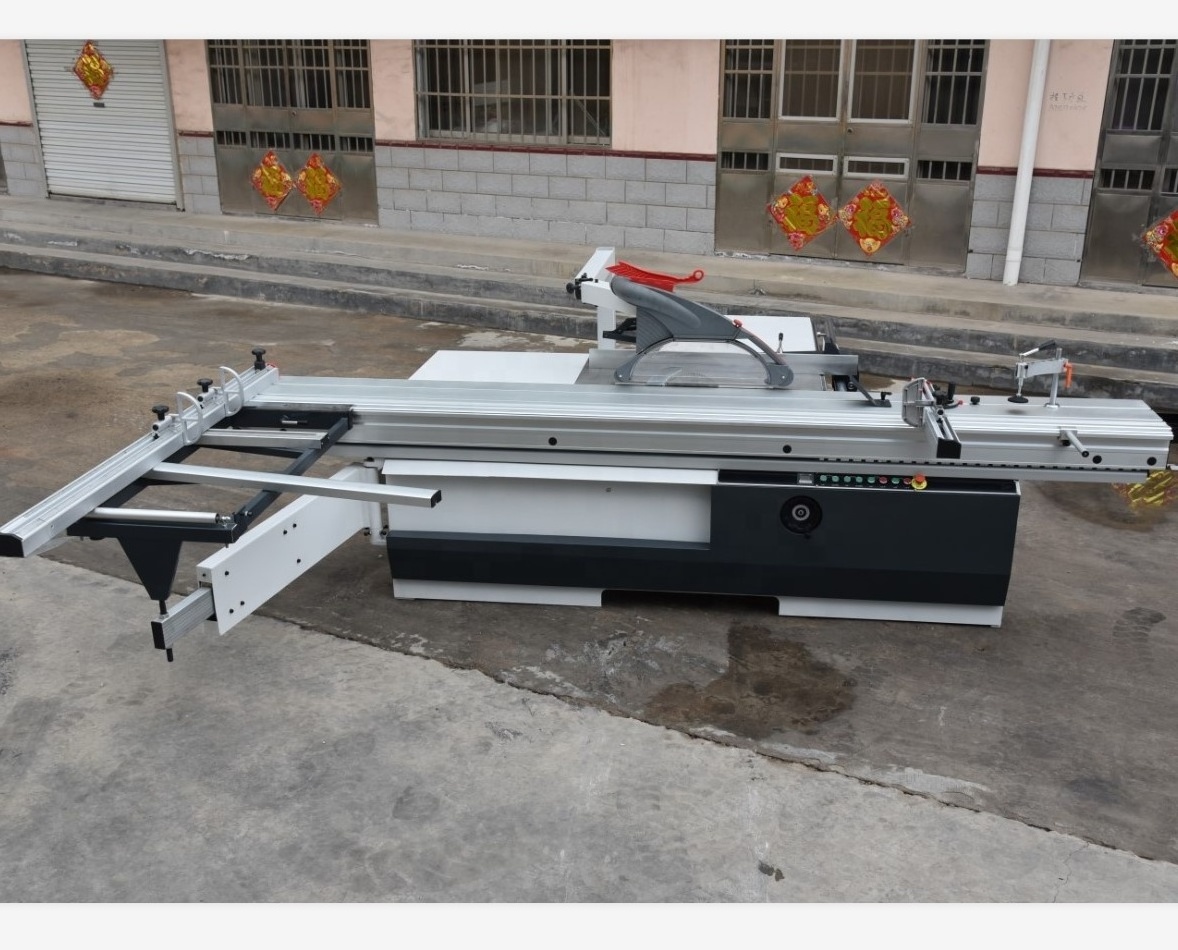

3200mm Altendorf Structure Sliding Table Panel Saw Woodworking Cutting Saw Wood Saw Machines

ZD400T Altendorf Structure Sliding Table Panel Saw Wood Cutting Machine

Our company specializes in providing end-users with a variety of solutions for the production of panel furniture.

We have a large number of successful cases in the design of wooden door manufacturing, cabinet manufacturing, office furniture manufacturing, assembled cabinets, closets, interior design and other production lines.

As long as you provide the area of the plant or the furniture you want to produce, we will tailor the production plan for you.
When choosing a machine, we also cooperate in good faith.

We will show every detail of the machine, each accessory brand, the advantages and disadvantages, and humanized suggestions, so that you can find the most suitable machine without spending more money.

Because we have been in the field of export of woodworking machinery for more than 15 years. This is our purpose.

We also have the strength to help you. Welcome to consult and let you see our value in communication.

Feature:

It is adapted to ergonomic requirements. The special operate is that: the control board of MJ45A sliding table saw can be adjusted to the equal height with line of the sight to make the operation comfortable. The saddle is electrically adjustable.

Control panel: The various operation on the control panel is clear at a glance. You just need to press the button gently then it will adjust the height and the angle of saw blade easily. The numerical value of angle is visible on the display,

Dust hood: It is convincing to use the big dust hood with fluid mechanics optimization structure. Dust hood apply to Max. Cutting height 125mm (without relationship to scoring saw blade) and can swing to the side totally.
The electric saddle:  Five- positioning of high-precision drive systems without regular  maintenance is like a built-in motor protected by aluminum profile.  There is emergency power-off function and then excluded squeezed danger.

Rating  5.5kw(7.5HP). Three speeds, 3/4/5000rpm, manually adjusted

Horizontal baffle plate: Precise vertical angle cutting by firm rung. All of adjustment value is available in the strip of rung. The peach shape baffle plate with close connection with it can be push easily and adjusted freely in the entire cutting area.

Technical Specification:

Our production process:

1,The machine body is stronger with 6mm thick steel. All the components saw body are cut by laser cutting machine, smoother without burr.

2, Our own cast iron table is 136kgs, the largest one in Qingdao. It is thicker and with more reinforcing ribs. The surface is grinded and polished by CNC lathing-milling center. There will be no deformation after fixing the motors on it. Electrostatic powder spraying to improve corrosion resistance and wear-resistance. Processing by gantry milling machine, the double layers sliding table is more stable and durable.

3, Inner parts are processed by CNC machining center, to guarantee high precision.

4, Pulleys are corrected by computer by dynamic balancing machine, to keep the pulleys ’ accuracy within 1 gram. Running smoothly without bounce.

5, All the purchased parts are famous brands, for example,  SKF bearings from German.

6, Flatness detection of sliding table. Linearity testing on both saw blades.

7, Ruler accuracy detection. To get the accurate cutting dimension .

8, Angle detection to keep high angle precision during cutting in different angles. Saw blades bounce detection to keep high cutting precision.

Electrical safety testing.

Noise measuring. To keep below 85 decibels. (The max. Allowed noise is 115 decibels).

9,Package and transferring to warehouse after all the items confirm to the standards.
