- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6355*2829*2150mm
-
Machine Weight:
-
6800 kg
-
Bucket capacity:
-
0.4m3
-
Max excavating distance:
-
6325mm
-
Max loading height:
-
5066mm
-
Max vertical digging depth:
-
3455mm
-
Engine:
-
Yuchai
-
Climbility:
-
35 dgree
-
Min ground clearance:
-
385mm
-
Min turning radius:
-
1750mm
Quick Details
-
Engine Brand:
-
YUCHAI
-
Power:
-
Other, 48kw
-
Brand Name:
-
DBD
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
6355*2829*2150mm
-
Machine Weight:
-
6800 kg
-
Bucket capacity:
-
0.4m3
-
Max excavating distance:
-
6325mm
-
Max loading height:
-
5066mm
-
Max vertical digging depth:
-
3455mm
-
Engine:
-
Yuchai
-
Climbility:
-
35 dgree
-
Min ground clearance:
-
385mm
-
Min turning radius:
-
1750mm
|
Max. digging radius |
6393mm |
Max. Digging depth |
3368mm |
|
Max. dumping height |
5057mm |
Max.digging height |
6685mm |
|
Max.loading weight |
600kgs |
Max loading height |
4800mm |
|
Min.swing radius |
2378mm |
Tail rotation radius |
1 9 50 m |
|
Max. vertical excavation distance |
2614mm |
Length of bucket arm |
1 850 mm |
|
Length of movable arm |
3 4 00mm |
Bucket digging force |
58 kn |
|
Stick digging force |
45 kn |
Ground clearance of balance weight |
1028mm |
|
Bucket capacity |
0. 35 m ³ |
Mini clearance |
280mm |
|
Engine type |
Four-cylinder water-cooled direct injection (EFI) supercharged engine |
Power output |
48kw/2100rpm |
|
Travel speed |
3 5 km/hr |
Grade ability |
59% |
|
Ground clearance of balance weight |
1045mm |
Min.ground clearance |
280mm |
|
Main pump |
Import variable sensitive plunger pump |
Swing speed |
11.5rpm |
|
Hydraulic oil tank |
1 70 L |
Fuel tank |
1 10 L |
|
Dozer blade(L*W) |
2027*450mm |
|
|
|
Operation weight |
7300 kgs |
Wheel base |
1650 mm |
|
Shaft base |
2380mm |
Overall size(L*W*H) |
6 000 *2 140 *2 840 mm |

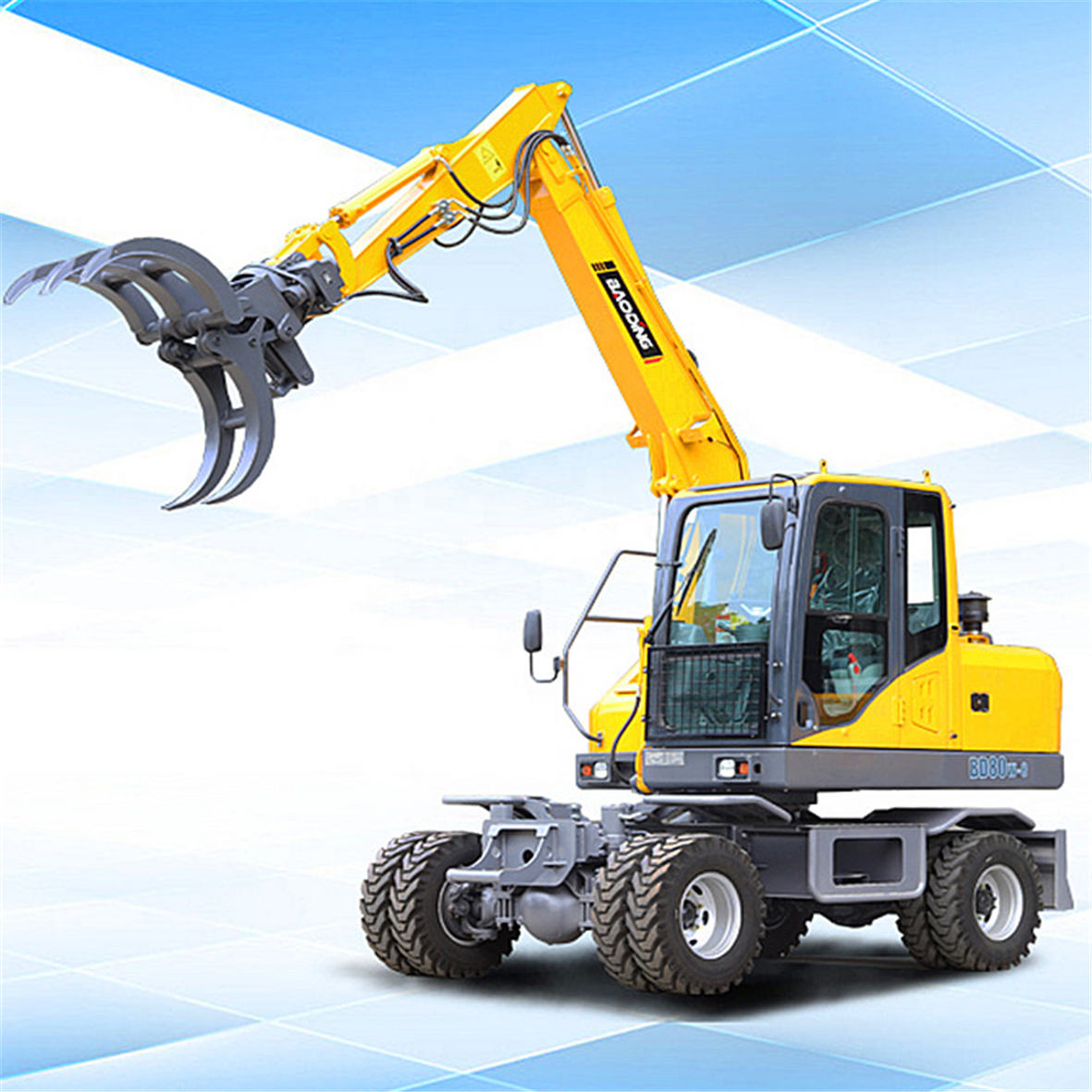

For earthmoving,drilling,rock breaking,sugarcane/wood/manure waste loading,scrap iron/straw graspping etc.Multifcutional machine to save cost for buyer!
