Hoist Crane Pendant Pushbutton Switch Up-Down pendant push button

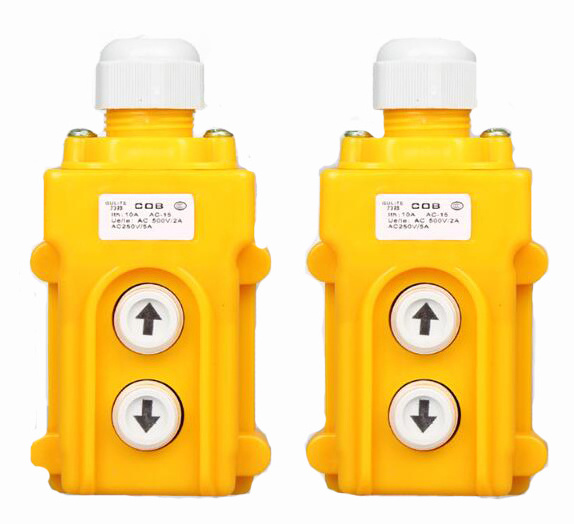

Hoist Crane Pendant Pushbutton Switch Up-Down Station Heavy Duty Rainproof COB61

COB series button adopts full-plastic case. The appearance is beautiful and the structure is reasonable. The product, which is equipped with rubber cable sheath and waterproof ealing strips, is provided with good dustproof and rainproof performance.

All the other buttons are with function of automatic reset and mechanical interlock structure realizing optimistic and reverse controlling except "on" button of general circuit switch is of function of automatic lock. It not only predigests the circuits, but also efficiently protects the circuits and operation of equipment. Besides, in order to avoid circuits failure more reliably, the "off" button can switch of the general power supply.

COB push button is suitable for circuit of AC 50 or 60HZ, rated voltage to 500V, rated current up to 5A as controlling start and stop of remote and widely used in wharf, machine tools, textile machineries, etc.

Features

1) Ambient temperature: -25~70Centigrade
2) Rated insulation voltage: UI=500V
3) Pollution class: III
4) Degree of protection: IP65/IP66
5) Altitude above sea level: <2, 000m
6) Meets IEC60947-5-1, EN60947-5-1
Packing: Standard export packing

Packing detail
