Quick Details
-
Dimension(L*W*H):
-
3800*2700*2100mm
-
Power (kW):
-
3-4
-
Weight (KG):
-
2000 KG
-
Component:
-
Polyurethane
-
Dispensing Strole(X*Y*Z):
-
2300*1250*200mm(Customizable)
-
Raw Material Tank:
-
A=30L B=30L
-
Dispensing Width:
-
4-40mm
-
Dispensing Accuracy:
-
0.01mm
-
Running Speed:
-
0-30m/min
-
Glue Volume:
-
0.5-4.5g/s
-
Feeding Accuracy:
-
0.1g/s
-
Repeat Positioning Accuracy:
-
±0.01mm
-
Operating Mode:
-
Handle, Computer
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Inserter
-
Machine Type:
-

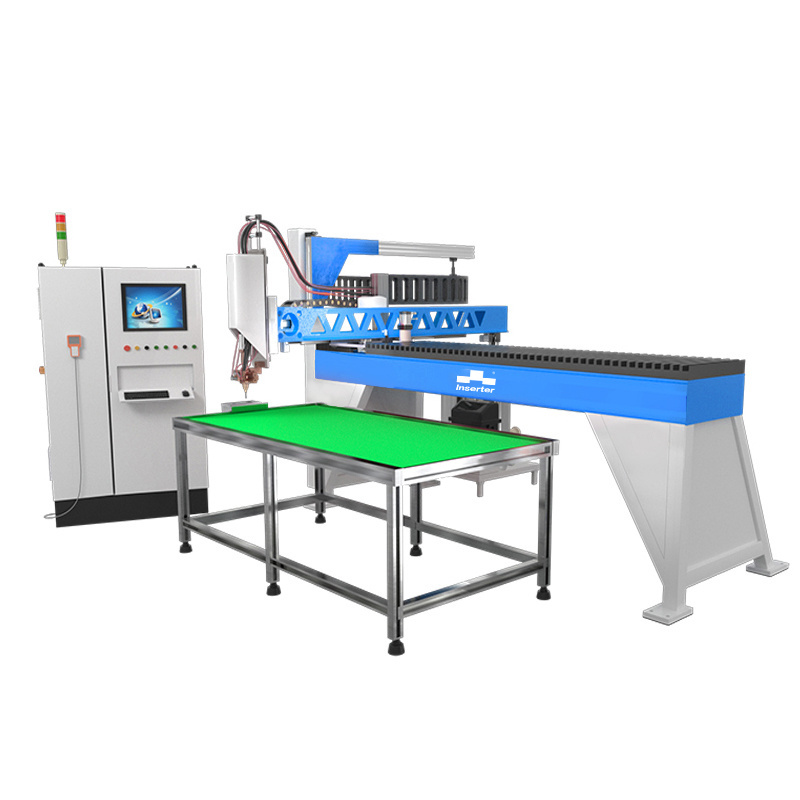

Foam Sealing Machine
-
Dimension(L*W*H):
-
3800*2700*2100mm
-
Power (kW):
-
3-4
-
Weight (KG):
-
2000 KG
-
Component:
-
Polyurethane
-
Dispensing Strole(X*Y*Z):
-
2300*1250*200mm(Customizable)
-
Raw Material Tank:
-
A=30L B=30L
-
Dispensing Width:
-
4-40mm
-
Dispensing Accuracy:
-
0.01mm
-
Running Speed:
-
0-30m/min
-
Glue Volume:
-
0.5-4.5g/s
-
Feeding Accuracy:
-
0.1g/s
-
Repeat Positioning Accuracy:
-
±0.01mm
-
Operating Mode:
-
Handle, Computer
Product Features
• Integrated structure, machine frame stronger, longer life, and more convenient to move the machine
• Glue dispensing is faster, more accurate, more stable, and also beauty, IP grade can reach IP66
• 3D Simulation Function
• Matrix dispensing function
• Automatic alarm function
• Automatic temperature control function
• Remote inspection function
• Data memory function
• Automatic cleaning function
• Automatic statistics function
• Long standby function
Product Parameter
|
Model
|
DM-508
|
DM-601
|
|
Component
|
Polyurethane
|
Polyurethane
|
|
Control System
|
17 inch Touch Screen, Handle/Computer
|
17 inch Touch Screen, Handle/Computer
|
|
Dispensing Stroke
|
2300*1250*200mm(Customizable)
|
2300*1250*200mm(Customizable)
|
|
Servo Motor
|
HCFA
|
Panasonic
|
|
Dosing Pump
|
Inserter
|
BARMAG
|
|
Raw Material Tank
|
A=30L B=30L
|
A=30L B=30L
|
|
Power
|
3-4KW
|
3-4KW
|
|
Pressure
|
0-4Mpa
|
0-4Mpa
|
|
Dispensing Width
|
4-40mm
|
4-40mm
|
|
Dispensing Accuracy
|
0.01mm
|
0.01mm
|
|
Running Speed
|
0-30m/min
|
0-30m/min
|
|
Operating Mode
|
Handle, Computer
|
Handle, Computer
|
|
Glue Volume
|
0.5-4.5g/s
|
0.5-4.5g/s
|
|
Feeding Accuracy
|
0.1g/s
|
0.1g/s
|
|
Repeat Positioning Accuracy
|
±0.01mm
|
±0.01mm
|
|
Size
|
3800*2700*2100mm
|
3800*2700*2100mm
|
FAQ
1.What type of gasket machine is this?
We offer constant,micro and constant micro mix types of gasket machine.GD-601 is constant type.
2.Is the control system of the gasket machine available in multiple languages?
At present, the dispensing system is in Chinese and English. We offer customization in multiple languages.
3.How do you guarantee the quality of the gasket machine?
Before shipping, we will carry out 48 strict inspections on the products.
4.What is the waterproof and dustproof rating of the gasket machine?
IP65,IP68
5.What are the application areas of the gasket machine?
Automobile,cabinet,air filter,air compressor,air conditioning purify equipment ,packing,electronic component,lamp and new energy.
