Quick Details
-
Marketing Type:
-
New Product 2023
-
Drilling Depth:
-
15m
-
Engine Model:
-
4TN98T
-
output torque:
-
40kN/m
-
Rotary speed:
-
0~45rpm
-
pulling force:
-
50t
-
pulling speed:
-
50m/min
-
Wire Rope Diameter:
-
10mm
-
Machine weight:
-
14t
-
Transporting state size:
-
7360*2260*3000mm
-
Working state size:
-
4560*2260*9040mm
-
Max.Drilling Diameter:
-
1000mm
Quick Details
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Yuchai
-
Weight:
-
14000 KG
-
Marketing Type:
-
New Product 2023
-
Drilling Depth:
-
15m
-
Engine Model:
-
4TN98T
-
output torque:
-
40kN/m
-
Rotary speed:
-
0~45rpm
-
pulling force:
-
50t
-
pulling speed:
-
50m/min
-
Wire Rope Diameter:
-
10mm
-
Machine weight:
-
14t
-
Transporting state size:
-
7360*2260*3000mm
-
Working state size:
-
4560*2260*9040mm
-
Max.Drilling Diameter:
-
1000mm
Products Description
Specifications
|
Main parameter
|

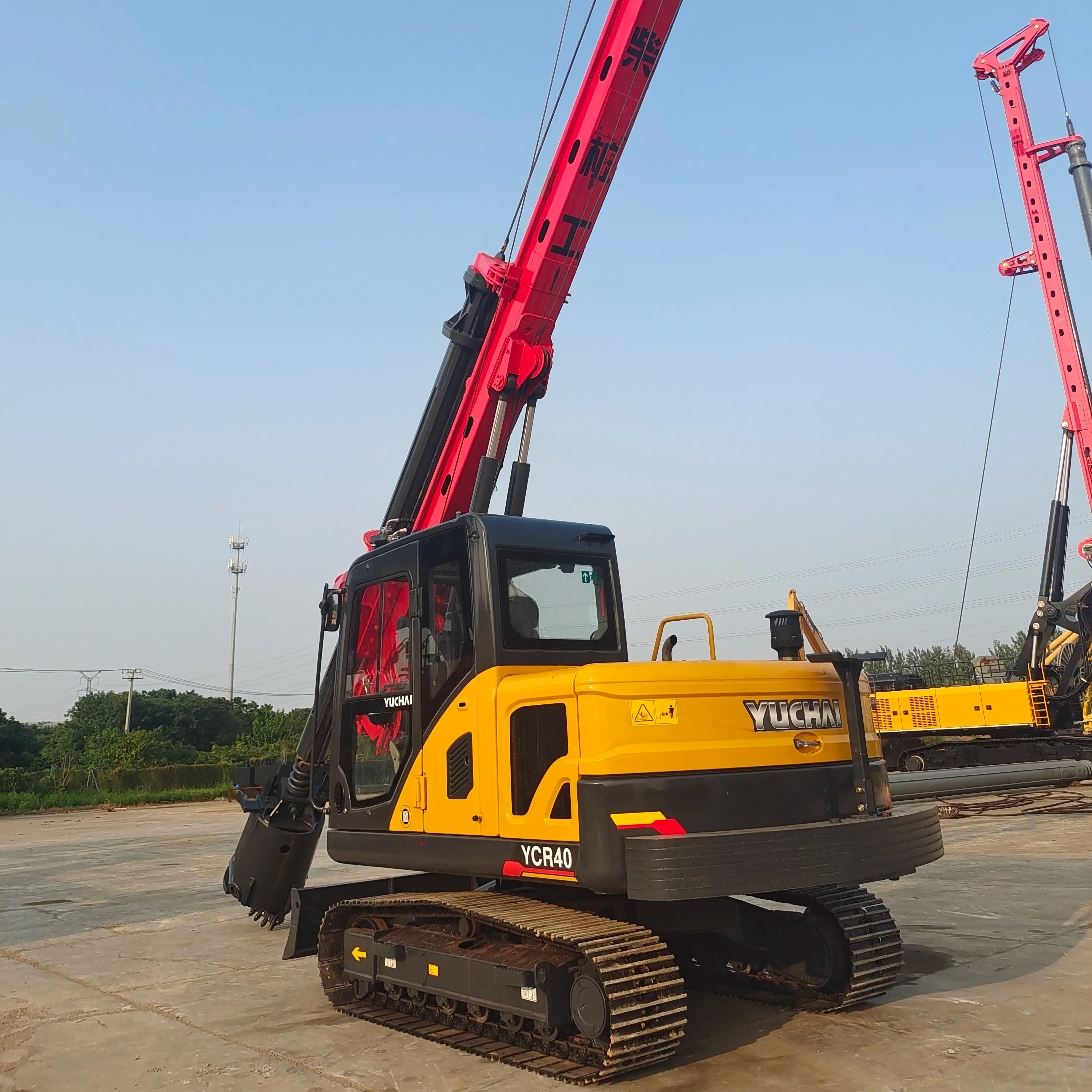

YCR40 Parameters Units
|
|
Chasis
|
|
|
Engine Model
|
4TN98T
|
|
Rated Power/Rotary Speed
|
44/2000 kW/rpm
|
|
Rotary Drive
|
|
|
Max.output torque
|
40 kN•m
|
|
Rotary speed
|
0~45rpm
|
|
Max.pull-down piston push
|
70t
|
|
Max.pulling force
|
60t
|
|
Max.pull-down piston strlke
|
1500mm
|
|
Main winch
|
|
|
Max.pulling force
|
50t
|
|
Max.pulling speed
|
50m/min
|
|
Wire Rope Diameter
|
16mm
|
|
Auxiliary winch
|
|
|
Max.pulling force
|
15t
|
|
Max.pulling speed
|
50m/min
|
|
Wire Rope Diameter
|
10mm
|
|
Mast Rake
|
|
|
Forwards backwards
|
4°
|
|
Side backwards
|
±4°
|
|
Drilling hole
|
|
|
Max.Drilling Diameter
|
1000mm
|
|
The max.drilling depth
|
15m
|
|
Main machine
|
|
|
Machine weight
|
14t
|
|
Transporting state size
|
7360*2260*3000mm
|
|
Working state size
|
4560*2260*9040mm
|
|
Recommended drill pipe type
|
|
|
Drill pipe configuration
|
MZ/JS φ240-4*4.5m
|
About Us
Yuchai HI
YuchaiHI’s main products include
excavators
(crawler and wheeled),
electric equipment
(electric skid steer loaders, electric wheel loaders, electric excavators, etc.),
rotary drilling rigs
,
forestry
and
logging equipment
.
R&D
More than
30 years
of industry research and development experience, the pioneer and leader of compact equipment and forestry
equipment in China, with high influence in the industry.
equipment in China, with high influence in the industry.
Manufacturing
With advanced equipment and manufacturing equipment from Germany and Japan, with mature production capacity of laser underlay,
robot welding, narrow space welding...
robot welding, narrow space welding...
QC
ISO
19001/14001/45001 certified enterprise;
CE
(including MD, EMC and Noise) and
CU-TR
(Russia, Belarus and Kazakhstan ) certified
Certifications
Our Exhibition
Packing & Delivery
OEM / ODM Service
FAQ
1. Who are we?
We are based in China, since 1975, sales to South Asia(10.00%), Western Europe(10.00%)East(10.00%), Africa(10.00%)USA (5%),
Northern Europe (5%). There are a total of 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Excavators、 Electric Equipment、Rotary Drilling Rig、Forestry equipment、 Electric Power Systems、 Customized Equipment、 Wheel Excavator
4. Why should you buy from us not from other suppliers?
Our engine products have a complete spectrum of types and applications, achieving full coverage of low-speed, medium-speed,high-speed, light, medium, heavy-duty and large-scale, and the engine emission technology continues to lead.
We will specialize in engines for fine trucks, buses, passenger cars, agricultural machinery, construction machinery, marine, andpower generation, accelerate the integration of power systems, and create an interconnected, human-computer interaction, green and energy-saving intelligent power supply system.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Spanish,Portuguese,Arabic,French,Russian
We are based in China, since 1975, sales to South Asia(10.00%), Western Europe(10.00%)East(10.00%), Africa(10.00%)USA (5%),
Northern Europe (5%). There are a total of 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Excavators、 Electric Equipment、Rotary Drilling Rig、Forestry equipment、 Electric Power Systems、 Customized Equipment、 Wheel Excavator
4. Why should you buy from us not from other suppliers?
Our engine products have a complete spectrum of types and applications, achieving full coverage of low-speed, medium-speed,high-speed, light, medium, heavy-duty and large-scale, and the engine emission technology continues to lead.
We will specialize in engines for fine trucks, buses, passenger cars, agricultural machinery, construction machinery, marine, andpower generation, accelerate the integration of power systems, and create an interconnected, human-computer interaction, green and energy-saving intelligent power supply system.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,AUD,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Spanish,Portuguese,Arabic,French,Russian
