Quick Details
-
Light Source:
-
LED
-
Product Weight（kg）:
-
0.083
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OPEN
-
CCT:
-
Cool white
-
Ambient temperature:
-
0-25℃
-
Certification:
-
ce
Quick Details
-
Battery Type:
-
Lead-Acid
-
Material:
-
Plastic
-
Usage:
-
indoor
-
Light Source:
-
LED
-
Product Weight（kg）:
-
0.083
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OPEN
-
CCT:
-
Cool white
-
Ambient temperature:
-
0-25℃
-
Certification:
-
ce

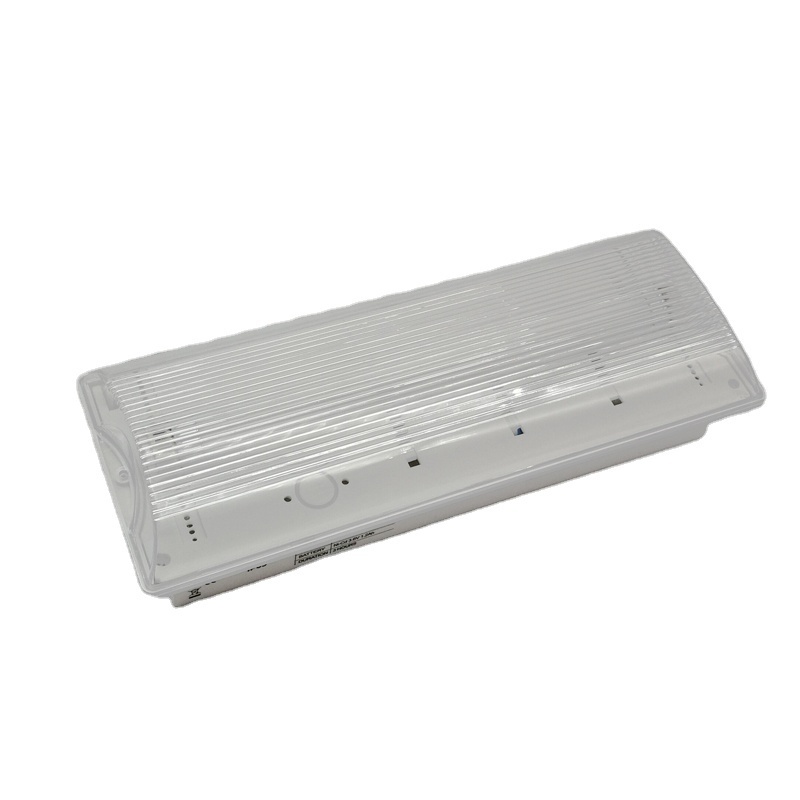

Self contained emergency lighting
Our products are designed to comply with the requirements of UK law and the relevant industry, national and international standards, and should not be modified in any way.
All self-contained emergency lighting luminaries require a continuous 220-240V single phase 50Hz supply to keep the inbuilt batteries charged. The supply must be taken from the lighting supply in the area being protected, in order to activate the emergency lighting if the mains supply in that area fails. In addition, maintained fittings require a separate switched live supply enabling the fitting to be operated normally from the mains supply.
Please note:
The design life of a T5 fluorescent lamp is 5000 hours, so if maintained fittings are light for 24 hours a day, lamp life will be approximately 6 months. If lamps are not replaced promptly, the luminaries circuitry may be damaged.
Self-contained emergency light luminaries are only suitable for environments with ambient temperatures between 0-25℃.
Photometric data
Light output factors are as follows. Note these values are given to permit checking of correct operation. The full photometric distribution data for individual fittings should be used to determine correct lighting levels on escape foutes.
Ballast lumen factor (BLF)
4 WATT – 0.22, 6 WATT – 0.20, 8 WATT – 0.15
NOTE: Ballast lumen factor is the proportion of light output from the luminary on battery compared with the light output when on mains.
Ordering information
|
Stock No |
Part Number |
Description |
|
45-100 |
AX/8/NM3 |
Standard 8 watt non-maintained |
|
45-110 |
AX/8/M3 |
Standard 8 watt maintained |
|
45-120 |
AX/2X8/NM3 |
Stand 2*8 watt non-maintained |
|
45-200 |
AXD/8/NM3 |
Dished diffuser 8 watt non-maintained |
|
45-210 |
AXD/8/M3 |
Dished diffuser 8 watt maintained |
|
45-220 |
AXD/2X8/NM3 |
Dished diffuser 2*8 watt non-maintained |
|
45-230 |
AXD/2X8/M3 |
Dished diffuser 2*8 watt maintained |
Packing & Delivery time
Standard export cartons
Usually we can deliver in 10-15 days after receiving down payment.
FAQ
1. Can I get a sample before the order?
Yes, we can provide samples for your testing before you place an formal order. If the samples cost below $45, that’s free of charge.
2. Do you have price lists for all of your products?
Yes, but the price lists are only for your reference, because the prices are always influenced by raw materials’ price and other producing cost. Feel free to contact us, we can provide details ASAP.
3. Do you accept OEM?
Yes, we can do with your brand, including products and packing cartons.
Company profile
Open Group Holding LTD is one of the most professional suppliers specialized in Low-voltage electric, Building & Construction electric, LED lighting, Electric accessory, professional tools, etc.
We are engaged in circuit breaker/AC contactor/Distribution and other electric products for more than 15 years.
