Quick Details
-
Model Number:
-
Medium wire drawing machine
-
Design:
-
semiautomatic
-
Name:
-
630 take up machine
-
Application:
-
630 machine
-
After-sales service:
-
Engineers
-
szie:
-
0.4-2.76mm
-
Product name:
-
Spooler Winding Machine Take Up Machine
Quick Details
-
Use:
-
Drawing
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SWAN
-
Model Number:
-
Medium wire drawing machine
-
Design:
-
semiautomatic
-
Name:
-
630 take up machine
-
Application:
-
630 machine
-
After-sales service:
-
Engineers
-
szie:
-
0.4-2.76mm
-
Product name:
-
Spooler Winding Machine Take Up Machine
Specification

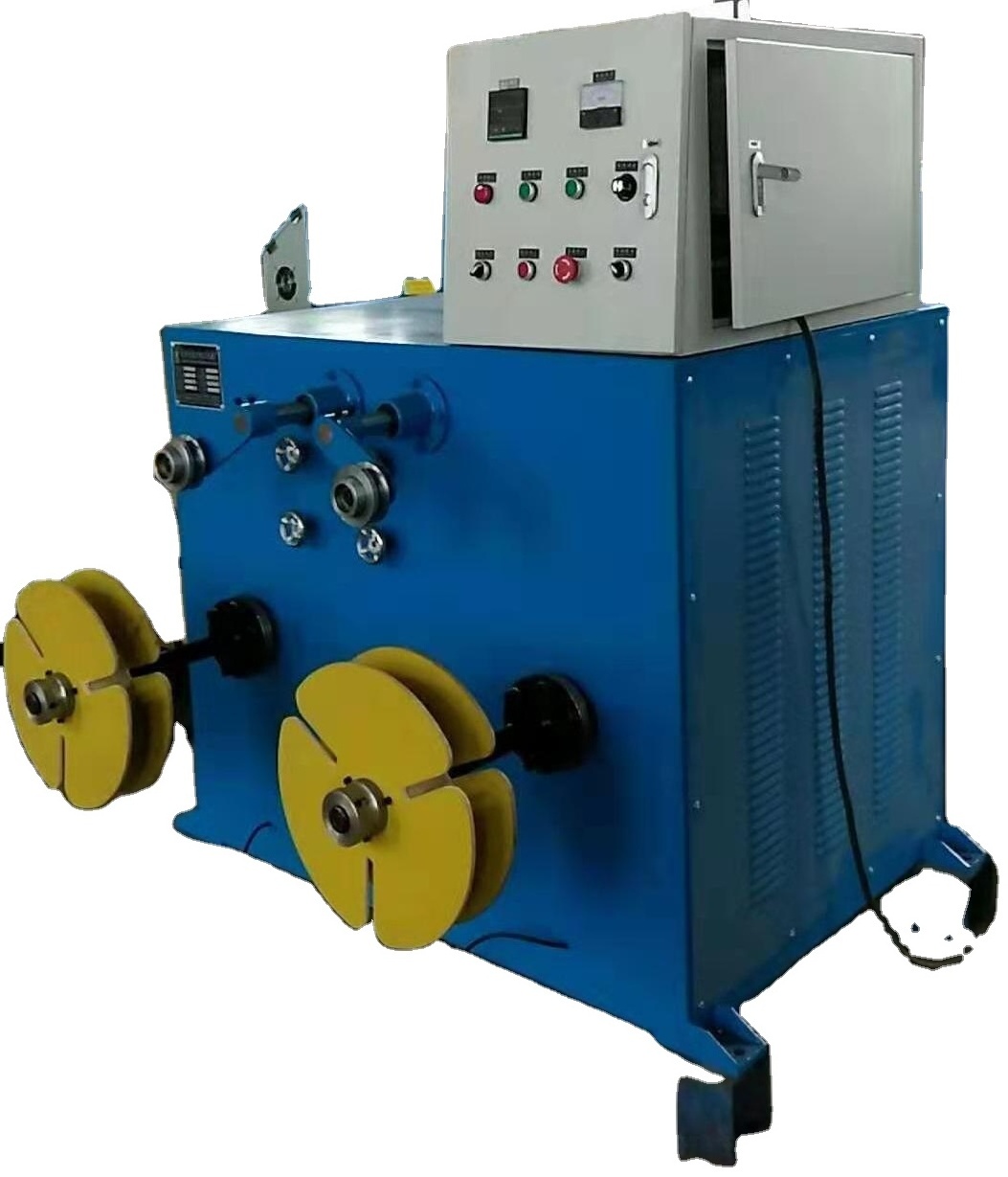

DF-WS630 spool type taking-up Machine
|
Machine Type
|
WS630
|
|
Taking-up wire diameter range
|
0.4～2.0 ㎜
|
|
Mechanical speed
|
Max2000 m/min
|
|
Taking-up Motor power
|
AC 15 kw
|
|
Applied spool
|
PND500~630（the supplier provide the spool drawing，and needs the confirmation of the user）
|
|
Spool Capacity （Max.）
|
300kg~500 kg
|
|
Brake Type
|
Air hydraulic disc brake
|
|
Overall size L×W×H
|
Overall size L×W×H
|
|
Machine Net Weight
|
About 1780 kg
|
630 Bobbin take up
Electronic control system
Tension control
Customer factory display
