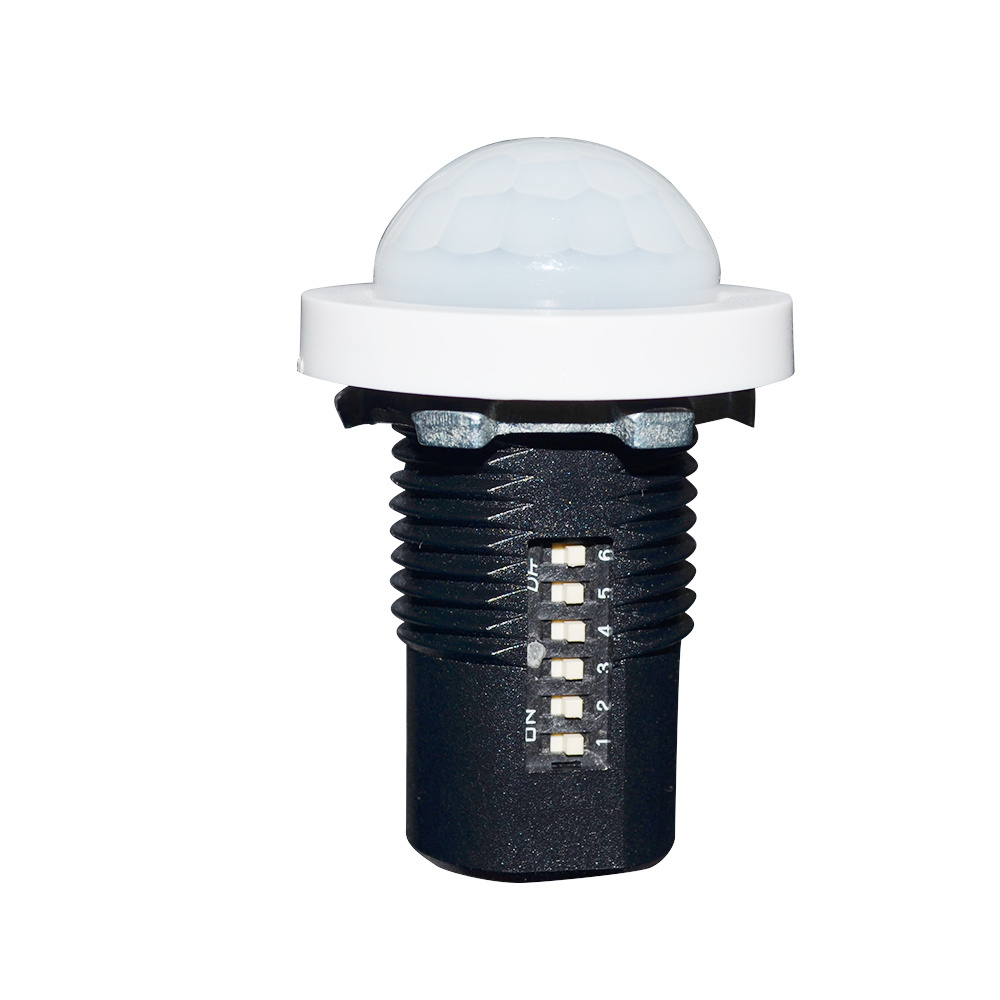

Quick Details
-
Model Number:
-
ANT-4A
-
Type:
-
PIR Sensor
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT, BRILLIANT
-
Theory:
-
PIR
-
Output:
-
0-10V dimming signal
-
Product Model:
-
ANT-4A
-
Input Voltage:
-
10-28VDC,>50mA
-
Certificate:
-
UL
-
Mounting height:
-
15ft(4.5m) Max.
-
Warranty:
-
5 Years
-
Color:
-
White Black
-
Material:
-
Plastic
Quick Details
-
Usage:
-
For commercial lighting automation
-
Mounting Type:
-
fixture sensor
-
Description:
-
fixture sensor
-
Model Number:
-
ANT-4A
-
Type:
-
PIR Sensor
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT, BRILLIANT
-
Theory:
-
PIR
-
Output:
-
0-10V dimming signal
-
Product Model:
-
ANT-4A
-
Input Voltage:
-
10-28VDC,>50mA
-
Certificate:
-
UL
-
Mounting height:
-
15ft(4.5m) Max.
-
Warranty:
-
5 Years
-
Color:
-
White Black
-
Material:
-
Plastic
Specifications
|
Motion Sensing
|
Passive IR
|
|
Input Power
|
10-28VDC,>50mA
|
|
Control Output
|
0-10V,max 25mA sinking current
|
|
Mounting height
|
15ft(4.5m) Max.
|
|
Color coding of cable
|
Input:Brown(VCC), Yellow(GND), Dimming : Violet(+),Gray(-)
|
|
Detection angle
|
120°
|
|
Operating temperature
|
-20°C~70°C
|
|
IP rating
|
IP20
|
|
Setting
|
Dip switch or remote control( the settings by the last time operation)
|
|
Warm up time
|
40seconds( Connect low voltage by first time )
|
Products Description
Remote Control
Functions
WIRE CONNECTION DIAGRAM
COVERAGE PATTERNS
