Quick Details
-
Product name:
-
High efficiency custom shaped size flexible solar panels
-
Current:
-
Can be customized.
-
Voltage:
-
Can be customized.
-
Power:
-
Can be customized.
-
Size:
-
Can be customized.
Quick Details
-
Max. Power:
-
Can be customized.
-
Material:
-
Monocrystalline Silicon
-
Place of Origin:
-
Jiangsu, China
-
Product name:
-
High efficiency custom shaped size flexible solar panels
-
Current:
-
Can be customized.
-
Voltage:
-
Can be customized.
-
Power:
-
Can be customized.
-
Size:
-
Can be customized.

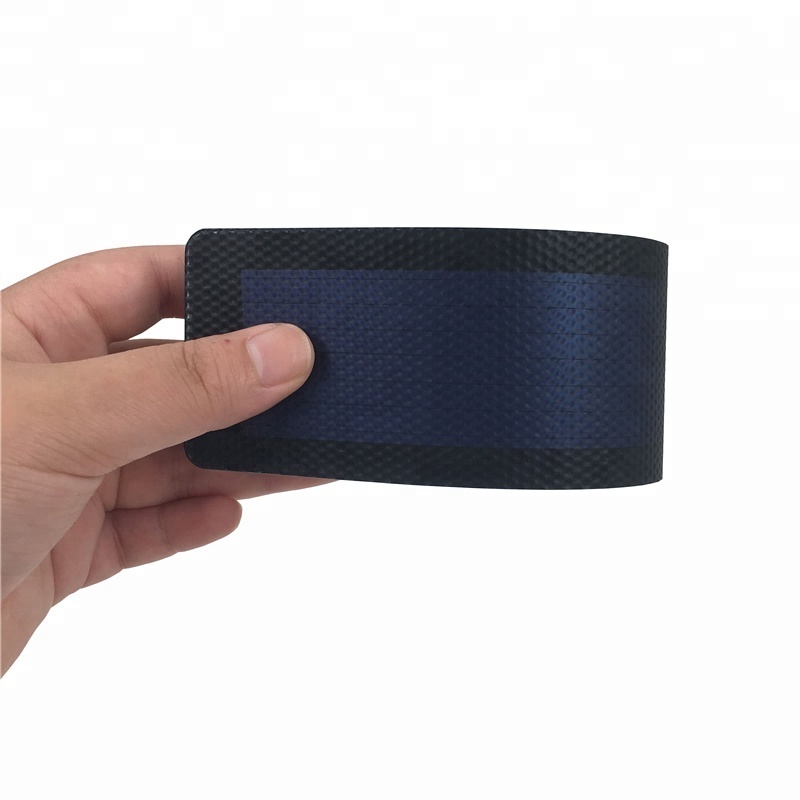

High efficiency custom shaped size flexible solar panels
Encapsulation Methods:
PVC film
,
PET film
, or
PET/EVA lamination
etc.
Application
:
Lawn lamp
,
Garden lamp
,
Indication light,
Decoration light, Spotlight,
Pest killing lamp, Solar floating light, Artificial lamp, Mobile charger,
Car battery charger, Outdoor electric equipment charger, Spray pump,
Pet house, Rat Repellent, Bird Repellent, Fan hat, Toy,
Electric thermometer, Torch etc.
Commonly Used Solar Module Paratmeter Table :
| Model (Mono) | Peak Power (W) | Voc(V) | Lsc(A) | Vmp(V) | Lmp(A) | Module Size L*W*H(mm) | Weight(Kg) | Cell Type |
| KYSP-M5 | 5 | 10.8 | 0.61 | 8.7 | 0.57 | 280*190*15 | 0.8 | Mono |
| KYSP-M10 | 10 | 21.6 | 0.61 | 17.4 | 0.57 | 340*240*17 | 1.2 | Mono |
| KYSP-M20 | 20 | 21.6 | 1.21 | 17.4 | 1.14 | 480*340*23 | 2.2 | Mono |
| KYSP-M30 | 30 | 21.6 | 1.82 | 17.4 | 1.72 | 510*450*23 | 3.2 | Mono |
| KYSP-M40 | 40 | 21.6 | 2.43 | 17.4 | 2.29 | 670*430*23 | 3.6 | Mono |
| KYSP-M50 | 50 | 21.6 | 3.04 | 17.4 | 2.87 | 670*540*25 | 4.1 | Mono |
| KYSP-M60 | 60 | 21.6 | 3.65 | 17.4 | 3.44 | 700*670*25 | 6 | Mono |
| KYSP-M80 | 80 | 21.6 | 4.87 | 17.4 | 4.59 | 1200*550*30 | 8 | Mono |
| KYSP-M100 | 100 | 21.6 | 6.09 | 17.4 | 5.74 | 1200*550*30 | 8 | Mono |
| KYSP-M110 | 110 | 21.6 | 6.7 | 17.4 | 6.32 | 1100*670*30 | 9 | Mono |
| KYSP-M120 | 120 | 21.6 | 7.31 | 17.4 | 6.89 | 1200*670*35 | 10 | Mono |
| KYSP-M130 | 130 | 21.6 | 7.91 | 17.4 | 7.47 | 1332*808*35 | 12 | Mono |
| KYSP-M140 | 140 | 26.6 | 8.52 | 17.4 | 8.04 | 1480*670*35 | 13 | Mono |
| KYSP-M150 | 150 | 21.6 | 9.13 | 17.4 | 8.62 | 1480*670*35 | 13 | Mono |
| KYSP-M160 | 160 | 21.6 | 9.74 | 17.4 | 9.19 | 1480*670*35 | 16 | Mono |
| KYSP-M180 | 180 | 43.2 | 5.48 | 34.8 | 5.17 | 1580*808*35 | 16 | Mono |
| KYSP-M190 | 190 | 43.2 | 5.78 | 34.8 | 5.45 | 1580*808*35 | 16 | Mono |
| KYSP-M200 | 200 | 27 | 9.73 | 21.78 | 9.18 | 1480*810*35 | 21 | Mono |
| KYSP-M260 | 260 | 36 | 9.49 | 29.04 | 8.95 | 1640*990*40 | 21 | Mono |
| KYSP-M310 | 310 | 43.2 | 9.43 | 34.84 | 8.89 | 1950*990*50 | 23 | Mono |
Remarks: variety specifications and different encapsulations of solar panels can be customized according to customers demand.
