Quick Details
-
Brand Name:
-
Ronar Smith
-
Weight (KG):
-
10 KG
-
Wavelength:
-
10600/1064/532/355nm
-
Marking Speed:
-
1.5m/s
-
Typical scan angle:
-
+-0.35 rad
-
Power:
-
15V DC
-
Positioning Speed:
-
5m/s
-
Singal:
-
Digital
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Spare Parts Type:
-
Scan Head
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
Ronar Smith
-
Weight (KG):
-
10 KG
-
Wavelength:
-
10600/1064/532/355nm
-
Marking Speed:
-
1.5m/s
-
Typical scan angle:
-
+-0.35 rad
-
Power:
-
15V DC
-
Positioning Speed:
-
5m/s
-
Singal:
-
Digital
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Jiangsu
|
|
Condition
|
New
|
|
Warranty
|
1 Year
|
|
|
Free spare parts, Video technical support, Field maintenance and repair service, Online support, Field installation, commissioning and training
|
|
Spare Parts Type
|
Scan Head
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2023
|
|
Brand Name
|
Ronar Smith
|
|
Key Selling Points
|
High-accuracy
|
|
Showroom Location
|
Singapore
|
|
Applicable Industries
|
Manufacturing Plant, Retail, Printing Shops, laser engraving, marking industry
|
|
Weight (KG)
|
10KG
|
|
Wavelength
|
10600/1064/532/355nm
|
|
Marking Speed
|
1.5m/s
|
|
Typical scan angle
|
+-0.35 rad
|
|
Power
|
15V DC
|
|
Positioning Speed
|
5m/s
|
|
Singal
|
Digital
|
Laser Galvanometer Scanner
A whole laser marking head (or called laser scanner) consists of two scan mirrors, two galvanometers (or called galvo-scanner
motor) & drive cards, a XY mount, a scanning lens (f-theta lens), an interface card (or called D/A card), a set of marking
software and a DC power supply.
A laser beam is reflected from two scan mirrors in turn, and directed through a focusing lens. The mirrors are capable of high
speed deflection about a rotation axis, being driven by a galvo-scanner motor.
motor) & drive cards, a XY mount, a scanning lens (f-theta lens), an interface card (or called D/A card), a set of marking
software and a DC power supply.
A laser beam is reflected from two scan mirrors in turn, and directed through a focusing lens. The mirrors are capable of high
speed deflection about a rotation axis, being driven by a galvo-scanner motor.

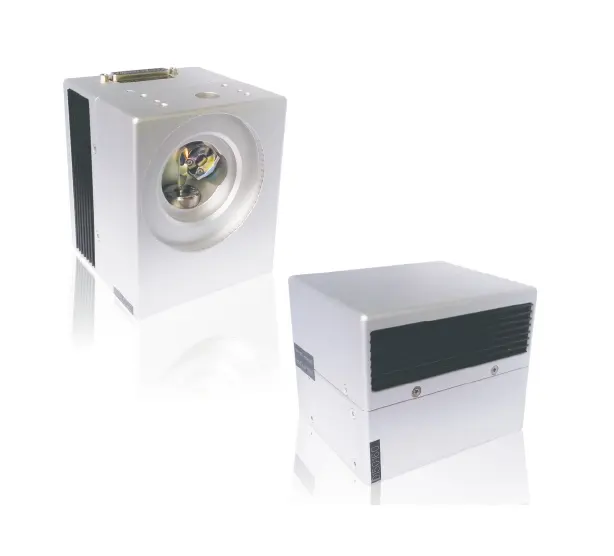

ScanBoxPS4F10
ScanBoxPS4F10-2D ScanHead entrance aperture is 10mm, can be used in optical scanning, laser marking, drilling, micromachining,
medical and other industries. Such model is designed for low-speed applications, providing the highest performance-price ratio
among the 10mm scanners.
Advanced servo control algorithm, high efficient photoelectric sensing and positioning technology are used in the system to meet
most application demands for the product performance and positioning accuracy. We guarantee the permanent stability of the system
by our demanding material control, well-developed manufacture technologies, dust-free plant and long-period aging test.
We are capable to provide our clients with strong support in various applications with our gifted R&D team and post-sale service
staff, stringent quality assurance system and the professional experiences we have gained over the years.
medical and other industries. Such model is designed for low-speed applications, providing the highest performance-price ratio
among the 10mm scanners.
Advanced servo control algorithm, high efficient photoelectric sensing and positioning technology are used in the system to meet
most application demands for the product performance and positioning accuracy. We guarantee the permanent stability of the system
by our demanding material control, well-developed manufacture technologies, dust-free plant and long-period aging test.
We are capable to provide our clients with strong support in various applications with our gifted R&D team and post-sale service
staff, stringent quality assurance system and the professional experiences we have gained over the years.
