Quick Details
-
Nozzle material:
-
stainless steel 304 or others
-
Connecting Thread:
-
BSPT, NPT or others
-
Working Pressure:
-
13 ~200bar
-
Flow Switcher:
-
Gravity switching
-
Droplet Size:
-
Dv0.99≤130um
-
Certificate:
-
ISO9001:2015; ISO14001
-
Warranty:
-
12 months
-
Application:
-
water mist fire extinguishing system
-
Product name:
-

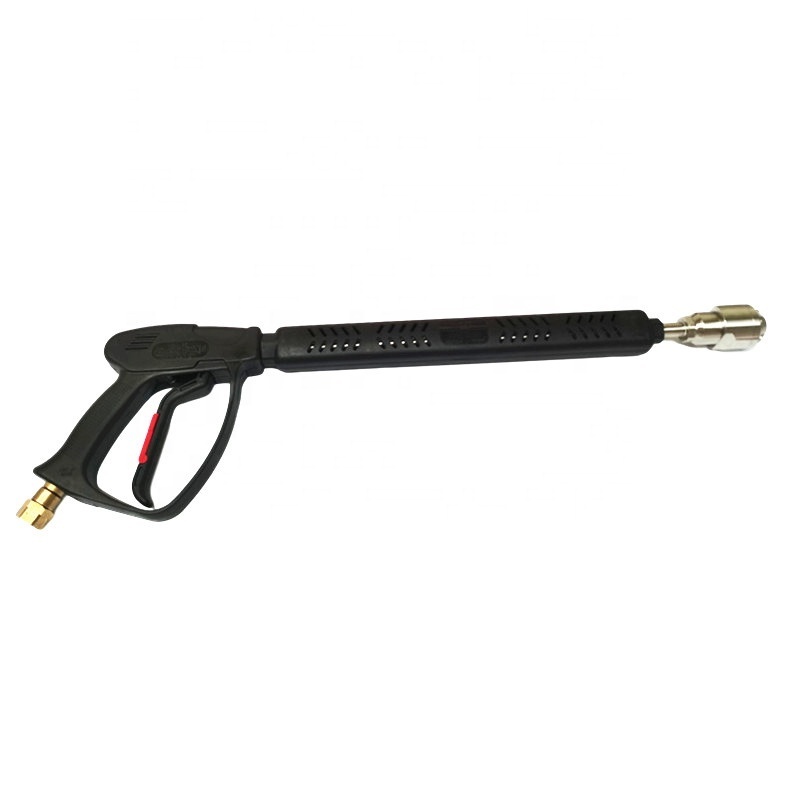

New trend easy carry water mist fire fighting 2.5 inch fire nozzle
-
Max Working Pressure:
-
140Bar
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Lanzhong
-
Model Number:
-
QXW
-
Nozzle material:
-
stainless steel 304 or others
-
Connecting Thread:
-
BSPT, NPT or others
-
Working Pressure:
-
13 ~200bar
-
Flow Switcher:
-
Gravity switching
-
Droplet Size:
-
Dv0.99≤130um
-
Certificate:
-
ISO9001:2015; ISO14001
-
Warranty:
-
12 months
-
Application:
-
water mist fire extinguishing system
-
Product name:
-
New trend easy carry water mist fire fighting 2.5 inch fire nozzle
-
Max Working Pressure:
-
140Bar
Features
1. It is pruduced in accordance with relevant standards strictly;
2. Excellent customize service at factory price;
3. OEM service;
4. Two spray modes: water fine mist & jet stream mode;
5. Droplets size distribution of water mist mode: Dv0.99≤130microns at 100bar; high performance in saving water and fire extinguishing;
6. Jet stream mode spray distance 11-18m;
7. Gravity switch mode, mode switching faster and easier;
8. The anti-slip design of the gun barrel increases the grip friction and resists the kickback；
9. Piston grip anti-misopening lock;
10. Gun nozzle and barrel pipe are stainless steel 304;
11. Work with Trolley-unit, vehicle-mounted and backpack water mist fire extinguishing equipment;
11. For class A, class B and class E fires.
4. Two spray modes: water fine mist & jet stream mode;
5. Droplets size distribution of water mist mode: Dv0.99≤130microns at 100bar; high performance in saving water and fire extinguishing;
6. Jet stream mode spray distance 11-18m;
7. Gravity switch mode, mode switching faster and easier;
8. The anti-slip design of the gun barrel increases the grip friction and resists the kickback；
9. Piston grip anti-misopening lock;
10. Gun nozzle and barrel pipe are stainless steel 304;
11. Work with Trolley-unit, vehicle-mounted and backpack water mist fire extinguishing equipment;
11. For class A, class B and class E fires.
Selection table
Water Mist Spray Gun for Fire Fighting
|
Model
|
K Factor
|
Min. Working Pressure
|
Max Working Pressure
|
Fine mist range (m)
|
Mist range (m)
|
Connector thread
|
|
QXW L10/12
|
1.2
|
10MPa
|
14MPa
|
7±1
|
11±1
|
Rp3/8
|
|
QXW L10/15
|
1.5
|
10MPa
|
14MPa
|
7±1
|
11±1
|
Rp3/8
|
|
QXW L10/20
|
2.0
|
10MPa
|
14MPa
|
8±1
|
12±1
|
Rp3/8
|
|
QXW L10/25
|
2.5
|
10MPa
|
14MPa
|
8±1
|
12±1
|
Rp3/8
|
|
QXW L10/30
|
3.0
|
10MPa
|
14MPa
|
10±1
|
15±1
|
Rp3/8
|
|
QXW L10/35
|
3.5
|
10MPa
|
14MPa
|
10±1
|
15±1
|
Rp3/8
|
|
QXW L10/40
|
4.0
|
10MPa
|
14MPa
|
10±1
|
15±1
|
Rp3/8
|
|
QXW L10/45
|
4.5
|
10MPa
|
14MPa
|
12±1
|
16±1
|
Rp1/2
|
|
QXW L10/50
|
5.0
|
10MPa
|
14MPa
|
12±1
|
16±1
|
Rp1/2
|
|
QXW L10/55
|
5.5
|
10MPa
|
14MPa
|
12±1
|
18±1
|
Rp1/2
|
|
QXW L10/60
|
6.0
|
10MPa
|
14MPa
|
12±1
|
18±1
|
Rp1/2
|
