Quick Details
-
Brand Name:
-
JINGTU
-
Model Number:
-
Aimag S
-

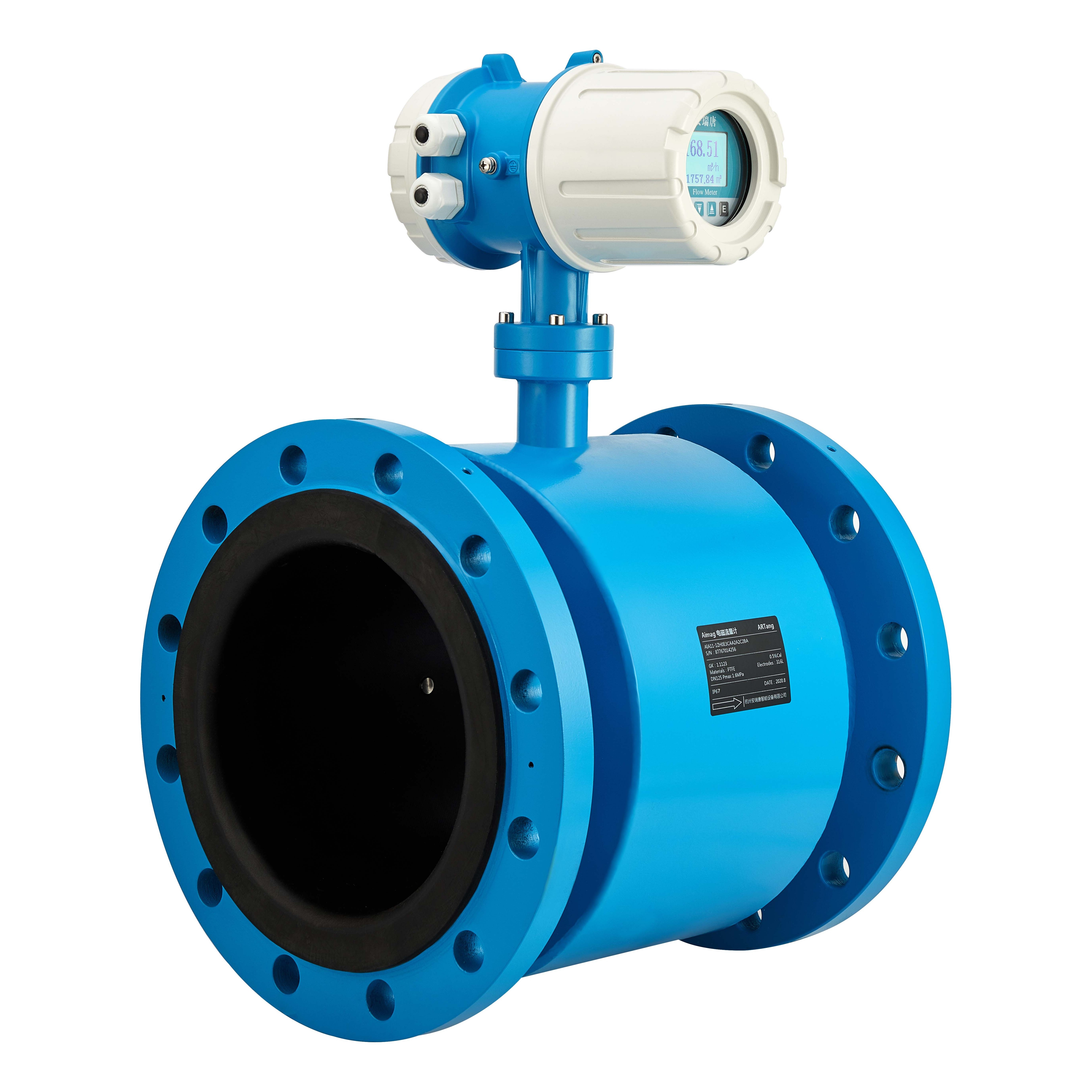

Product Name:
-
Electromagnetic Flow Meter
-
Keywords:
-
Electromagnetic Flowmeter Slurry
-
Medium:
-
Mud, Slurry, Pulp, Sludge
-
Application:
-
Pulp Industry
-
Connection:
-
Flange
-
Output signal:
-
4~20mA / RS485/HART
-
Diameter Nominal:
-
DN15 ~ DN600
-
Service:
-
Customized
-
Liner material:
-
PTFE/PFA/PU
-
Protection Class:
-
IP67/ IP68(optional)
Quick Details
-
Type:
-
Mud Flowmeters, Slurry Flowmeters, Pulp Flowmeters, Sludge Flowmeters
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGTU
-
Model Number:
-
Aimag S
-
Product Name:
-
Electromagnetic Flow Meter
-
Keywords:
-
Electromagnetic Flowmeter Slurry
-
Medium:
-
Mud, Slurry, Pulp, Sludge
-
Application:
-
Pulp Industry
-
Connection:
-
Flange
-
Output signal:
-
4~20mA / RS485/HART
-
Diameter Nominal:
-
DN15 ~ DN600
-
Service:
-
Customized
-
Liner material:
-
PTFE/PFA/PU
-
Protection Class:
-
IP67/ IP68(optional)
Products Description
|
Name
|
Intelligent electromagnetic flowmeter
|
|
Accuracy
|
±0.2%RS;±0.5%RS
|
|
Nominal diameter
|
3-3000mm
|
|
Medium conductivity
|
≥5µS/cm
|
|
Nominal Diameter
|
DN6-DN3000
|
|
Highest medium
temperature |
-20℃～80℃, Neoprene lining
|
|
|
-20℃～65℃, Polyurethane rubber lining
|
|
|
-40℃～120℃, PTFE lining (integrated)
|
|
|
-40℃～180℃, PTFE lining (separate type)
|
|
Electrode Material
|
316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
|
|
Explode-proof Class
|
NEPSI CNEX Exdb eb ia IIC T3…T6 Gb
|
|
Protection Class
|
Incorporate type-----IP67
|
|
|
Separate body-type----IP67/IP68
|
|
Supply Power
|
85～265VAC，45～63Hz；18～28VDC
|
|
Number of electrodes
|
Standard configuration 4 electrodes(two measuring electrodes plus two grounding electrode)
|
