Quick Details
-
Color:
-
RGB
-
Panel Size:
-
320*160
-
Place of Origin:
-
Henan, China
-
Model Number:
-
P1.8
-
Brightness:
-
1000
-
pixel density:
-
280000
-
Contrast Ratio:
-
5000
-
Color Depth:
-
3000
-
Lifespan (hours):
-
100000
-
IP Rating:
-
38
-
HS Code:
-
8531200000
-
Resolution:
-
250000
-
View Angle（H/V）:
-
140
-
Product name:
-
P1.8 indoor module
-
Certificate:
-
CE ROHS FCC
-
Module size:
-
320x160mm
-
LED chip:
-
Epistar
-
Pixel density:
-
280000dots/sqm
-
Pixel configuration:
-
3in1 (1R1PG1B)
-
Life span:
-
100000 Hours
-
Viewing angle:
-
160H/160V
-
Scan mode:
-
1/43S
-
Module resolution:
-
172*86dots
Quick Details
-
Application:
-
Indoor, led display
-
Type:
-
LED
-
Brand Name:
-
ZC
-
Color:
-
RGB
-
Panel Size:
-
320*160
-
Place of Origin:
-
Henan, China
-
Model Number:
-
P1.8
-
Brightness:
-
1000
-
pixel density:
-
280000
-
Contrast Ratio:
-
5000
-
Color Depth:
-
3000
-
Lifespan (hours):
-
100000
-
IP Rating:
-
38
-
HS Code:
-
8531200000
-
Resolution:
-
250000
-
View Angle（H/V）:
-
140
-
Product name:
-
P1.8 indoor module
-
Certificate:
-
CE ROHS FCC
-
Module size:
-
320x160mm
-
LED chip:
-
Epistar
-
Pixel density:
-
280000dots/sqm
-
Pixel configuration:
-
3in1 (1R1PG1B)
-
Life span:
-
100000 Hours
-
Viewing angle:
-
160H/160V
-
Scan mode:
-
1/43S
-
Module resolution:
-
172*86dots

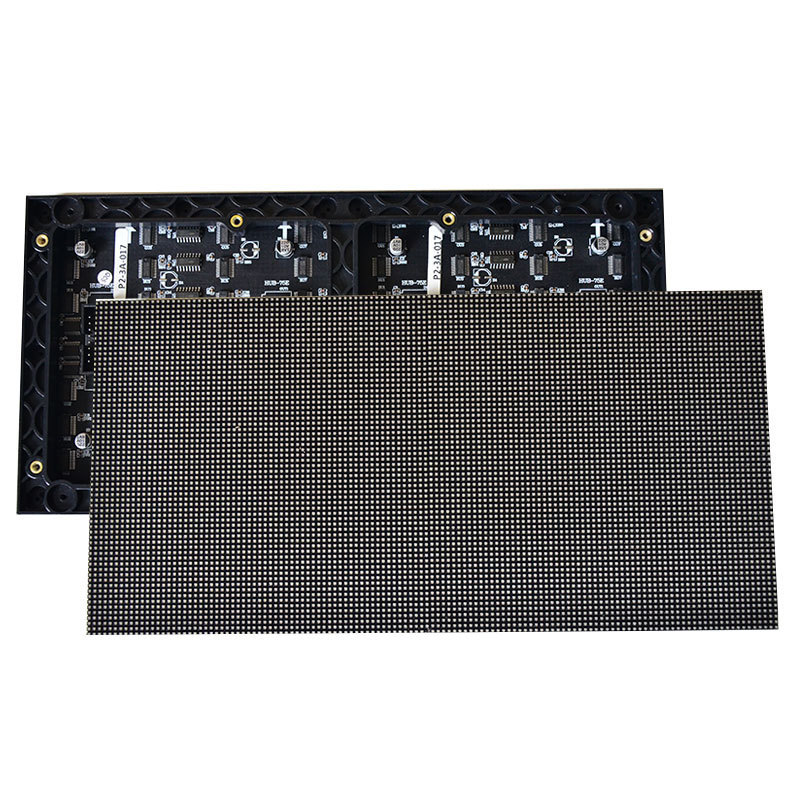

LED display unit panel P1.8 full color indoor SMD 320*160 full color high-end small spacing LED module
| Henan True color electronic equipment co. LTD | ||
| INDOOR P1.8 SMD 3IN1 TECHNICAL PARAMETERS | ||
| Model Number | P1.8-43S | |
| Module size | 320mm*160mm | |
| Pixel pitch | 1.8mm | |
| Pixels Density | 280000/m2 | |
| Pixel configuration | 1R1G1B | |
| Pixel configuration | SMD 3IN1-1515 | |
| Pixel resolution | 160dots(W)80 dots(H) | |
| Max Power | 30 | |
| Module thickness | 13mm | |
| Weight | 0.45KG | |
| Drive type | Constant drive | |
| Scan mode | 1/40scan | |
| Port type | HUB75E | |
| Brightness of white balanc | ≥1000cd/M2 | |
| Cabinet | Dimension | 640mm*480mm |
| Monomer Module Number | 6pcs | |
| Power supply | 5V/40A | |
| Pixel per cabinet | 344*258 | |
| Best viewing distance | 2M-10M | |
| Best viewing angle | 140(W) 120(H) | |
| Temperature | storage:-35-+85 | |
| working:-20-+50 | ||
| Relative humidity | 10%-95% | |
| Thickness | 65mm | |
|
Power |
Working voltage | AC220V±10% |
| Average Power consumption | <280W/m2 | |
| Max Power consumption | <700W/m2 | |
| Current | <15mA(single LED) | |
|
Control system |
CPU | Pentium4 or above |
| Operation system | WIN98/2000/NT/XP/WIN7/WIN10 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | >3840HZ | |
| Grey scale/colors | 65536 | |
| 65536gray level/16.7M colors | ||
| MTBF | >9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥1024*768 | |
