Quick Details
-
Application:
-
construction building
-
Design Style:
-
Modern
-
Type:
-
Steel prop
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
TYT
-
Model Number:
-
Q235
-
Product name:
-
TYT Steel prop
-
Surface treatment:
-
Galvanized/Hot Dipped Galvanized /Powder Coated
-
Certificate:
-
ISO9001:2008.CE
-
Material:
-
Q195 / Q235 / Q345
-
MOQ:
-
1set
-
Package:
-
Bundle Loaded
-
Adjustable Height:
-
customized
-
Usage:
-
Building Project
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, Others
-
Application:
-
construction building
-
Design Style:
-
Modern
-
Type:
-
Steel prop
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
TYT
-
Model Number:
-
Q235
-
Product name:
-
TYT Steel prop
-
Surface treatment:
-
Galvanized/Hot Dipped Galvanized /Powder Coated
-
Certificate:
-
ISO9001:2008.CE
-
Material:
-
Q195 / Q235 / Q345
-
MOQ:
-
1set
-
Package:
-
Bundle Loaded
-
Adjustable Height:
-
customized
-
Usage:
-
Building Project

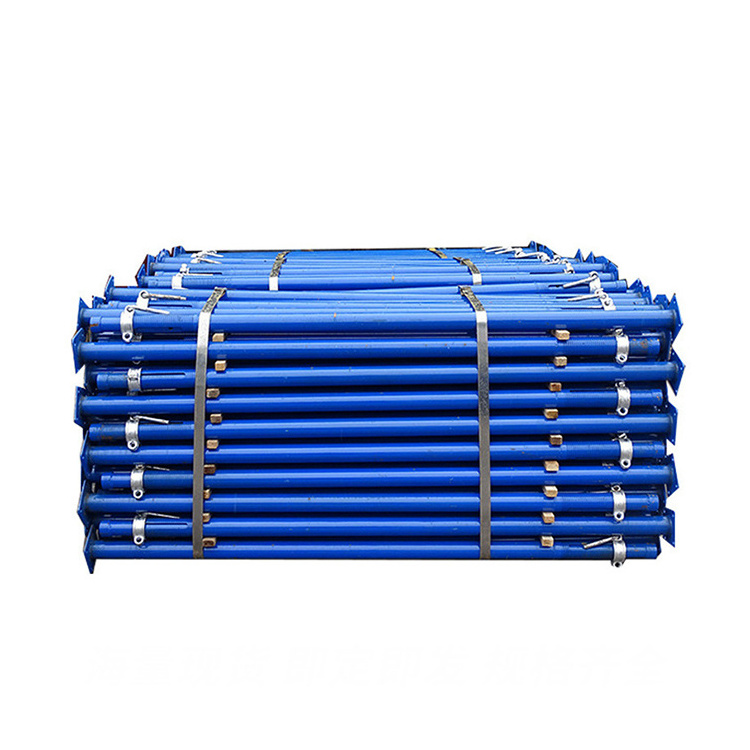

Adjustable Steel Prop Metal Shoring Props For Construction Formwork Jack Support Scaffolding Jack Steel Props
Product Description
|
Commodity
|
TYT Brand Italian Steel Porp
|
|
|
||
|
Steel Grade
|
Chinese Q195/Q215/Q235/Q355,other equivalent S195/S235/S355/ GR.B /GR.C /STK400 /STK500
|
|
|
||
|
Standard
|
EN1065,BS1139
|
|
|
||
|
Thickness
|
Italian prop
|
1.4mm-2.5mm
|
|
||
|
Diameter
|
Italian prop
|
Out Diameter:56mm
|
Inner Diameter：48mm
|
||
|
|
Pre Galvanized
|
30-275g/㎡
|
|
||
|
|
Hot dip galvanized
|
210-550g/㎡
|
|
||
|
Accessories
|
screw tube
|
40mm/80mm/195mm/202mm
|
|
||
|
|
G pin
|
Φ12/Φ13mm/Φ14mm
|
|
||
|
|
Square Plate/Flower Plate/U-head
|
4.0mm/5.0mm/6.0mm/8.0mm
|
|
||
|
|
Italian prop
|
1cup nut
|
0.83kg-0.85kg
|
||
|
Advantage
|
Make sure that each part is fully welded to the main body.
|
|
|
||
|
|
All steel pipes used are primary pipes.
|
|
|
||
|
|
It is easy to assemble and has excellent stability and load bearing capacity.
|
|
|
||
|
Mark
|
Mark or embossing
|
|
|
||
|
Application field
|
Widely used in construction, stage, concrete formwork, tunnel, demolition, commercial industry, bridge road, airport, oil and gas,
shipping, oil and other industries. |
|
|
||
|
Prop strength
|
1KN-6KN Depending on the steel grade and thickness, the supporting weight is different.
|
|
|
||
|
Surface finish
|
pre galvanized,hot dip galvanized,electronic galvanized,painting ,power coated.
|
|
|
||
|
Height
|
Can be customized accordingly.
|
|
|
||
|
Certificate
|
ISO 9000-2015,ISO14001-2004,CE,LR,ICC,BC etc.
|
|
|
||
|
Packing
|
Packed by sling,in bulk,woven cloth with 7 slats, according to the requirements of customers.
|
|
|
||
|
Production capacity
|
Produce 50,000 sets in a month.
|
|
|
||
|
Minimum order quantity
|
1*20'GP or 40'GP container
|
|
|
||
|
Techinical
|
Welding by CO2 protection
|
|
|
||
|
Shipping Port
|
Xin'gang,China
|
|
|
||
|
Trade Term
|
EXW,FOB,CFR,CIF,FCA,CPT,CIP
|
|
|
||
|
Payment Term
|
T/T,LC or as discussion
|
|
|
||
|
Delivery Time
|
10-30days(based on size & quantity)after collected down payment by T/T or LC.
|
|
|
||
