- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
CIVITTEST
-
Model Number:
-
TCP-250
-
Condation:
-
New
-
Standard:
-
BS. ASTM
-
Result:
-
Countting
-
Working principle:
-
Lever and weight
-
Material:
-
Stainless steel
-
Long leg travel:
-
1400MM
-
Static penetration force:
-
250KN
-
Track specifications:
-
300x82x55mm
-
Track material:
-
rubber or steel
Quick Details
-
Warranty:
-
1 year, 1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CIVITTEST
-
Model Number:
-
TCP-250
-
Condation:
-
New
-
Standard:
-
BS. ASTM
-
Result:
-
Countting
-
Working principle:
-
Lever and weight
-
Material:
-
Stainless steel
-
Long leg travel:
-
1400MM
-
Static penetration force:
-
250KN
-
Track specifications:
-
300x82x55mm
-
Track material:
-
rubber or steel

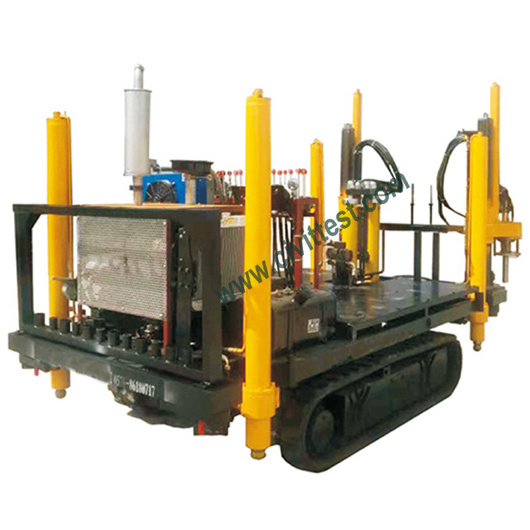

Soil Hydraulic roller track static cone penetrometers truck CPT
I. Use
An in-situ test to analyze changes in the nature of soil layers, divide soil layers, provide soil strength and deformation indicators, and identify liquefaction It can quickly and continuously detect the soil layer and its property changes.
II. Technical Specification
|
Number |
Name |
Technical indicators |
|
1 |
Maximum torque of anchor |
2800N.M |
|
2 |
Engine power |
22- -48KW |
|
3 |
Anchorage method |
rotating short beam |
|
4 |
Static penetration force |
250kN |
|
5 |
Long leg travel |
1400mm |
|
6 |
Short leg travel |
450mm |
|
7 |
Static walking speed low speed |
2.5km / h |
|
8 |
Static walking speed high speed |
4.2km/h |
|
9 |
Track material |
rubber track, steel track |
|
10 |
Probe specifications |
dia.36. 40, 42 thick-walled seamless pipes, 1m root |
|
11 |
Under anchor type |
Double acting under anchor device |
|
12 |
Track specifications |
300x82x55mm |
|
13 |
Climbing ability |
22 ° |
Soil Hydraulic roller track static cone penetrometers truck CPT
