Quick Details
-
Dimension(L*W*H):
-
3220*1670*2000mm
-
Weight:
-
3000
-
Working Pressure:
-
18 bar
-
Air capacity:
-
18m3/min
-
Product Name:
-

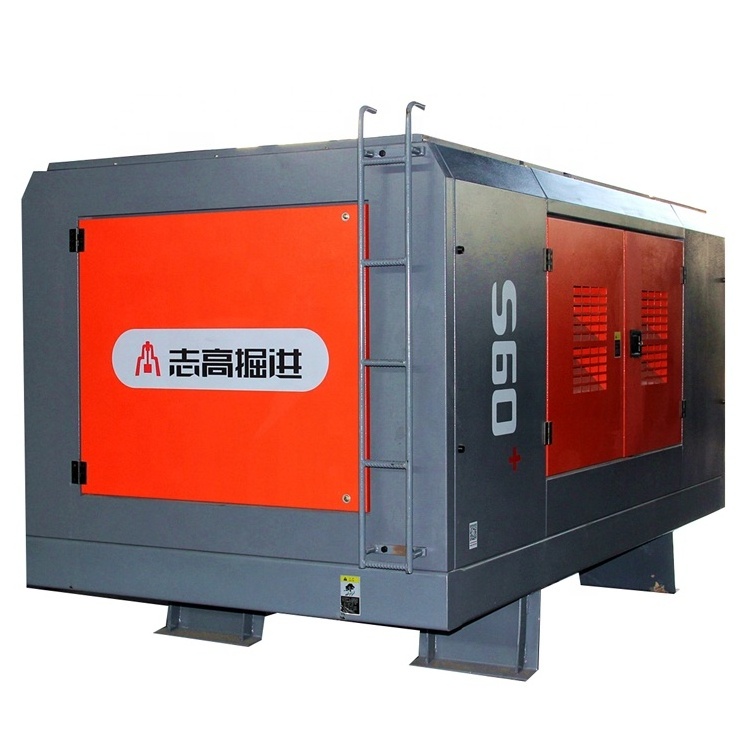

S60 Screw Air Compressor
-
Maintain Oil Change Rate:
-
80L
-
Fuel Tank Capacity:
-
220L
-
Air Evacuation Valve:
-
G1, G1-1/2
-
Style:
-
Single Screw Compression Type
-
Diesel Engine Brand:
-
Yuchai
-
Oil Conment:
-
≤ 6 ppm
-
Application:
-
Water Well Drilling, Rock Blasting Hole Drilling, etc.
-
Keywords:
-
Screw Air Compressor
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Philippines, Peru, Indonesia, Mexico, Thailand, Malaysia, Chile, Colombia, Romania, South Africa, Uzbekistan
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE, ISO9001
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
S60
-
Voltage:
-
24V
-
Dimension(L*W*H):
-
3220*1670*2000mm
-
Weight:
-
3000
-
Working Pressure:
-
18 bar
-
Air capacity:
-
18m3/min
-
Product Name:
-
S60 Screw Air Compressor
-
Maintain Oil Change Rate:
-
80L
-
Fuel Tank Capacity:
-
220L
-
Air Evacuation Valve:
-
G1, G1-1/2
-
Style:
-
Single Screw Compression Type
-
Diesel Engine Brand:
-
Yuchai
-
Oil Conment:
-
≤ 6 ppm
-
Application:
-
Water Well Drilling, Rock Blasting Hole Drilling, etc.
-
Keywords:
-
Screw Air Compressor
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Philippines, Peru, Indonesia, Mexico, Thailand, Malaysia, Chile, Colombia, Romania, South Africa, Uzbekistan
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE, ISO9001
Products Description
|
Model No.
|
Stage Type
|
F.A.D.
(m
3
/min)
|
Pressure (Bar)
|
Diesel Engine
|
Weight
(kg)
|
Dimension
(mm)
|
|
S60
|
Single-Stage
|
18
|
18
|
Yuchai, 162Kw
|
3000
|
3200*1670*2000
|
|
S85D
|
Two-Stage
|
24
|
22
|
Yuchai, 228Kw
|
3560
|
3560*1830*2050
|
|
S95CD
|
Two-Stage
|
29
|
24
|
Yuchai, 295Kw
|
4700
|
3950*2000*2300
|
|
S98D
|
Two-Stage
|
30
|
24
|
Yuchai, 295Kw
|
4620
|
3950*2000*2300
|
|
S100D
|
Two-Stage
|
31
|
25
|
Xichai, 309Kw
|
4600
|
3960*2000*2000
|
|
S125D
|
Two-Stage
|
35
|
30
|
Cummins, 410Kw
|
5820
|
4220*2000*2300
|
Product packaging
Packing & Container Loading
1.
Water well drilling rig is firmly fixed with steel wire ropes to ensure the safety and no damage of the cargo during transportation.
2.Screw Air Compressor
is firmly fixed with steel wire ropes to ensure the safety and no damage of the cargo during transportation.
3.Drilling Tools （such as hammer, drill bit, adapter, etc.) are packed in strong wooden case, it can keep cargo safety and no damage.
4. Drill Rods are Packed in pallets,
it can keep cargo safety and no damage.
