Quick Details
-
Grinding Length(mm):
-
1500
-
Max. Weight of Workpiece(kg):
-
150
-
Center Height (mm):
-
180
-
Wheel Size(mm):
-
600*75*305
-
Wheel Speed (rpm):
-
35
-
Roundness(mm):
-
2.5
-
Place of Origin:
-
Liaoning, China
-
Weight (KG):
-
4600
-
Power (kW):
-
11
-
Product name:
-

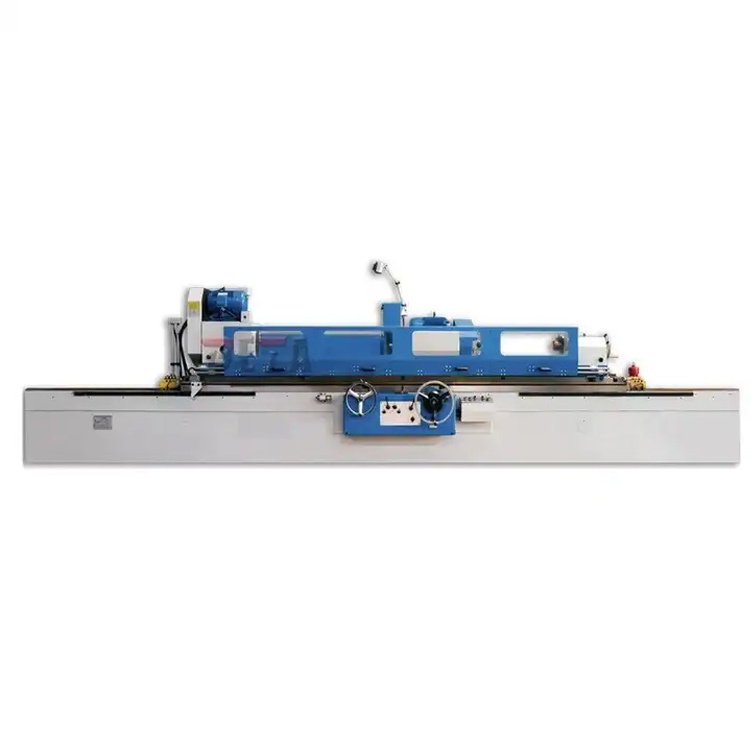

CNC Cylindrical Grinder Machine
-
Function:
-
Cylindrical Grinding Cnc Automatic
-
Application:
-
Metal Hardware Grinding
-
Max length ground(I.D):
-
1000,1500mm
-
Max grinding diameter:
-
320mm
-
Motor:
-
2 Sets
-
Roundness:
-
2.5μm
-
Center height:
-
180mm
-
Grinding head power:
-
11 KW
-
Precision:
-
High Precision High Accuracy
Quick Details
-
Grinding Diameter(Outer)(mm):
-
320
-
Max. Length of Workpiece (mm):
-
1500
-
Surface Roughness(μm):
-
0.2
-
Grinding Length(mm):
-
1500
-
Max. Weight of Workpiece(kg):
-
150
-
Center Height (mm):
-
180
-
Wheel Size(mm):
-
600*75*305
-
Wheel Speed (rpm):
-
35
-
Roundness(mm):
-
2.5
-
Place of Origin:
-
Liaoning, China
-
Weight (KG):
-
4600
-
Power (kW):
-
11
-
Product name:
-
CNC Cylindrical Grinder Machine
-
Function:
-
Cylindrical Grinding Cnc Automatic
-
Application:
-
Metal Hardware Grinding
-
Max length ground(I.D):
-
1000,1500mm
-
Max grinding diameter:
-
320mm
-
Motor:
-
2 Sets
-
Roundness:
-
2.5μm
-
Center height:
-
180mm
-
Grinding head power:
-
11 KW
-
Precision:
-
High Precision High Accuracy
Product Description
The series is equipped with internal grinding tools on the basis of ordinary external grinding machines, which are suitable for grinding the outer circle or inner hole of cylindrical or conical rotary bodies. The head frame adopts a frequency converter to realize stepless speed regulation, which can be adjusted at any Angle within 90 degrees counterclockwise to adapt to the chuck grinding of internal and external conical workpieces.
Product Features
1、The left and right guide rail adopts P-V structure,which is scraped by high precision manual, sothat the whole system products have high precision and high stability.
2、
The front and rear feed guide rail of grinding wheel can choose roller and wire rail structure.
3、
Classic control mechanism, simple, safe and reliable.
4、
M1350, M1450, M1363 series worktable and grinding wheel guide rail adopts high stablehydrostatic guide rail, high rigid dynamic and static pressure spindle.
5、
Universal workhead can be adjusted at any Angle within 90 degrees counterclockwise to adapt tochuck grinding internal and external conical workpiece.
Product Details
Product Paramenters
|
Description
|
|
unit
|
M1332
|
|||
|
Max. length ground(O.D)
|
|
mm
|
1000、1500
|
|||
|
Center height
|
|
mm
|
180
|
|||
|
Dia. Ground(O.D)
|
|
mm
|
8~320
|
|||
|
Max. weight of work piece
|
|
kg
|
150
|
|||
|
Workhead
|
|
|
|
|||
|
Center taper(MT)
|
|
MT
|
5
|
|||
|
Spindle speed /Stepless
|
|
r/min
|
50HZ:19~190
|
|||
|
Wheelhead
|
|
|
|
|||
|
Max. dimension of wheel(ODxWXID)
|
|
mm
|
600×75×305
|
|||
|
Wheel peripheral velocity
|
|
m/s
|
35
|
|||
|
Hand feed per.rev
|
|
mm
|
rough : 2 fine : 0.5
|
|||
|
Hand feed per.gra
|
|
mm
|
rough: 0.01 fine : 0.0025
|
|||
|
Table
|
|
|
|
|||
|
|
Cockwise
|
°
|
3°
|
|||
|
|
Anticlockwise
|
°
|
7° (1000) 6°(1500)
|
|||
|
Longitudinal speed range of table
|
|
m/min
|
0.1~4
|
|||
|
Tailstock
|
|
|
|
|||
|
Center tape(MT)
|
|
MT
|
4
|
|||
|
Quill travel
|
|
mm
|
30
|
|||
|
Motor
|
|
|
|
|||
|
Wheelhead motor power
|
|
Kw
|
11
|
|||
|
Workhead motor power
|
|
Kw
|
1.1
|
|||
|
Machining accuracy
|
|
|
|
|||
|
Roundness
|
|
μm
|
2.5
|
|||
|
Cylindricity
|
|
μm
|
8
|
|||
|
Roughness
|
|
μm
|
Ra0.2
|
|||
|
Machine
|
|
|
|
|||
|
Gross weight
|
|
t
|
4.6(1000) 5.1 (1500)
|
|||
|
|
|
|
326×190×205 ( 1000)
|
|||
|
|
|
|
426×190×205 (1500)
|
|||
Industry application
Recommend Products
