According to different marking machine and customer requirement, we will provide different power and brand gasoline engine. In generally we use China zongshen and Honda
s
engine.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
1.12*0.79*0.95m
-
Weight:
-
60 kg
-
Features:
-
Single Cylinders
-
Product Name:
-
Manual Airless Cold Paint Road Marking Machine
-
Line Types:
-
Cold Paint White
-
Mark width:
-
8-25cm
-
Engine:
-
Gasline Engine
-
Max line speed:
-
130m/min
-
Flow rate:
-
3.8L/M
-
max working pressure:
-
8-16MPA
-
Color:
-
Customized Color
-
Usage:
-
Making Marks
Quick Details
-
Power:
-
5.5KW, 6.5HP
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HonorMach
-
Dimension(L*W*H):
-
1.12*0.79*0.95m
-
Weight:
-
60 kg
-
Features:
-
Single Cylinders
-
Product Name:
-
Manual Airless Cold Paint Road Marking Machine
-
Line Types:
-
Cold Paint White
-
Mark width:
-
8-25cm
-
Engine:
-
Gasline Engine
-
Max line speed:
-
130m/min
-
Flow rate:
-
3.8L/M
-
max working pressure:
-
8-16MPA
-
Color:
-
Customized Color
-
Usage:
-
Making Marks
Product Description

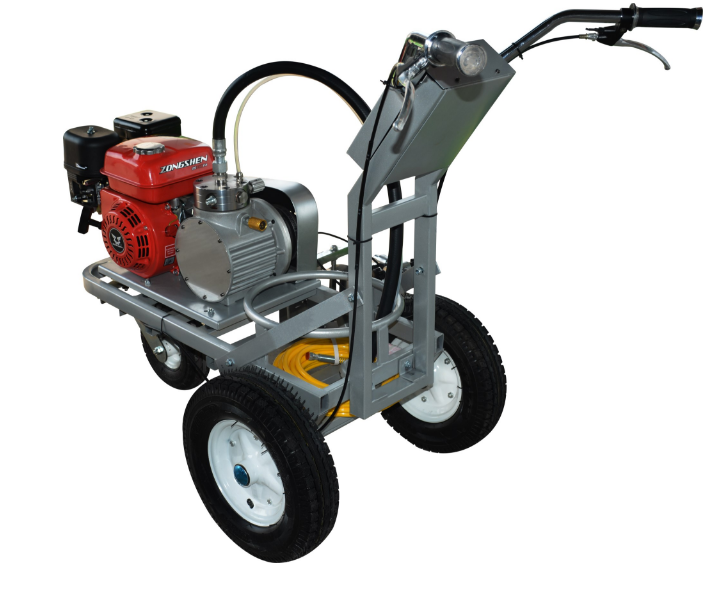

The 5th generation HonorMach brand
road marking paint machine
is a high-pressure flow-type airless sprayer, which uses the engine to drive the piston pump, so that the paint in the machine to form high-pressure spray, the drawing lines are uniform thickness, gun rack and guide Rod lift design, to adjust the spray width, with low labor intensity,It with fast and convenient features.
|
Engine
|
6.5HP Honda
s
/ Zongshen
|
|
Marking line range
|
8-25cm
|
|
Max work pressure
|
8-16MPA
|
|
Max marking line speed
|
130m/min
|
|
Support spray nozzle (inch)
|
1708 417 517
|
|
Flow
|
3.8L/M
|
|
Dimension
|
1.12*0.79*0.95
|
|
Weight
|
60kg
|
Product Advantage
1.The line paint by this machine with uniform thickness
2.It can adjust spray width accoring to your requirements
3.It will low labor intensity, the construction of fast and convenient features.
4.Use the DC brushless motor sealing ,it is easy and low maintenance cost .
5.Use shock-absorbing tires to ensure that the spray gun does not shake
6.Our machine sprayed linear straight, no burrs
Product Details
Gasoline engine
Pump
In generally, we use the diaphragm pump. It ensures continuous operation of the marking machine, high efficiency, easier maintenance.If you need, we can provide pistopn pump.
Handle and Damping system
Left handle control the direction, if you change the direction,please pinch the handle, if control same direction,just release the handle.Right handle control the spray.
It including 3 pneumatic tire and 4 pieces damping block,that can ensure the line very beautiful, also ensure stable machine performance.
Spraying system
One nozzle,line width 8-25cm .
It can adjust spray width accoring to your requirements
Product Application
HonorMach Cold spray road line marking machine
is widely used in roads, bridges, railways, factories (within), coal mines, car parks, city markets and airports run inside.
