Quick Details
-
Drilling Speed:
-
210~2220/220~3320rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
ZJQ5116
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1110*450*275 mm
-
Power (kW):
-
0.375
-
Weight (KG):
-
58 KG
-
Marketing Type:
-
New Product 2022
-
Name:
-
ZJQ5116 high speed bench drilling tapping machine 16mm
-
Spindle taper:
-
MT2
-
Max Drilling Diameter:
-
16mm(5/8'')
-
Motor Power:
-
375/450/550w
-
Chuck Capacity:
-
3-16mm
-
Spindle Travel:
-
80mm
-
Class Of Speed:
-
16
-
Speed50/60Hz:
-
210~2220/220~3320rpm
-
Swing:
-
325mm
-
Table Size:
-
290*290mm
Quick Details
-
type:
-
Column Drilling Machine
-
Max. Drilling Dia. (mm):
-
16 mm
-
Range of Spindle Speed(r.p.m):
-
210 - 3320 r.p.m
-
Drilling Speed:
-
210~2220/220~3320rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
ZJQ5116
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1110*450*275 mm
-
Power (kW):
-
0.375
-
Weight (KG):
-
58 KG
-
Marketing Type:
-
New Product 2022
-
Name:
-
ZJQ5116 high speed bench drilling tapping machine 16mm
-
Spindle taper:
-
MT2
-
Max Drilling Diameter:
-
16mm(5/8'')
-
Motor Power:
-
375/450/550w
-
Chuck Capacity:
-
3-16mm
-
Spindle Travel:
-
80mm
-
Class Of Speed:
-
16
-
Speed50/60Hz:
-
210~2220/220~3320rpm
-
Swing:
-
325mm
-
Table Size:
-
290*290mm
Product Description

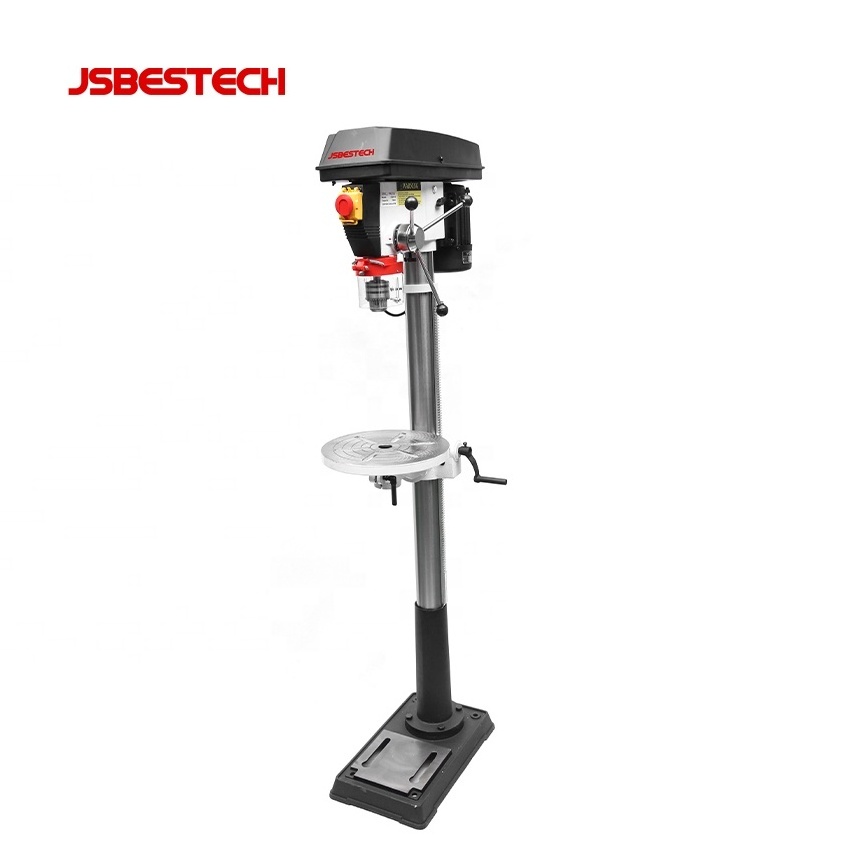

13-inch(16mm) Floor Drill Press
MODEL:ZJQ5116
5/8’’(16mm) Max.Chuck Capac
ity
13’’(325mm) Swing
16 Spindle Speeds
-45°~0°~+45° Table Tilt L&R
Optional Chuck Guard And Micro-switch
For CE Requirement
|
Model
|
ZJQ5116
|
|
Max Drilling Diameter
|
Φ16mm(5/8'')
|
|
Motor Power
|
375/450/550w
|
|
Chuck Capacity
|
3-16mm
|
|
Spindle Travel
|
80mm
|
|
Class Of Speed
|
16
|
|
Speed50/60Hz
|
180-2770/220-3320rpm
|
|
Spindle Taper
|
MT2
|
|
Max distance from spindle axis to surface of column
|
162.5mm
|
|
Max distance from spindle end to surface of table
|
725mm
|
|
Max distance from spindle end to surface of base
|
1205mm
|
|
Swing
|
325mm
|
|
Table Size
|
290mm
|
|
Base Size
|
460×270mm
|
|
Column Diameter
|
Φ72mm
|
|
Height
|
1580mm
|
|
Net Weight/ Gross Weight
|
55/58kg
|
|
Packing Size
|
1140×450×275mm
|
|
STANDARD ACCESSORIES
|
OPTIONAL ACCESSORIES
|
|
Gear rim drill chuck(5-20mm)B16
|
Keyless drill chuck
|
|
Morse taper MT3
|
Machine vice
|
|
Front switch
|
Micro switch
|
|
Wrench set
|
Laser
|
|
Drill Chuck
|
Machine lamp
|
|
Drill chuck guard
|
|
Product packaging
