Quick Details
-
Warranty:
-
1 year, 12 Months
-
Brand Name:
-
SEKO
-
Model Number:
-
KOMPACT AMM
-
Place of Origin:
-
Shanghai China
-
Horsepower:
-
14W
-
Outlet Size:
-
4/6
-
Power:
-
14w, Electric
-
Material:
-
PVDF
-
Flow:
-
1--9 L/h
-
pressure:
-
2--10 bar
-
Certificate:
-
CE Certificate
-
Certification:
-
ce
Quick Details
-
Application:
-
Drinking water treatment, Water Treatment Solutions
-
Pressure:
-
2--10 bar
-
Voltage:
-
100-240V,50-60Hz
-
Warranty:
-
1 year, 12 Months
-
Brand Name:
-
SEKO
-
Model Number:
-
KOMPACT AMM
-
Place of Origin:
-
Shanghai China
-
Horsepower:
-
14W
-
Outlet Size:
-
4/6
-
Power:
-
14w, Electric
-
Material:
-
PVDF
-
Flow:
-
1--9 L/h
-
pressure:
-
2--10 bar
-
Certificate:
-
CE Certificate
-
Certification:
-
ce
Kompact serices

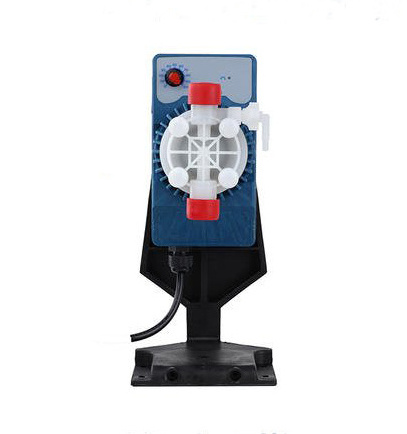

Simple solenoid dosing pump, operating with a micro-processor to manage the dosing.
Dosing Mode
The pump head has a manual priming valve. The flow rate is manually or automatically (by signal input) adjustable from 0 (pump stop) to 100% of the max flow rate.
Graphic display and Keypad
Kompact digital is programmable via keypad and 2 line x 8 digits backlighted display
Wall-mounted
Kompact pump can be fixed on wall by fixing bracket provide with the pump or top of drums by the optional foot fixing bracket.
Reliability
The diaphragm has been tested over a period of 5 years and
Its external enclosure has an IP65.
|
AMS
|
|
Constant flow rate manually adjustable by control dial on the front panel, Power-ON led indicator.
|
|
|
||
|
AML
|
|
Constant flow rate manually adjustable by control dial on the front panel, two flow rate range:
0÷20% with switch in P position
0÷100% with switch in C position
|
|
|
||
|
AMC
|
|
Constant flow rate manually adjustable, proportional flow rate according to a digital pulse
signal (e.g. from water meter), Power-ON led indicator and level control input.
|
|
|
||
|
AMM
|
|
Constant flow rate manually adjustable, proportional flow rate according to an external analogue signal (4÷20 mA), Power-ON led indicator and level control input.
|
|
|
||
|
Model
|
Flow rate
[l/h]
|
Pressure
[bar]
|
Connections
IN / OUT [mm]
|
Frequency max
[stroke/min]
|
Weight
[Kg]
|
Packing size
L*W*H [mm]
|
|
200
|
5
|
8
|
4/6
|
160
|
2.4
|
285x185x180
|
|
|
3
|
10
|
|
|
|
|
|
|
9
|
2
|
|
|
|
|
|
201
|
1
|
7
|
4/6
|
160
|
2.4
|
285x185x180
|
