Quick Details
-
Voltage:
-
220v or 380v or customized
-
Dimension(L*W*H):
-
as detailed model
-
Warranty:
-
1 Year
-
Application:
-
wood cutting
-
Weight (KG):
-
1500 KG
-
Core Components:
-
machine
-
Name:
-
portable swing circular saw
-
Max. cutting wood diameter:
-
700 mm - 2000 mm
-
Spindle speed:
-
2800r/min
-
Max. Saw - cut dimensions:
-
210 mm * 300 mm
-
Saw Blade diameter:
-
424 mm - 760 mm
-
Saw Blade Quantity:
-
2-10 pieces
-
Keywords:
-
double blade angle sawmill
-
Weight:
-
1500 kg - 2500 kg
-
type:
-
one vertical blade and one horizontal blade
-
Power(W):
-
7.7 kw - 18.5 kw
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Certification:
-
ISO9001-2008
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
sawmillworld
-
Usage:
-
cutting wood
-
Voltage:
-
220v or 380v or customized
-
Dimension(L*W*H):
-
as detailed model
-
Warranty:
-
1 Year
-
Application:
-
wood cutting
-
Weight (KG):
-
1500 KG
-
Core Components:
-
machine
-
Name:
-
portable swing circular saw
-
Max. cutting wood diameter:
-
700 mm - 2000 mm
-
Spindle speed:
-
2800r/min
-
Max. Saw - cut dimensions:
-
210 mm * 300 mm
-
Saw Blade diameter:
-
424 mm - 760 mm
-
Saw Blade Quantity:
-
2-10 pieces
-
Keywords:
-
double blade angle sawmill
-
Weight:
-
1500 kg - 2500 kg
-
type:
-
one vertical blade and one horizontal blade
-
Power(W):
-
7.7 kw - 18.5 kw
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Showroom Location:
-
None
-
Certification:
-
ISO9001-2008

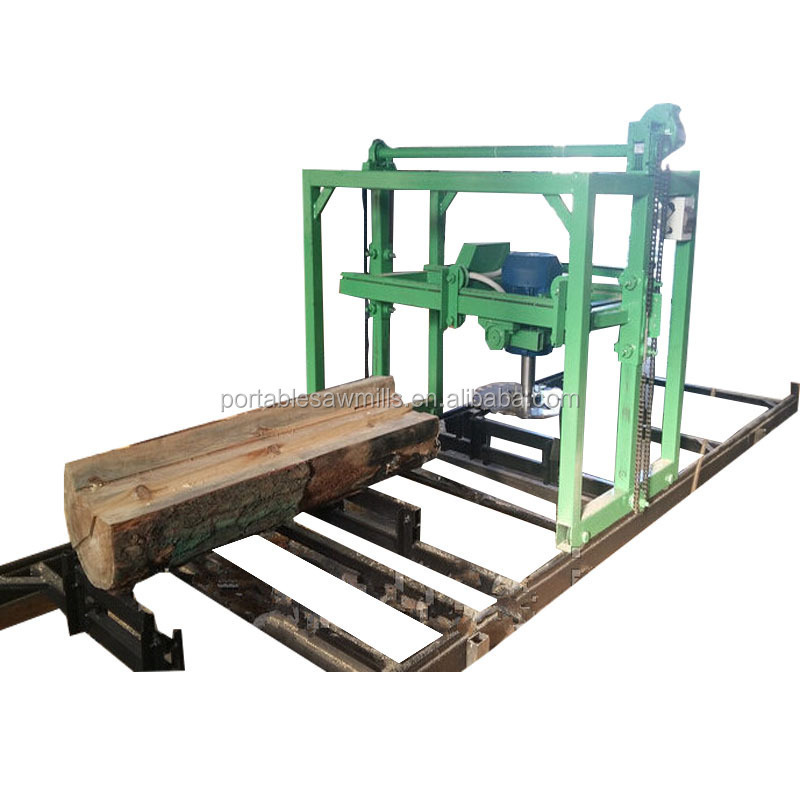

Double Blades Circular Sawmill Machine
|
Technical parameters
|
DS700
|
DS1300
|
DS2000
|
|
Max. cutting wood diameter
|
700mm
|
1300mm
|
2000mm
|
|
Max. Saw-cut dimensions
|
150mm * 150 mm
|
210mm * 210 mm
|
210mm * 300 mm
|
|
Saw blade diameter
|
2x424mm
|
2x546mm
|
546mm,760mm
|
|
Main electric motors power
|
2*7.5 kW , 3*1.1kW
|
2*15 kW , 3*1.1kW
|
2*18.5 kW , 3*1.1kW
|
|
Processable log length
|
6000mm
|
6000mm
|
6000mm
|
|
Machine weight
|
1500kg
|
2000kg
|
2500kg
|
Multi Chip Saw for Board
Wood Planks Production Line
Shandong Shuanghuan Machinery Limited
Establish in 1985, we specialize in research & development, production, sales of sawmills and the relevant fittings.
Besides China, we have expended our footprints and business to over 60 countries and areas around the world.
We invite worldwide distributors to join us and hope sincerely that our cooperation will bring a win-win development.
Honesty and utter dedication is who we are. Top-notch service is what we do. High-quality machines are what we provide to you. Sincerity, ethics and responsibility are what we believe in. We work towards one goal and one goal only your satisfaction and we will stick to out commitment amidst fierce competition.
